Diesel W-1.8/5 Piston Air Compressor

Diesel W-1.8/5 Piston Air Compressor thumbnail-1
Diesel W-1.8/5 Piston Air Compressor thumbnail-2
Diesel W-1.8/5 Piston Air Compressor thumbnail-3
Diesel W-1.8/5 Piston Air Compressor thumbnail-4
Diesel W-1.8/5 Piston Air Compressor thumbnail-5
Diesel W-1.8/5 Piston Air Compressor thumbnail-6
Diesel W-1.8/5 Piston Air Compressor photo-1

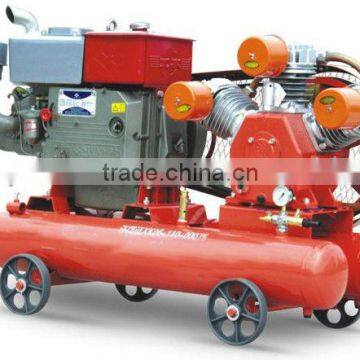

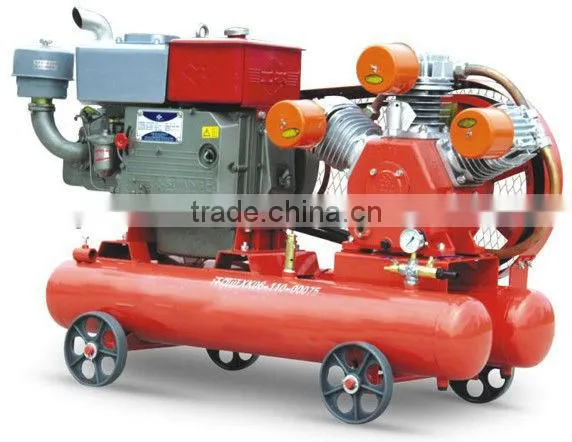

Diesel W-1.8/5 Piston Air Compressor photo-2

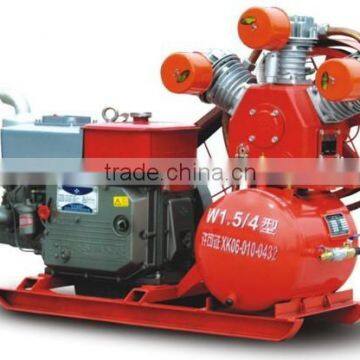

Diesel W-1.8/5 Piston Air Compressor photo-3

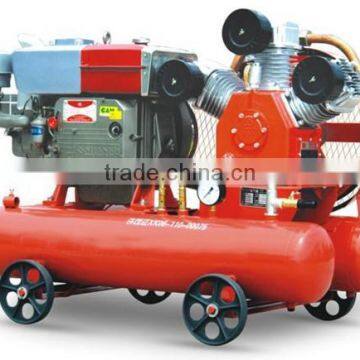

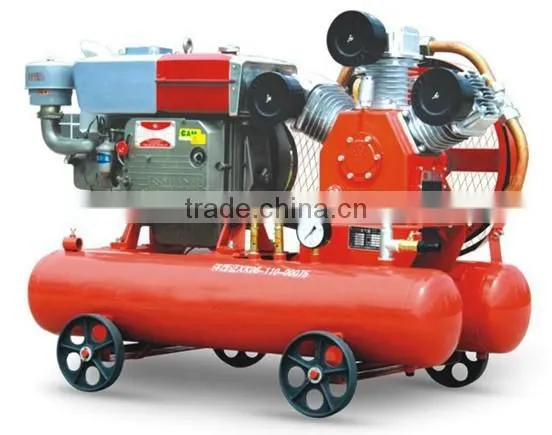

Diesel W-1.8/5 Piston Air Compressor photo-4

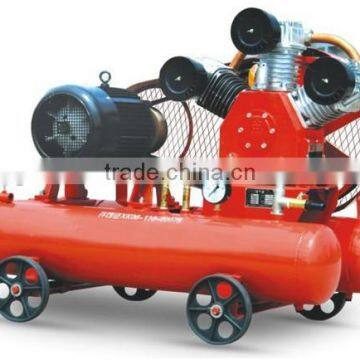

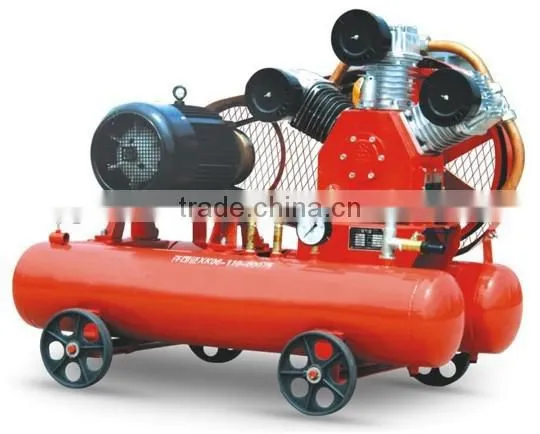

Diesel W-1.8/5 Piston Air Compressor photo-5

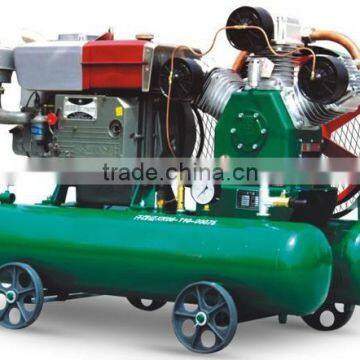

Diesel W-1.8/5 Piston Air Compressor photo-6
US$ 50 - 300 MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Contact Supplier Request Quote Chat Now
Fuzhou Golden Moral Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Piston
Configuration Portable
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Fujian, China
Brand Name GM
Model Number Diesel W-1.8/5 Piston Air compressor
Voltage Customer's Requirement)
Dimension(L*W*H) 1300*800*1115mm
Weight 550kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

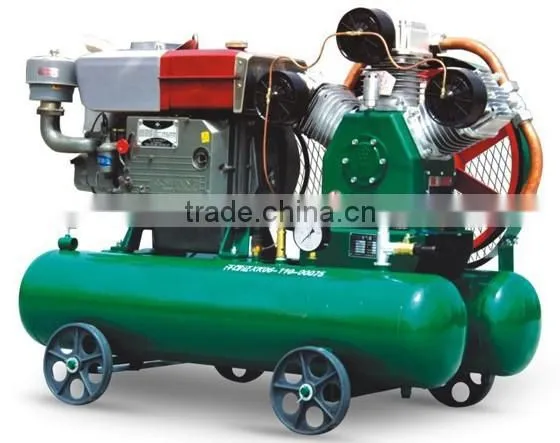

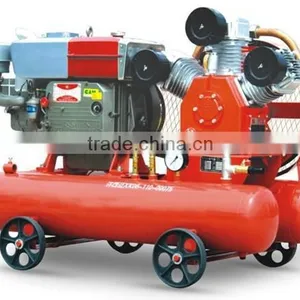

 Diesel W-1.8/5 Piston Air compressor

Diesel W-1.8/5 Piston Air compressor

 The piston air compressor made of special steel form sweden and after special treatment,high efficient and reliable.

special design for piston ring,Integral casting,excellent flexiblity,lowest lubricating oil consumption.

Cylinder made of boron cast iron,wear resistant,special suitable for dusty condition.

Crankshaft made from ductile cast iron,rare magnesium alloy after heat treatment and surface quenching,excellent performance.

simple structure,light weight,easy to move,easy operating and maintenance.energy saving low cost.

Specification:

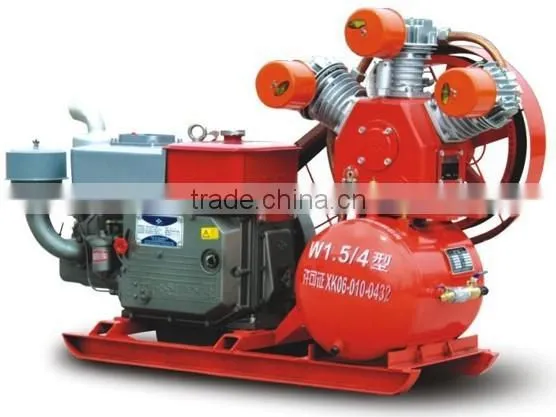

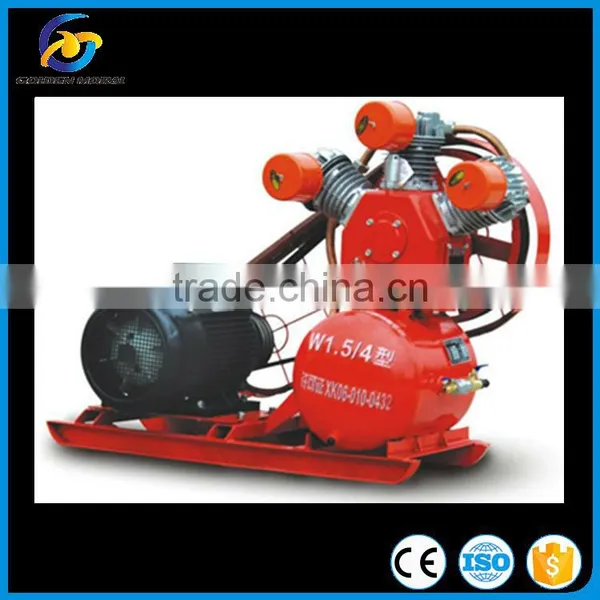

Model W-1.5/4 Diesel W-1.5/4 Electric W-1.8/5 Diesel W-1.8/5 Electric W-2.8/5 Diesel W-2.8/5 Electric W-3.0/5 Diesel W-3.0/5 Electric 2V-3.5/5 Diesel 2V-3.5/5 Electric W-3.2/7 Diessel W-3.2/7 Electric
Cylinder 3×90mm  3×90mm  3×100mm  3×100mm  3×115mm  3×115mm  3×120mm  3×120mm  4×115mm 4×115mm 3×125mm  3×125mm
Rotary speed 1180rpm 1180rpm 1000rpm 1000rpm 1070rpm 1070rpm 1070rpm 1070rpm 970rpm 970rpm 1100rpm 1100rpm
Exhaust Volune 1.5m3/min 1.5m3/min 1.8m3/min 1.8m3/min 2.85m3/min 2.85m3/min 3m3/min 3m3/min 3.5m3/min 3.5m3/min 3.2m3/min 3.2m3/min
Exhaust pressure 0.4Mpa 0.4Mpa 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa 0.7Mpa 0.7Mpa
Storage tank 40L 40L 130L 130L 160L 160L 200L 200L 250L 250L 230L 230L
Engine S195(12HP) Y160M(11kw) S1100(15HP) Y160M1-2(11kw) S1110(18HP) Y160M2-2(15kw) S1115(22HP)  Y160M2-2(15kw) ZS1125(25HP)  Y200L1-6(18kw) $1125,25HP 18.5KW
Net weight 305kg 305kg 325kg 325kg 465kg 465kg 530kg 530kg 650kg 650kg 550kg 550kg
Gross weight 340kg 340kg 365kg 365kg 515kg 515kg 590kg 590kg 720kg 720kg 600kg 600kg
Size(L×W×H) 1500×620×1020mm 1500×620×1020mm 1540×640×1030mm 1540×640×1030mm 1710×860×1215mm 1710×860×1215mm 1710×860×1245mm 1710×860×1245mm 1995×950×1200mm 1995×950×1200mm 196×90×125mm 196×90×125mm
