Air-cooling Freeze Dryer
US$ 1 - 399
MOQ: 1 Sheet
Key Specifications
Get Latest Price
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Piston Air Compressor KBUS$ 1 - 399MOQ: 1 Set -
Piston Diesel Air Compressor for Sale W-1.5/4US$ 1 - 399MOQ: 1 Set
-
Diesel Portable Air Compressor W-1.8/5DUS$ 10 - 399MOQ: 1 Set
-
Piston Air Compressor W-1.8/5 ElectricUS$ 1 - 399MOQ: 1 Set
-
Piston Air Compressor W-2.8/5 ElectricUS$ 1 - 399MOQ: 1 Set
Condition
New
Type
Freeze Drying Equipment
Place of Origin
Fujian, China
Brand Name
GM
Voltage
340V
Certification
CE
Warranty
one year
After-sales Service Provided
Overseas third-party support available
Specifications
Air-cooling freeze dryer1. Capacity NM3/min:13.50
2.Power of compressor (HP):3.5

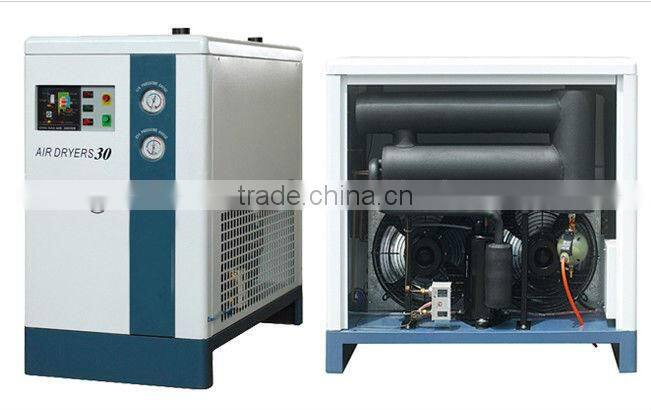

Air-cooling freeze dryer
Use of freeze-dryer physical principle, the compressed air chilled to below the dew point of water, so that precipitation of the air from the air dryer. Limited by the freezing point of water, in theory, its dew point temperature can be close to 0 degrees, the actual situation, a good freeze dryer dew point temperature is generally about 5 degrees. Imported Hankison refrigerated compressed air dryer dewpoint generally able to achieve this requirement.
| Model | HD-7.5A | HD-10A | HD-15A | HD-20A | HD-30A | HD-50A | HD-75A | HD-100A | HD-150A | HD-200A |
| Air flow | 1 | 1.5 | 2 | 2.5 | 3.8 | 6.5 | 9 | 13.5 | 20 | 28 |
| Max Operating Condition | A,inlet temperature<80°C B,environmental temperature<45°C C,air pressure:6-10bar | |||||||||
| Dew point temperature | 1.7°C-5°C | |||||||||
| Refrigerant type(HP) | R-22 | |||||||||
| Refrigerant compressors(HP) | 1/4 | 1/3 | 1/2 | 1 | 1--1/2 | 1--3/4 | 3 | 3 | 5 | 5 |
| Power | 220V 50/60HZ | |||||||||
| Air In-Outlet dia. | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 3″ | 4″ |
| Length(mm) | 530 | 630 | 750 | 750 | ### | 1050 | # | 1150 | 1200 | 1500 |
| Width(mm) | 380 | 450 | 480 | 480 | 500 | 600 | # | 650 | 650 | 680 |
| Height(mm) | 660 | 700 | 780 | 830 | 910 | 690 | # | 1270 | 1270 | 1300 |
