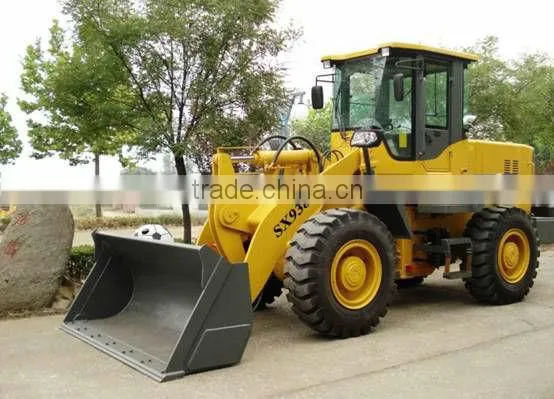

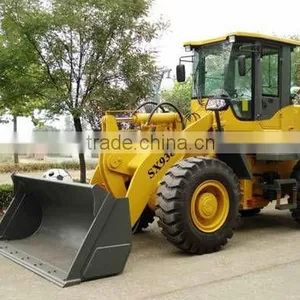

Help CenterSX938 Wheel Loader ,3Ton ,Bucket Capacity:1.8cbm
Related Products
-
Cheap 3t Chinese Wheel Loader ,SX935 Front End Wheel Loader for SaleUS$ 1 - 26,000MOQ: 1 Unit -
Hot Sale 2-ton Mini Wheel Loader With 1.1 Cube Meter BucketNegotiableMOQ: 1 Unit
-
SX915 1.5T Front End Wheel Loader ,1.5Ton ,Bucket Capacity:0.7 CbmUS$ 1 - 10,000MOQ: 1 Unit
-
SX912 1.2t Front End Wheel Loader ,1.2Ton ,Bucket Capacity:0.6 CbmNegotiableMOQ: 1 Unit
-
SXM610 Construction Machine 1.0T Mini LoaderUS$ 10,700 - 11,000MOQ: 1 Set
Specifications
*CE Approved*3.0ton Wheel loader
*Reliable Quality
*Favorable Price
*Weichai diesel engine, higher power.u
*Hydrodynamic transmission, there-element and single stage torque converter, high reliability, easy maintenance.
*Hangzhou advance gearbox group BS428 power shift transmission.High efficiency and easy maintenance.
*Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
*Single lever pilot control system ,comfortable and flexible operation.
*Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.
*Air over hydraulic disk brake system.
*Working device with automatically leveling ability at high position.
*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
*Integral, luxury instrument board.
*New, luxury cabin.
Items |
Specifications |
Items |
Specifications |
Rated capacity |
1.8m3 |
Min turning radius |
5160mm |
Rated weight |
3000kg |
Total cycle time(lifting, dumping, lowering) |
10s |
Operating weight |
10200kg |
Overall dimensions (l×w×h)mm |
6910×2510×3100 |
Max breakout force |
120KN |
Engine |
|
Max drawing force |
90KN |
Model |
TD226B |
Max grade ability |
30° |
Rated power |
92KW |
Max.dump height |
3000mm |
Rated rotation speed |
2300r/min |
Max.dump reach |
1100mm |
Max travel speed |
38km/h |
Min.ground clearance |
375mm |
Tire |
|
Wheel base |
2700mm |
Size |
17.5-25 |
Tread |
1800mm |
steering angle |
35°±1 respectively left/right |
Lifting time |
5.5s |
