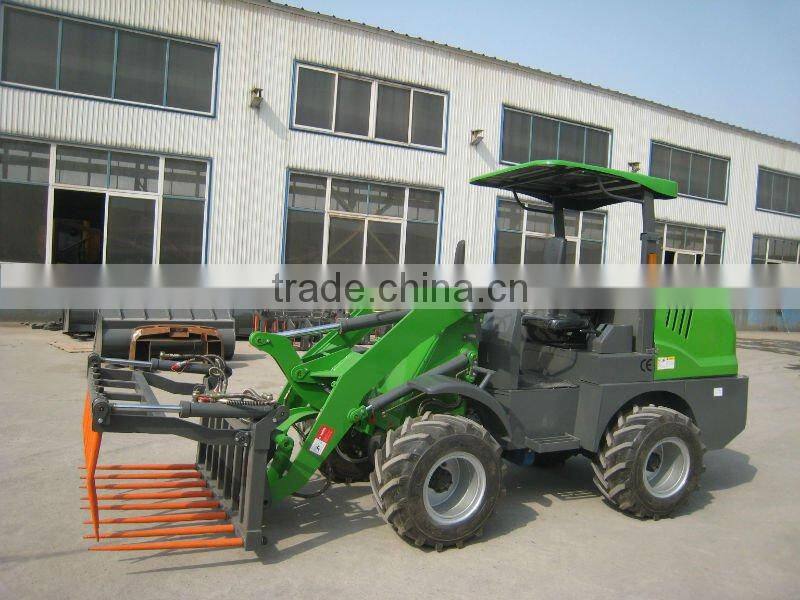

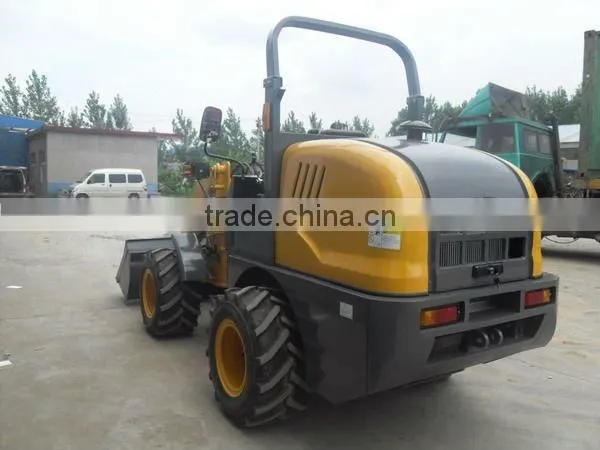

SXM610 Construction Machine 1.0T Mini Loader

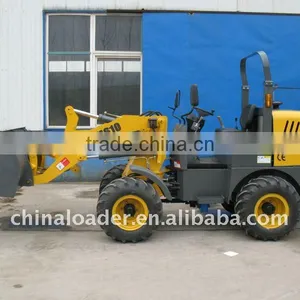

SXM610 Construction Machine 1.0T Mini Loader thumbnail-1

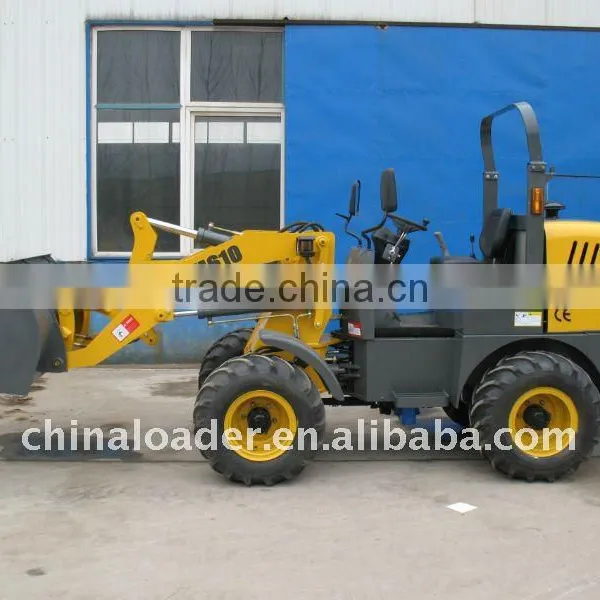

SXM610 Construction Machine 1.0T Mini Loader photo-1
US$ 10,700 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SENXIN WHEEL LOADER
Model Number:
SXM610
Contact Supplier Request Quote Chat Now
Shandong Senxin Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SENXIN WHEEL LOADER
Model Number SXM610
Place of Origin Shandong, China
Type Mini Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 4450*1430*2370
Rated Load 1000kgs

Specifications

1.mini loader, easy-operation,
2.many optional working equipment.

 SXM610 construction machine 1.0T mini loaderSXM610 construction machine 1.0T mini loaderSXM610 construction machine 1.0T mini loader

1. SXM610 small wheel loader uses the inline. Direct injection, water-cooled, four-stroke engine with excellent cod start performance. Powerful energy. Reliable function and efficient energy saving.

2. Full hydraulic drive system. Low consumption drive. Stable and simple operation, 2 gear hydraulic variable speed changes.

3. The streamline design makes the appearance attractive and modern.

4. The driving cab uses hardened molding glass with broad view and more safe.

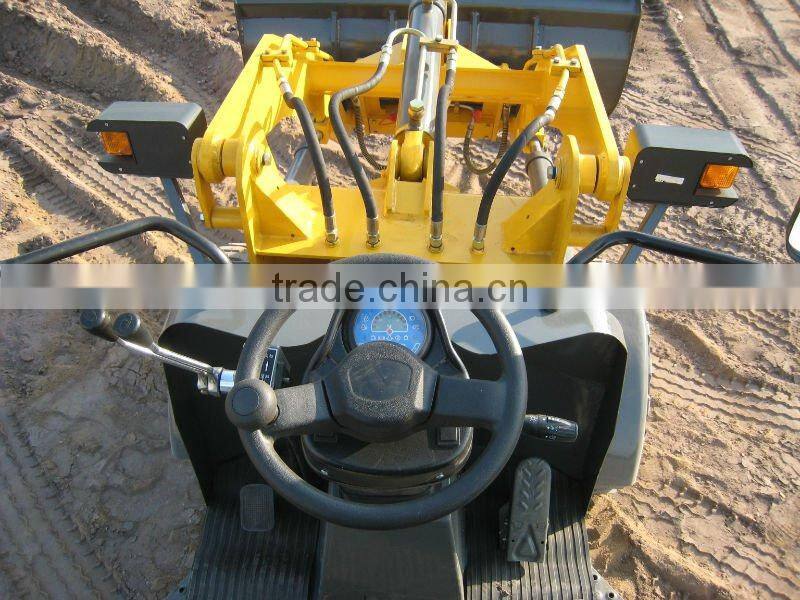

5. SXM610 small wheel loader has flexible link and is equipped with new dashboard and adjustable steering column. Which can reduce vibration and make the operation convenient and comfortable.

6. SXM610 small wheel loader has quick change system. Can change the front part very fast.

7. Hydraulic brake system, Drum brake.

8. Manual quick change system. Very easy. One man can operate.

Rated load

1000kg

Bucket capacity

0.5m3

Unload height

2262mm

Unloading Clearance

741mm

Max tractiv force

35kN

Kerb weight

2690kg

Turning Angle

35°

Mini Turning Radius

3879 mm

Ground Clearance mm

240 mm

Engine

XINCHAI EURO III, B490BPG, diesel, 4 cylinders, direct injection,32.4 kW/2400rpm, displacement 2.54l.OPTION Yanmar EURO III, 4TNV-88-BS, diesel, 4 cylinders, direct injection,25.2 kW/34.3HP/2200rmp, displacement 2.19l

Transmission

Hydrostatic transmision . 4WD Fully hydraulic drive .2 gear hydraulic variable speed changes

Speed



Forward I

0 - 7 km/h

Forward II

0 - 24 km/h

Reverse I

0 - 7 km/h

Reverse II

0 - 24 km/h

Working Hydraulic Pressure

22Mpa

Lifting time

4s

Lowering time

3.5s

Three cycle time

9s

Tyres

10.0-16.5 (optional 12.0-16.5, 16.5/70 tractive)

(Length*width*height)mm

4450/1430/2370

track base

1160 mm

wheel base

1710 mm
