Specifications
1.adopts JiangSu SiDa four cylinder engine2.full hydraulic transmission technology
3.load sensing fully hydraulic system

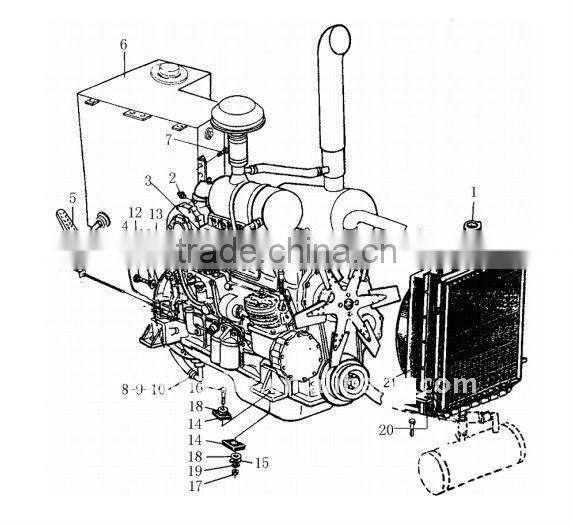

1.small loader adopts JiangSu SiDa four cylinder engine;
2.Full hydraulic transmission technology, simple structure and reliable performance;
3.Separate loader flow of single pump for operation hydraulic system, significant effect of energy conservation;
4.Double sealing hydraulic pipeline joint small loader with international standard of 24°awl and Oring, solved leakage problem of oil;
5.Load sensing fully hydraulic steering system, easy and flexible operation;
6.Safe and reliable single pipeline brake system, disk type brake;
7.small loader In the nature of operation system with automatic lay flat performance at height;
8.Hinge joint part of bucket adopts dust prevention sealing and lubricating structure;
9.small loader unitary and luxury dashboard;
Item |
Specifications |
Item |
Specifications |
Bucket capacity |
0.5 m3 |
Min. turning radius(outside of rear wheels) |
3600mm |
Rated load |
1000 kg |
steering angle |
L/R 35º |
Dumping height |
2420 mm |
Min. ground clearance |
230mm |
Dumping reach |
900 mm |
Wheel base |
1820mm |
Boom lifting time |
4 S |
Tread |
1400mm |
Total cycling time |
8 S |
Engine model |
SD490G |
Max. speed |
16km/h |
Rated power |
33kW/2400rpm |
Max. breakout force |
36 kN |
Tyre |
8.25-16 |
Max. drawing force |
22kN |
Overall dimensions |
4960*1620*2420mm |
Max. Gradeability |
28° |
Operating weight |
2990kg |
