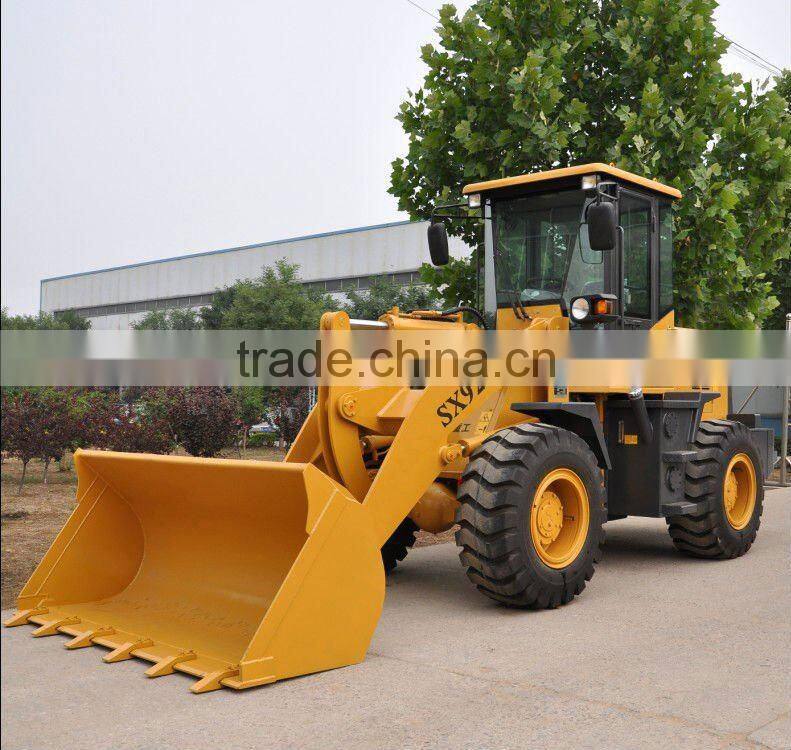

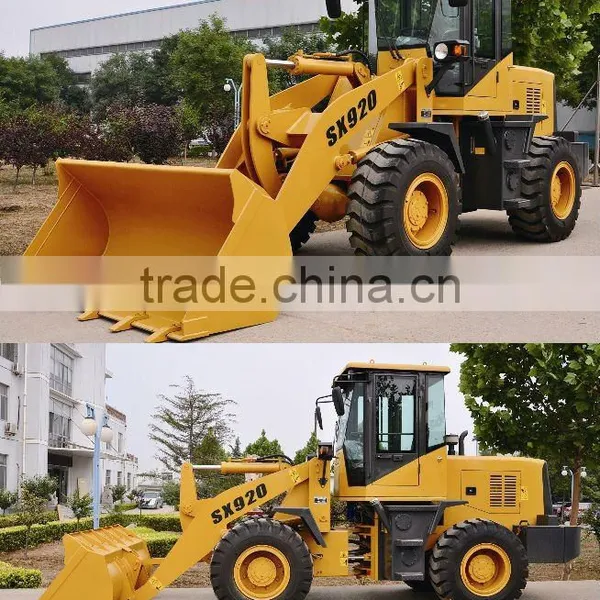

Help CenterChina SX920 (1.1CBM,2.0Ton Capacity,CE Approved )Mini/compact Front Loader
Related Products
-
China OEM SX912 1.2T Small Wheel Loader With High QualityUS$ 9,500 - 9,800MOQ: 1 Set -
China Senxin SX910 1.0T Small Wheel Loader With CEUS$ 9,500 - 9,800MOQ: 1 Set
-
China Senxin SX910 1.0T Mini LoaderUS$ 9,500 - 9,800MOQ: 1 Set
-
China SX915 1.5T Skid Steer LoaderUS$ 9,500 - 9,800MOQ: 1 Set
-
SENX SX918 1.8T Wheel Loader (zl18 CE Approved)US$ 16,000 - 19,000MOQ: 1 Set
Specifications
YTO diesel engine is adopted, with strong powerApplying hydrodynamic transmission technology
SX920 WHEEL LOADER PARAMETER
1.YTO diesel engine is adopted, with strong power.
2.Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.
3.Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
4.Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
5.Double sealed hydraulic pipeline joints with 24awl and O ring of international standard, avoiding oil leakage
6.Load sensing fully hydraulic steering system makes operation easy
7.Air over hydraulic brake system; Caliper disc brakes
8.Working device with automatically leveling ability at high position
9.Bucket articulated points take sealed, lubricated, dustproof layers, which owns good durability
10.Integral, luxury instrument board.New, luxury cabin
Items |
Specifications |
Items |
Specifications |
Bucket capacity |
1.1 m3 |
Min. turning radius |
4600mm |
Rated load |
2000 kg |
(outside of rear wheel) |
|
Dumping height |
2750 mm |
Steering angle |
35º each direction |
Dumping reach |
920 mm |
Min. ground clearance |
320mm |
Bucket lifting time |
5 S |
Wheel base |
2350mm |
Total cycle time |
9 S |
Tread |
1500mm |
(lifting+ dumping+ lowering ) |
|
Engine model |
LR4018G |
Max. travel speed |
25km/h |
Rated engine power |
60kW@2400rpm |
Max. breakout force |
55 kN |
Tire |
16/70-20 |
Max.drawing force |
45 kN |
Overall dimensions (L*W*H) |
5880*2060*2750mm |
Max. grade ability |
30° |
Operating weight |
6000kg |
