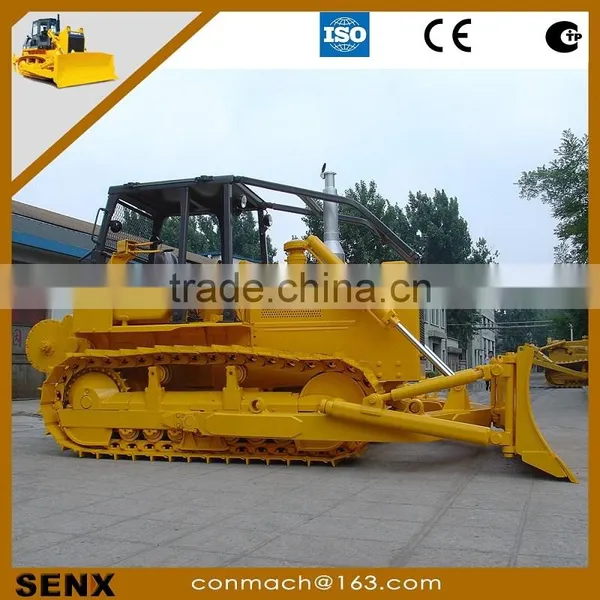

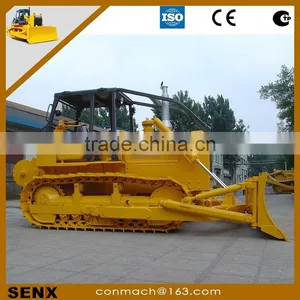

Forest Working T180F Crawler Bulldozer for Sell , Winch Optional

Name: Forest Working T180F Crawler Bulldozer for Sell , Winch Optional
Brand: SENX
Availability: InStock

FOB Price

US$ 70,000 - 90,000 / Unit

1 Unit(Min. Order)

Port SHANGHAI TIANJIN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	SENX
Model Number	T180F	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	17900kg
Dimension(Long * Breadth * High)	5360x3970x3063	After-sales Service Provided	Overseas third-party support available

Product Description

Item name : Forest working T180F Crawler bulldozer for sale ,winch optional .

Operating weight :17900KGS

Engine : SHANGCHAI / WEICHAI / NT855 .

BULLDOZER FOR SALE / SHANTUI BULLDOZER / CHINESE BULLDOZER

T180F BULLDOZER

AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE

SPECIFICATION

Specification/Blade type Straight-tilt Angle U-Blade

Operating Weight (kg) 17900 18200 18500

Min.Ground Clearance (mm) 400 400 400

Min.Turning Radius (m) 3.3 3.3 3.3

Ground Pressure (MPa) 0.065 0.066 0.066

Track Gauge (mm) 1880 1880 1880

Track Gauge (mm) 147.2 147.2 147.2

Grade Ability (°) 30 30 30

TRAVEL SPEED

1st 2nd 3rd 4th 5th

Forward (km) 2.6 3.5 4.7 7.0 10.3

Reverse (km) 3.3 4.5 6.1 9.1

ENGINE

Model & Type...............Cummins NT855-C280S10/ Shangchai SC11CB200G2B1/ Weichai WD10G200E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection

Rated Revolution (rpm) ......................................................... 1850

Flywheel Horsepower (HP) .................................................... 180

Cummins:6-139.7X152.4

Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X152.4

Weichai:6-126X130

Piston Displacement (L) Cummins:14 Shangchai:10.5 Weichai:9.73

Min. Fuel Consumption (g/kW.h)........................Cummins:212 Shangchai:220 Weichai:218

Max.Torque (Nm/rpm).................................Cummins:877/1250 Shangchai:870/1200 Weichai: 920/1100

Starting Method....................................Starting motor 24V 7.5kW

TRANSMISSION SYSTEM

Main Cluch.................. Wet , multiple-disc, with cut-off brake. hand-manipulated and hydraulic boosted

Transmission.................. Bevel gear, constant meshed, forced lubrication, hand-manipulated,5 forward and 4 reverse speeds

Bevel Gear.....................Spiral bevel gear, splash lubrication, single-stage speed reduction

Steering Clutch......... Wet, multi-disc, spring loaded,hydraulically separated, hydraulic control

Steering............Brake Wet, band type, pedal hydraulic booster, with parking brakes

Final Drive...... Double reduction of spur gear, splash lubrication

HYDRAULIC SYSTEM

Pump Type................................................Gear pump 07441-67503

Working Pressure (MPa)..............................................................13.7

System Discharge (L/min)............ 250(at revolution of 1850rpm)

Working Cylinder type........................... Double-acting piston type

Working Cylinder Lift Number-BoreXRodXStroke (mm)................ 2-110X65X1026

Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140

UNDERCARRIAGE SYSTEM

Type ............................. Swing type of sprayed beam, suspended structure of equalizer bar

Carrier Rollers..............................................................2(each side)

Track Rollers..7/each side (4-single flange, 3-double flange)

Track Type............................. Sealed, assembled single- grouser

Number Of Track Shoes............................................ 39(each side)

Width Of Track Shoes (mm) ...................................................... 510

Pitch (mm) ................................................................................... 203.2

Length Of Track 0n Ground (mm)............................................2635

Packaging & Shipping

Our Services

Our services : Provide good quality machinery in China and spare parts for your machines from China . transmission 4WG200/6WG200 and parts,Hanzhou Advance(Hanchi advacne) 4WG180/6WG180, Weichai ,Yuchai ,Shangchai Engine & Parts.All SDLG parts are available and fast delivery in China.
