1kw-1200kw High Efficiency Hydro Electric Generator
1: low speed transport out 50Hz
2: Power range: 2.5-1200kw
3: Speed range: 30-3000 rpm
4: design and produce according to the power, speed, frequency that you need.
Specification of Hydro Generator
1.Good Quality Medium and Small Hydro Power Generator / water turbine generator Unit with range
20kw-200MW per unit;
2.Offer all types of generators, turbines, hydropower equipment, complete set of hydropower and other power plants, etc.
3.Equipments would be produced according to your request.
4.Engineers for erection and commission at hydropower plant are available.
5.There should be some key parameters (such as head, flow discharge and capacity, if need turbine generator too,
please supply the frequency and output voltage, if not, give us the rotation speed) in inquiry.
Note: Royway can design and manufacture various types of hydro generator units with 0.42-7m in turbine
runner diameter and 20KW-200MW in unit capacity.

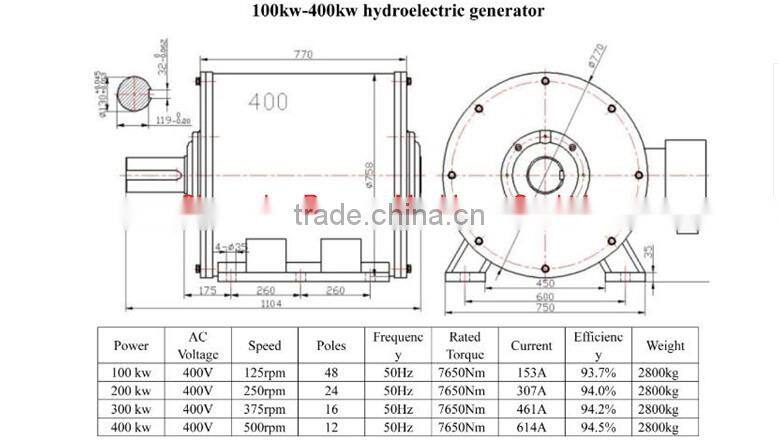

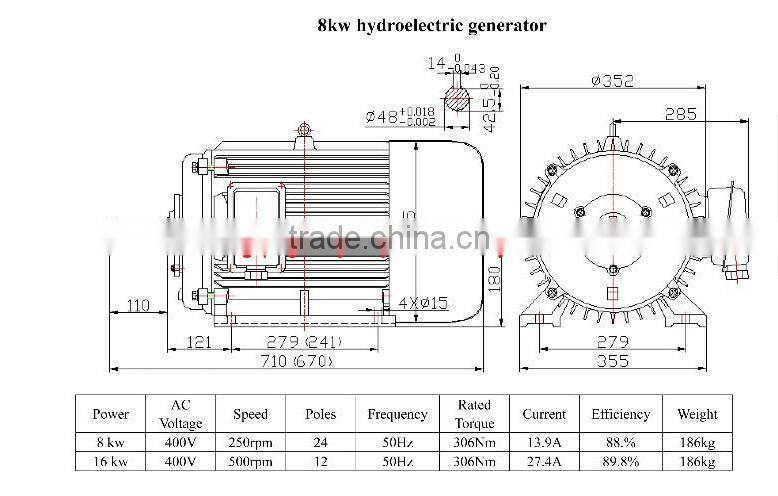

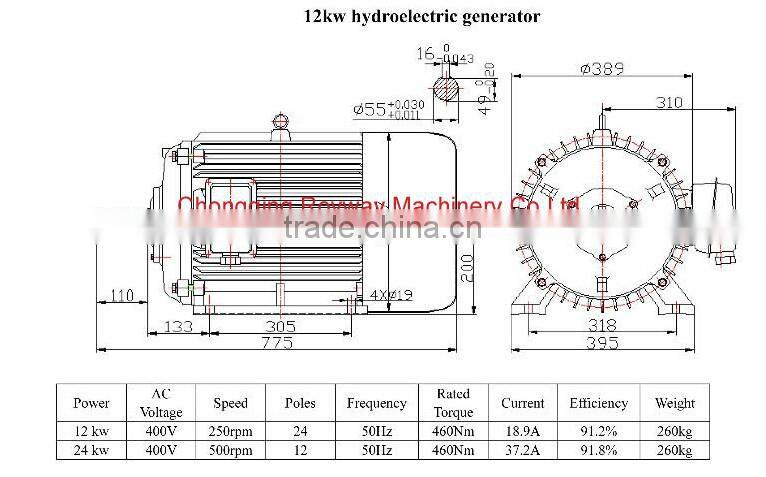

Technical Parameters of micro hydro generator
Why choose Chongqing Royway:
1.We specialize in water turbine manufacturing for over 10years. The water turbines we supplies severs a
wide range of costumers in and out of China.
2.easy installation & operation
We have a wide range of water turbines for building hydraulic generator systems.It is designed of easy
installation and operation.
3.high efficacy
The water powder generator can be applied in varies place and environment.Our water turbine is produced
with high efficacy via our long years experience of research and development.
1.Inclined jet micro hydro generator
2.Axial flow micro hydro generator
3.Pelton micro hydro generator
4.Francis micro hydro generator
5.Turgo micro hydro generator
6.Cross flow micro hydro generator
7.Tubular micro hydro generator
4. Order instruction
Please provide the following information while placing order:
1.Head, including design/rated head, maximum head, and minimum head;
2.Flow for each unit, design flow, maximum flow and minimum flow;
3.Installation units number and single capacity
4.Frequency
5.generator data including rated voltage, power factor, insulation class and others;
6.diversion pipe diameter and length;
7.water conditions;temperature conditions;Altitude;
8.Unit operation type, parallel operation or isolated operation,Automation degree;
