Francis Water Power Generator Small Hydroelectric Generator

Francis Water Power Generator Small Hydroelectric Generator thumbnail-1
Francis Water Power Generator Small Hydroelectric Generator thumbnail-2
Francis Water Power Generator Small Hydroelectric Generator thumbnail-3
Francis Water Power Generator Small Hydroelectric Generator photo-1
Francis Water Power Generator Small Hydroelectric Generator photo-2
Francis Water Power Generator Small Hydroelectric Generator photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Royway
Model Number:
CT-HL110-WJ-50
Contact Supplier Request Quote Chat Now
Chongqing Royway Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Royway
Model Number CT-HL110-WJ-50
Type Other, Water turbine/hydro generator, Francis Turbine

Francis Water Power Generator Small Hydroelectric Generator



 Francis Water Power Generator Small Hydroelectric GeneratorFrancis Water Power Generator Small Hydroelectric GeneratorFrancis Water Power Generator Small Hydroelectric Generator

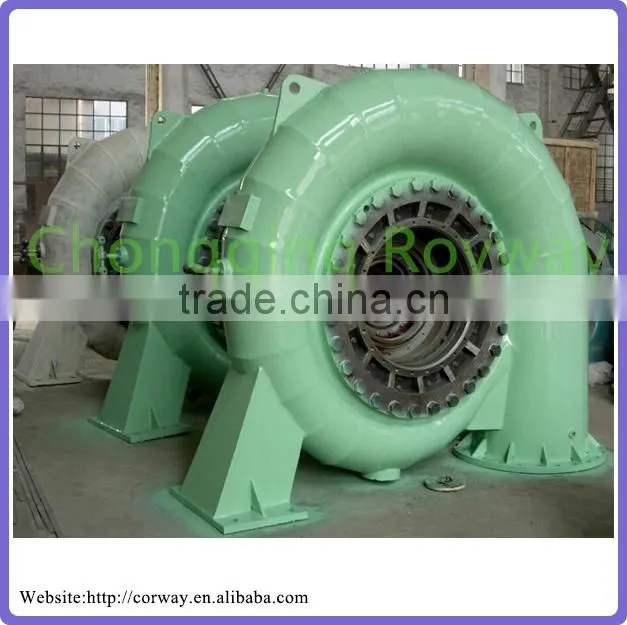

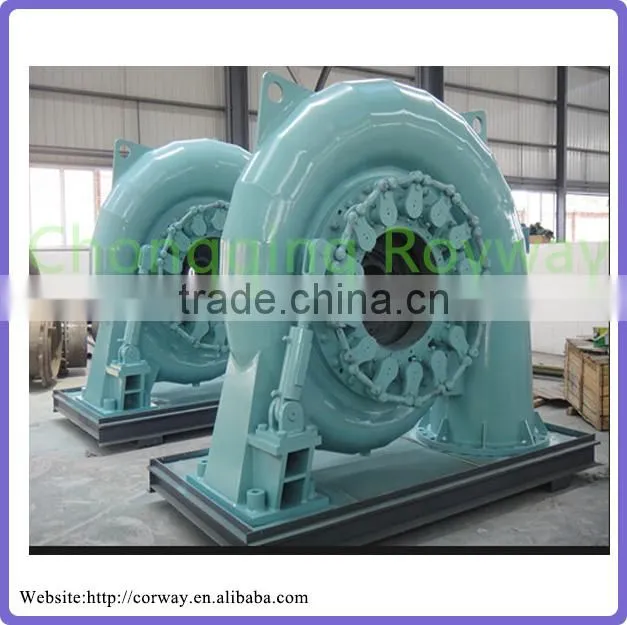

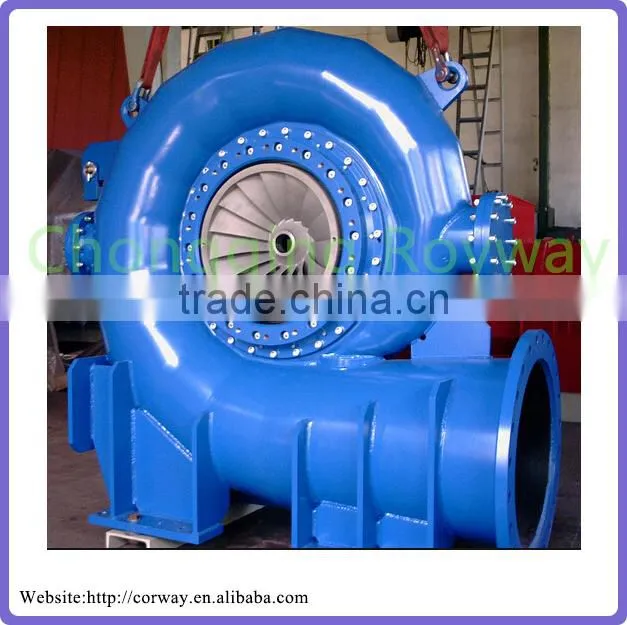

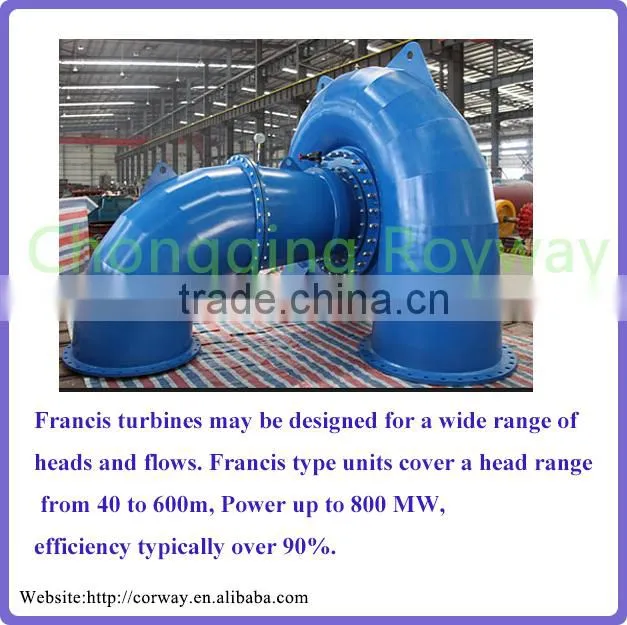

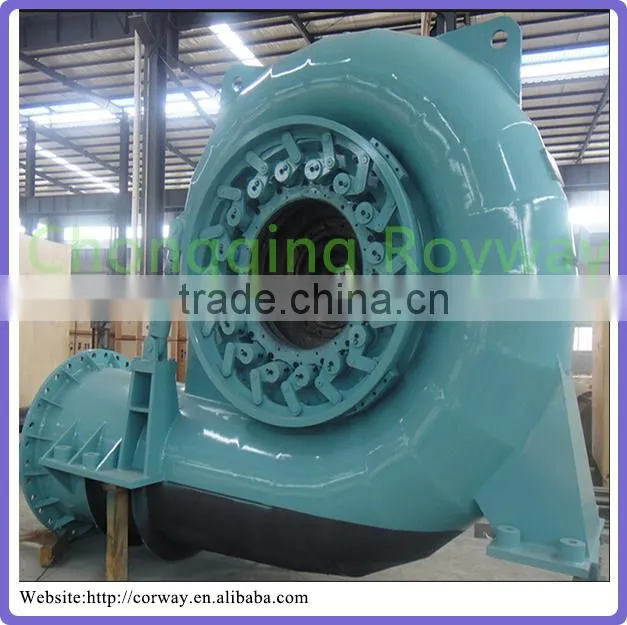

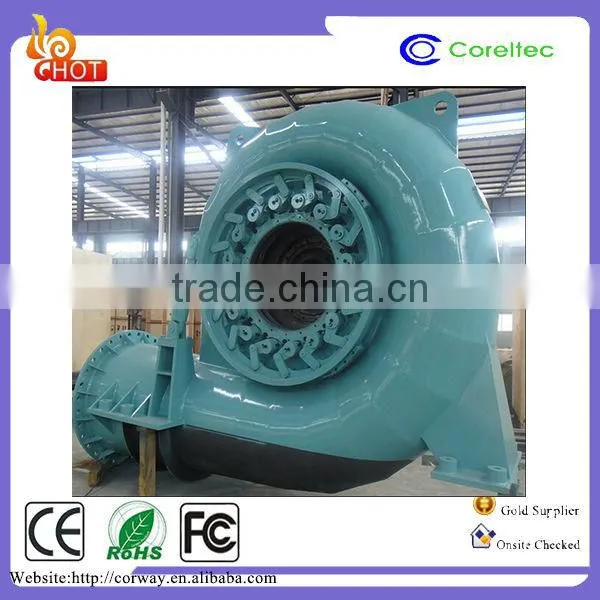

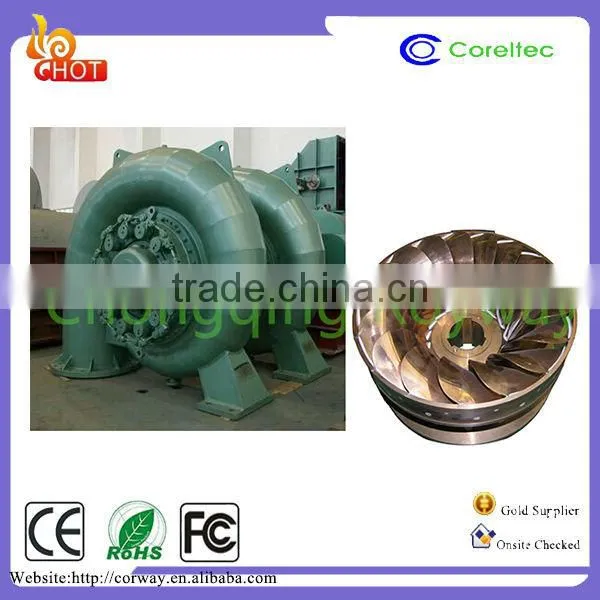

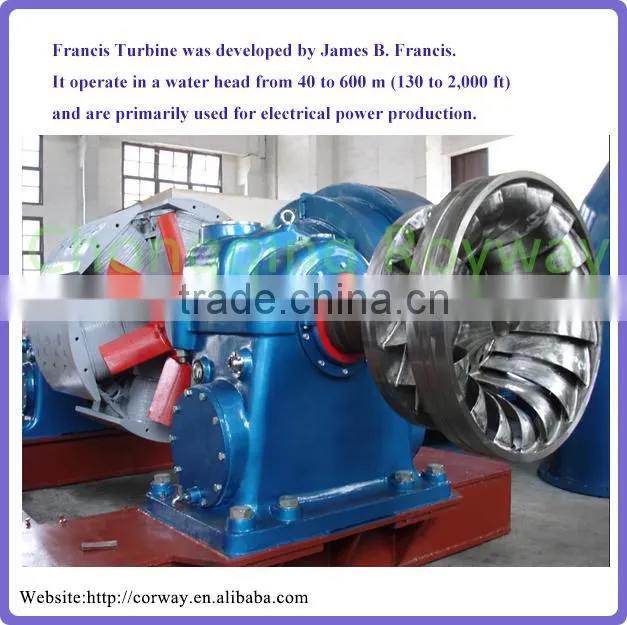

Francis turbine

Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.

It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.

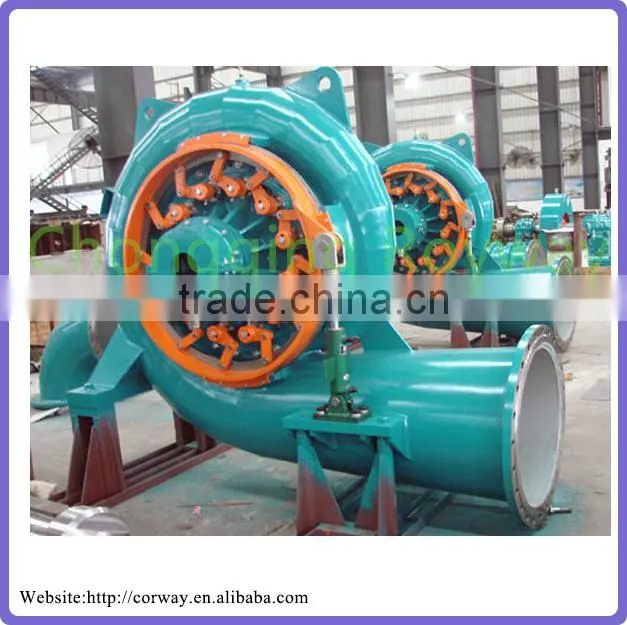

Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement. Simple structure, easier operation and maintainence.

Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger than 1000mm.

Our engineer will select the most suitable Francis turbine for your hydro power project.



1,Suitable water head : 20-300m

2, Output scope      : 50Kw -50Mw

3, Runner diameter   : 35cm -250cm

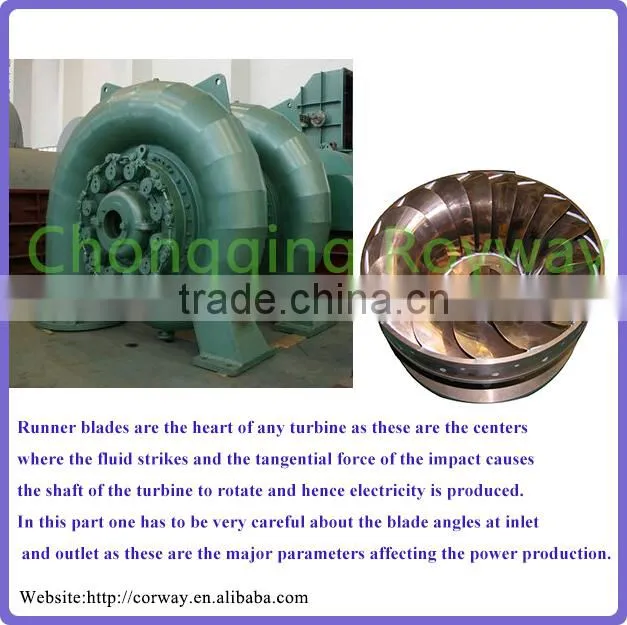

4,Runner material    : stainless steel

5, Arrangement type  : Vertical and Horizontal



 Francis Water Power Generator Small Hydroelectric GeneratorFrancis Water Power Generator Small Hydroelectric GeneratorFrancis Water Power Generator Small Hydroelectric GeneratorFrancis Water Power Generator Small Hydroelectric Generator



Technical Parameter of Francis Turbine



Francis Turbine
Water Turbine Generator
Model Water head Flow(m3/s) Output Power (KW) Speed (r/min) Type Model Rated Power (KW) Power factor Rated Voltage(V) Runaway speed(r/min) Remark
HL110-WJ-42 30.2 0.349 84.4 805 Manual SFW75-8/493 75 0.8 400 1650 SCR
  49 0.445 176.3 1025 Manual SFW160-6/590 160 0.8 400 2200 SCR
  68 0.524 274.24 1207 Manual SFW250-6/740 250 0.8 400 1800 SCR
HL110-WJ-50 28.7 0.482 111.3 659 Manual SFW100-10/990 100 0.8 400 1320 SCR
  38.8 0.561 178 766 Manual SFW160-8/740 160 0.8 400 1350 SCR
  45.5 0.608 221.7 830 Manual SFW200-8/740 200 0.8 400 1350 SCR
  53 0.655 275 895 Manual SFW250-6/740 250 0.8 400 1800 SCR
  61.3 0.705 353.4 963 Manual SFW320-6/850 320 0.8 400 1800 SCR
  70.5 0.756 435 1033 Manual SFW400-6/850 400 0.8 400 1800 SCR
  82.9 0.819 543 1120 Manual SFW500-6/990 500 0.8 400 1800 SCR
  97.5 0.901 681 1215 Manual SFW630-6/990 630 0.8 400 1800 SCR
HL110-WJ-60 22.8 0.607 114 489 TT-300 SFW100-12/850 100 0.8 400 900 SCR
  26.3 0.665 142.7 526 TT-300 SFW125-12/850 125 0.8 400 900 SCR
  31 0.702 178 571 TT-300 SFW160-10/740 160 0.8 400 1080 SCR
  35.3 0.077 222.4 609 TT-300 SFW200-10/850 200 0.8 400 1080 SCR
  41 0.841 278 656 TT-300 SFW250-10/850 250 0.8 400 1000 SCR
  48 0.898 352 710 TT-300 SFW320-8/590 320 0.8 400 1350 SCR
  55.5 0.965 440 764 TT-300 SFW400-8/990 400 0.8 400 1350 SCR
  64.9 1.044 546 826 TT-300 SFW500-8/990 500 0.8 400 1350 SCR
  78 1.1 691 905 TT-300 SFW630-6/990 630 0.8 400 1800 SCR
  88.7 1.187 865 965 TT-300 SFW800-6/1180 800 0.8 6300 2100 SCR
  101 1.302 1079 1030 TT-300 SFW1000-6/1180 1000 0.8 6300 2100 SCR
  118.5 1.411 1342 1116 TT-600 SFW1250-1/1180 1250 0.8 6300 2100 SCR
  140 1.563 1705 1213 TT-600 SFW1600-6/1430 1600 0.8 6300 2100 SCR
HL110-WJ-71 60.4 1.41 689 673 TT-300 SFW630-10/1180 630 0.8 6400 1200 SCR
  70.5 1.49 872 727 TT-600 SFW800-8/1180 800 0.8 6300 1350 SCR
  81 1.615 1079 780 TT-600 SFW1000-8/118 1000 0.8 6300 1500 SCR
  95 1.799 1349 844 TT-600 SFW1250-8/1430 1250 0.8 6300 1800 SCR
  113 1.859 1723 921 TT-600 SFW1600-6/1430 1600 0.8 6300 2000 SCR
  128 2.008 2135 980 TT-600 SFW200-6/1430 2000 0.8 6300 2000 SCR
  147.7 2.187 2659 1053 TT-1000 SFW2500-6/1730 2500 0.8 6300 1800 SCR
  176 2.408 3404 1149 TT-1000 SFW3200-6/1730 3200 0.8 6300 1800 SCR
HL110-WJ-84 74.2 2.17 1338 631 YT-600 SFW1250-10/1430 1250 0.8 6300 1200 SCR
  88 2.383 1701 687 YT-600 SFW1600-10/1430 1600 0.8 6300 1200 SCR
  102 2.516 2155 739 YT-600 SFW2000-8/1730 2000 0.8 6300 1500 SCR
  117 2.748 2658 792 YT-600 SFW2500-8/1730 2500 0.8 6300 1500 SCR
  140 3.006 3401 866 YT-600 SFW3200-8/1730 3200 0.8 6300 1500 SCR
  163 3.135 4256 935 YT-600 SFW4000-6/1730 4000 0.8 6300 2000 SCR
  184 3.446 5274 993 YT-600 SFW500-6/1730 5000 0.8 6300 2000 SCR
HL220-WJ-42 23.4 0.951 178 789 Manual SFW160-8/740 1600 0.8 400 1350 SCR
  27 1.039 222 847 Manual SFW200-8/740 200 0.8 400 1350 SCR
  31.4 1.072 275 914 Manual SFW250-8/740 250 0.8 400 1800 SCR
  37 1.185 355 992 Manual SFW320-8/850 320 0.8 400 1800 SCR
  42.3 1.29 435 1061 Manual SFW400-6/850 400 0.8 400 1800 SCR
  49.3 1.409 545 1145 Manual SFW500-6/990 500 0.8 400 1800 SCR
HL220-WJ-50 15.8 1.08 140 546 TT-300 SFW125-10/740 125 0.8 400 1080 SCR
  18.5 1.186 179 591 TT-300 SFW160-10/740 160 0.8 400 1080 SCR
  21.3 1.3 223 634 TT-300 SFW200-10/850 200 0.8 400 1080 SCR
  24.8 1.353 376 684 TT-300 SFW250-8/850 250 0.8 400 1350 SCR
  29 1.486 351 740 TT-300 SFW320-8/990 320 0.8 400 1350 SCR
  33.6 1.633 441 796 TT-300 SFW400-8/990 400 0.8 400 1350 SCR
  39.3 1.711 544 861 TT-300 SFW500-6/990 500 0.8 400 1800 SCR
  45.2 1.827 680.4 924 YT-600 SFW630-6/990 630 0.8 6300 1800 SCR
  52.8 2.011 864 998 YT-600 SFW800-6/1180 800 0.8 6300 1800 SCR
  61 2.2 1080 1073 YT-600 SFW1000-6/1180 1000 0.8 6300 1800 SCR
  71 2.405 1342 1158 YT-600 SFW1250-6/1180 1250 0.8 6300 1800 SCR
HL220-WJ-60 16.8 1.608 224 471 TT-300 SFW200-12/850 200 0.8 400 900 SCR
  19.2 1.758 278 503 TT-300 SFW250-12/850 250 0.8 6300 900 SCR
  22.9 1.955 359 549 TT-300 SFW320-12/990 320 0.8 400 900 SCR
  26.2 2.035 439 588 TT-300 SFW400-10/990 400 0.8 400 1080 SCR
  30.4 2.236 550 633 TT-300 SFW500-10/990 500 0.8 400 1080 SCR
  35.4 2.344 684 683 TT-300 SFW630-8/990 630 0.8 400 1350 SCR
  41 2.546 868 735 YT-600 SFW800-8/1180 800 0.8 6300 1350 SCR
  47.5 2.7988 1077 791 YT-600 SFW1000-8/1180 1000 0.8 6300 1350 SCR



Francis Water Power Generator Small Hydroelectric Generator




Advantage:

1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted: We can produce any your design.

3. Good Service: We treat clients as friend.

4. Good Quality: We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).







Check below for more information on placing an order

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, artwork, payment term etc.

3. Freedom sales send the Pro forma Invoice with freedom seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.

6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection.

8. Clients make payment for balance and Freedom Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.

9. Order can be say “finish” when you receive the goods and satisfy with them.

10. Feedback to Freedom about Quality, Service, Market Feedback & Suggestion. And we can do better.





We adopt standrad exporting package,use environmental protection materials to makesure the package is suitable to long distance transportation.

Our customers have a wider range of processing choices for transportation mode:

 By Express ( FedEx, UPS, DHL, TNT, EMS, etc... )
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.

  Francis Water Power Generator Small Hydroelectric Generator
