Low Devoted Abrasive Resistance Wet Pan Mill for Processing Gold

Low devoted Abrasive resistance wet pan mill for processing gold

1. The Brief Introduction of  wet pan mill for processing gold

The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.

As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.

Above all, 1200a type is the most popular and widely use.

2. Working Principle of  wet pan mill for processing gold

1.The normal operation of the mill, before they start feeding.

2.this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.

3.should be uniform feeding not erratic, it is best to use the feeder.

4.bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.

5.regular checks of the various parts of the screw is loose.

6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts.

7.mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.

8.machine maintenance, to ensure safety, you must remove the motor belt.

Advantages of  wet pan mill for processing gold

1. The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.
2. The ores and water are evenly mixed, which makes the pulp density and other indexes stable.
3. After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink t the bottom of grinding base, being grinded continuously till they reach the required fineness.
4. The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over grinding and uneven fineness, which helps create better condition for next working process.

Features of  wet pan mill for processing gold

1 wet pan mill suit for mineral processing after the installation is completed to gold grinding machine groove bottom 5 kilograms of mercury begins normal operation.
2 each class receive once the Sands, the shift added to 1 kg of mercury to receive the grind at the end of the Sands and mercury, the mercury received  gold equipment, with a relatively high density of red cloth mercury screwed out to the package, open the red cloth which left Sands. One kilogram of mercury each class started on it. Containing one is grasping the cloth of gold or grab the gold behind the blanket and put on the mercury board can receive the gold.

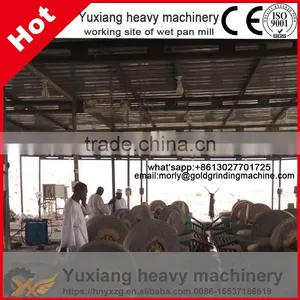

 Working Site On Sudan

Packing of  wet pan mill for processing gold

4.Our Service

Pre-sale services:

   Act as a good adviser and assistant of clients

   Select equipment model;

   Design and manufacture products according to clients’ special requirement;

   Train technical personnel for clients;

Services during the sale:

   Respect clients;considering every aspect and details for our customers

   Check products ahead of delivery;

   Keep costumers informed about the shipping;

After-sale services:

    We promise excellent after-sale service!

    Assist client to prepare for the first construction scheme;

    Install and debug the equipment;

    main the first-line operators on site;

    Take initiative to eliminate the troubles rapidly at site;

    Provide maintenance for big items;

Our company

Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,feed and fuel pellet making machine etc. We are located in        Gongyi city, Henan, China. We will provide convenient transportation including expressway,railway and waterway. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching India, Indonesia, Vietnam, Bangladesh, Pakistan, Sultan, Cambodia, Philippines, Iran, Sri Lanka, Africa, Russia, the United Kingdom, the United States, Brazil, Australia etc. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

FAQ:

Q: For providing you the suitable quotation we need to know the following information:
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get 5% discount price.
Q: What about Warranty of the products?
A: During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q: The reason you choose Dewo Machinery:
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
