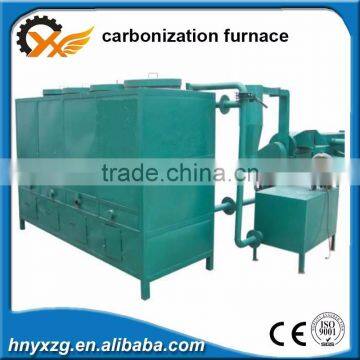

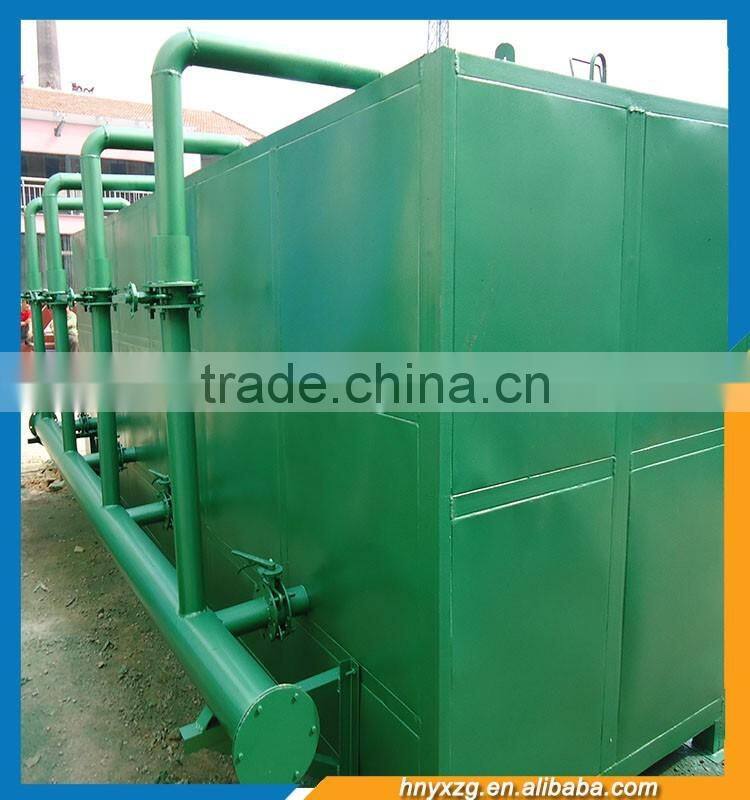

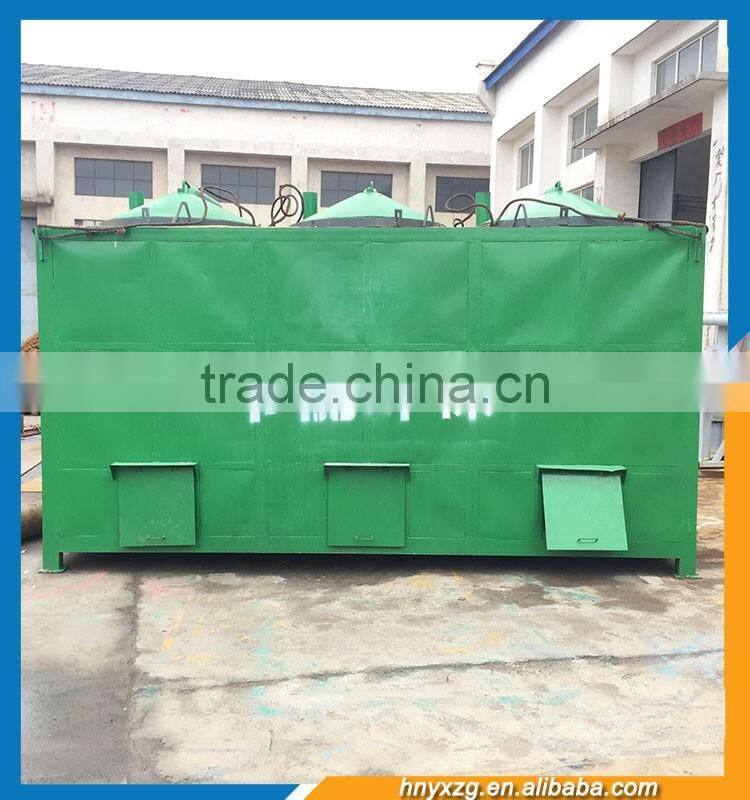

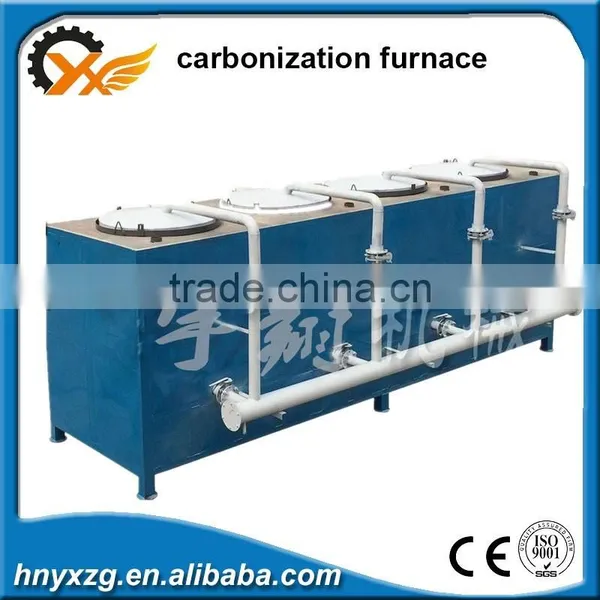

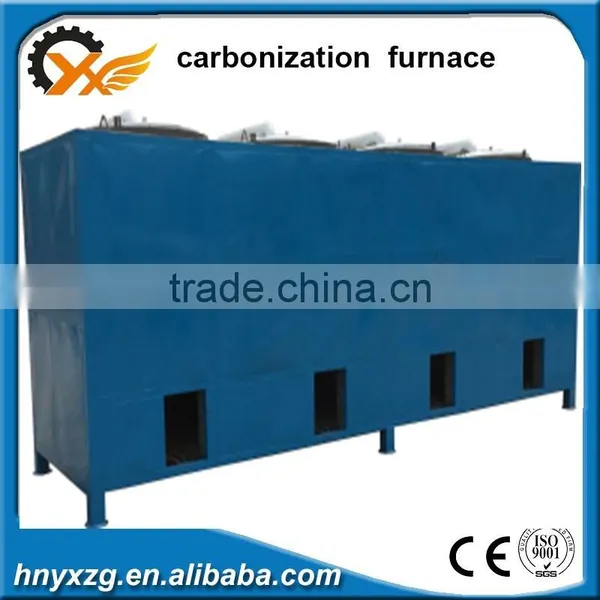

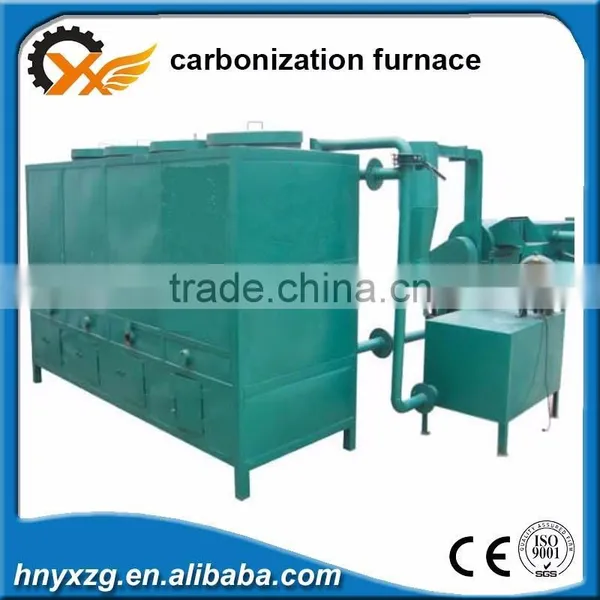

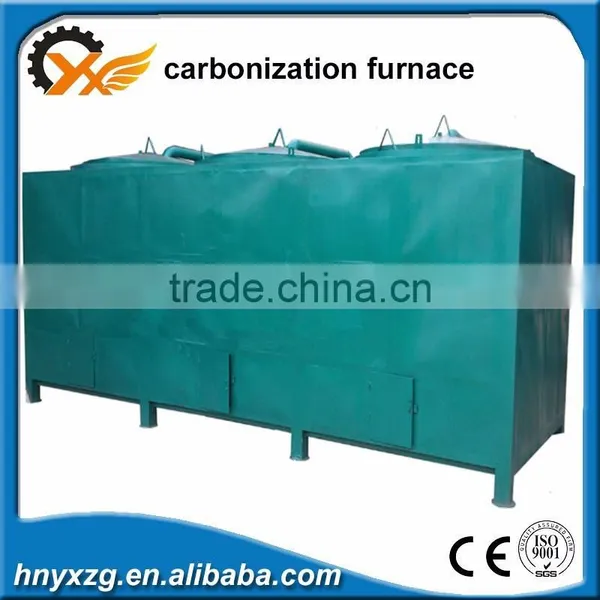

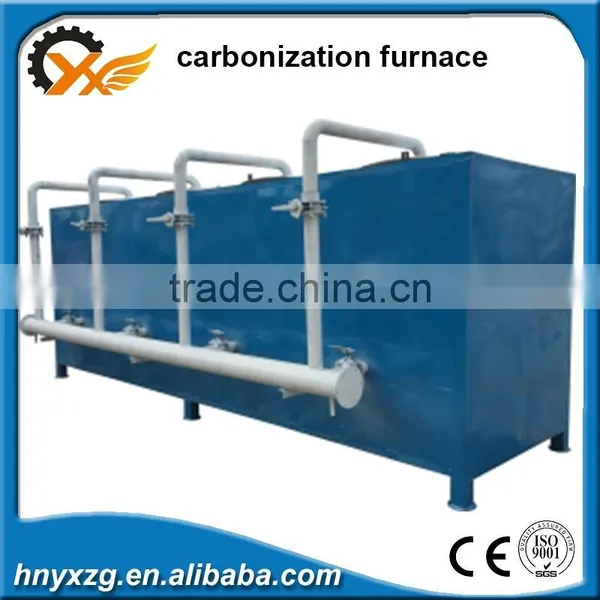

Newest style carbonization furnace for sale
Introduction of rice husk stove
The airflow charcoal manufacturing oven is our new invent equipment, which is also combined type. The charcoal can be hoisted outside, in this way the cooling time can be reduced much, thus, the productive efficiency increases a lot.
This type of furnace adopts the structure of unique air storage chamber, to fully reuse the smoke produced during the process of carbonization. And 60% of the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process, and increasing the enterprise revenue.
Working principle of rice husk stove:
A: Prepare the raw material and pack them in the inner stove;
B: Use the hoist to hang the inner stove to the outer stove, and then cover the cap; and then connect the cap and inner stove and seal them;
C: then fire the outer stove, and use the purification tank to collect the smoke;
D: when it produce the fuel gas, you can use the fuel gas to carbonzie the raw material which save a lot of fire material.
E: when finish the carbonization, use the hoist to hang the inner stove out to the ground, and then use the hoist to hang another inner stove to carbonize again.
Introduction of main parts

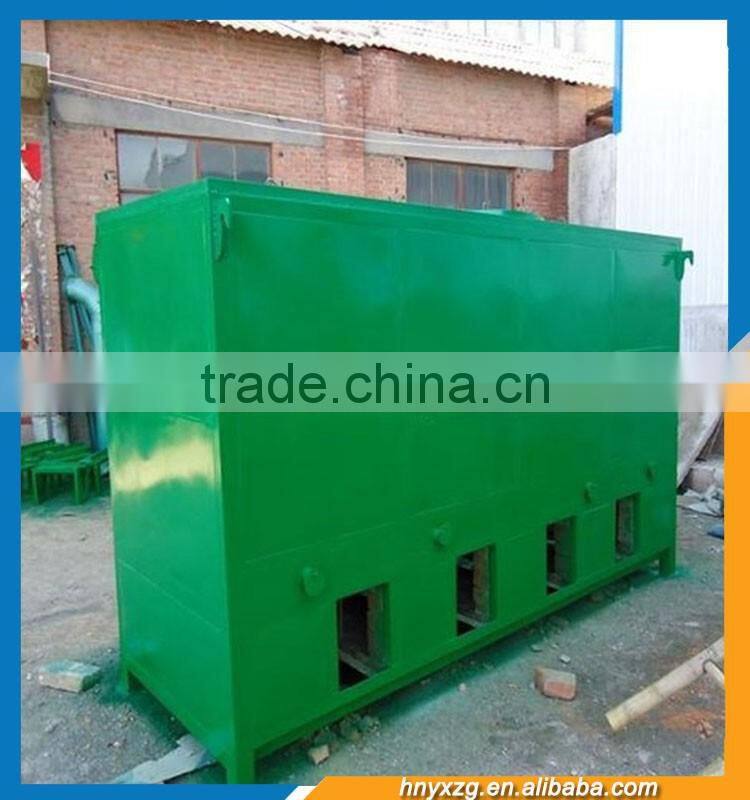

(1) Outer stove
includes heating room (for heating the inner stove), furnace body and heat-keeping layer (it is made of the heat insulating material)

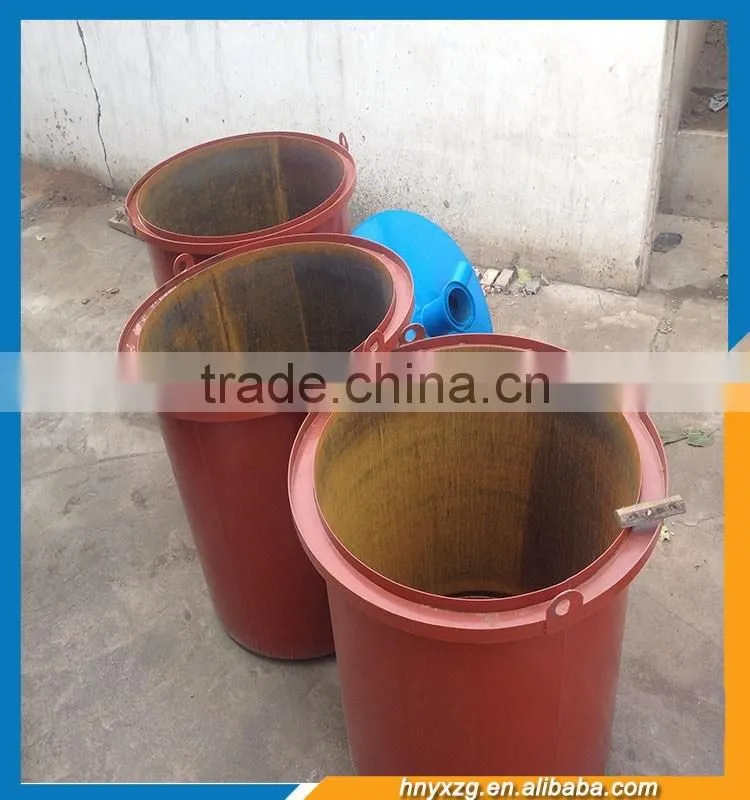

(2) Inner stove
Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel, three inner stove can be stacked together for saving space and shipping cost.

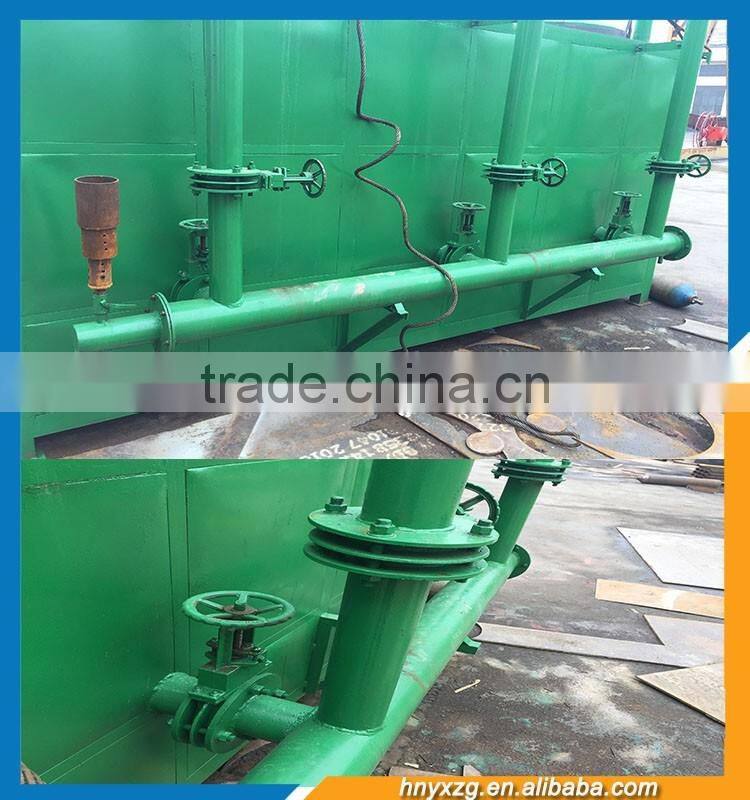

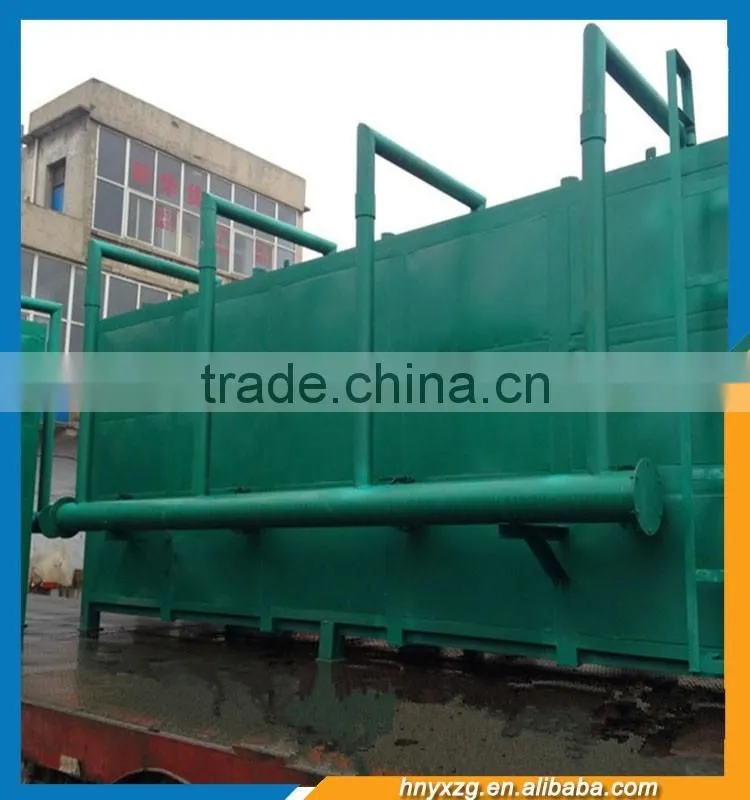

(3) Smoking recycle tube
During the process of carbonizing, there will be some smoke.( can be burning) the smoke can be collected and returned to the furnace.
(4) Purification tank
This system is consisting of purification tank and the exhaust-heated cycle pipe.

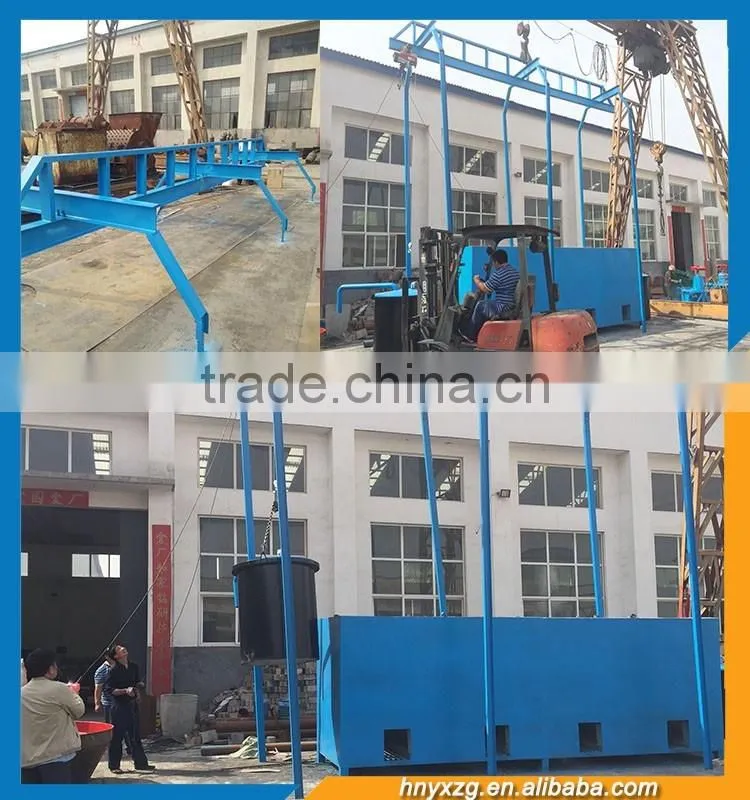

(5) Hoisting equipment
it include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove.
Characteristics of rice husk stove:
1.Easy to operate and maintain, higher safety, energy saving
2.High carbonization rate ,no smoking, little pollution, high efficient.
3.Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization. 6-8 hours per stove and can work continuously .
4.The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continue warming the stove, and it will save 70% energy consumption and recycle 95% smoking.
The carbonized different kinds of raw material:
1) Agricultural waste: straw, stalk, corn cob, peanut shell, grass, etc.
2) Forest waste: wood log, branches, leaves, sawdust, etc.
3) Coconut shell, kernel, sunflower shell, nuts, etc.
4) Bamboo
The specification
| Model Number | Power(kw) | Capacity(kg/h) | Weight(kg) | Dimension(mm) | Consumption of Fuel |
| YX-THL-1 | 1.5kw | 500kg/6h | 4500kg | 2500*1600*2200 | Less than 30kg |
| YX-THL-2 | 1.5kw | 1000kg/7h | 5000kg | 2800*1600*2200 | Less than 40kg |
| YX-THL-3 | 1.5kw | 1500kg/8h | 6500kg | 3500*1800*2500 | Less than 50kg |

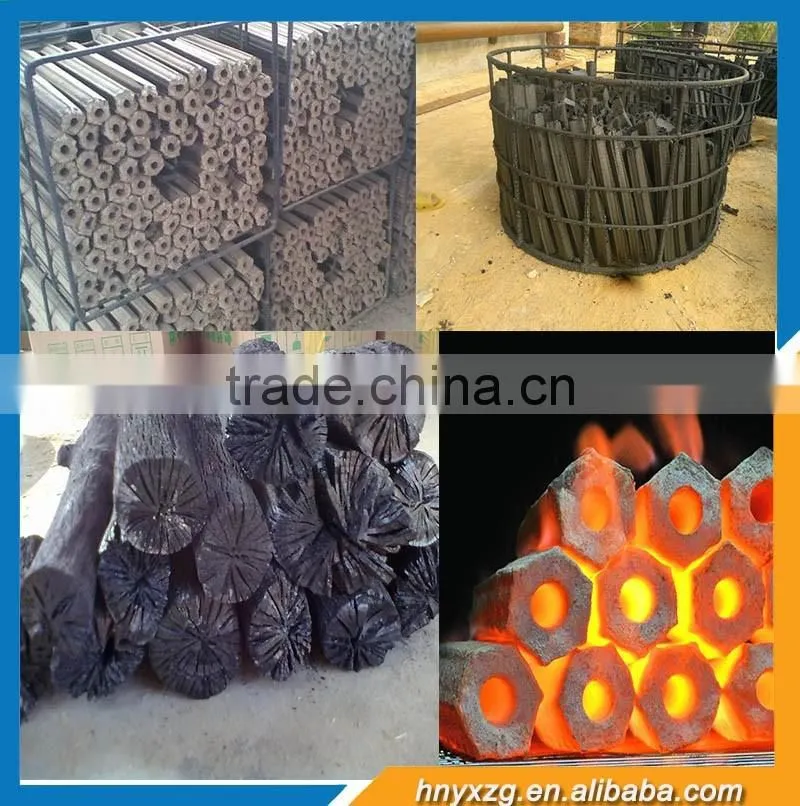

The final product
Services for our customers:
1. Pre-sale services: according to your special needs, design and manufature machines, and provide project design, process design, and purchase program for you.
2. On-sale services: accompany you to check the performance of the machine, help you finish the shipment.
3. After-sale service: as you receive the equipments, we will send engineers to install them for you to put them into use as soon as possible, commissioning and training operators on site.

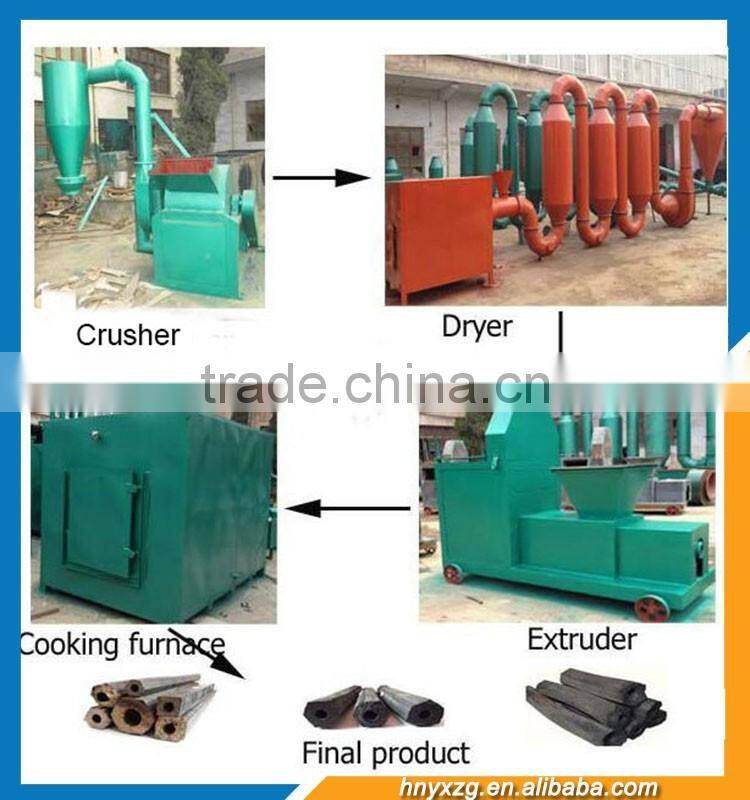

Before carbonization,You need the briquette machine to make stick.
About our company:
Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,feed and fuel pellet making machine ,oil press machine etc. We are located in Gongyi city, Henan, China.
Q: Is this machine easy to operate and maintain?
A:Yes, our machine is easy to operate and maintain. When the machine is delivered to you, it is well installed, and we will send you the operation specification for you to follow. If you really meet some operation problems, we will give you help and teach you in time!
Q: What is our delivery time and payment term?
A: Our payment term is 50% downpayment by T/T or Western Union, the balance should be paid when you see the copy of B/L. Our delivery time is 10-15 days after receiving your downpayment.
Q: How long is our quality guarantee?
A:Before deliver the machine to you, we will test and adjust, so you can use it directly when you get it. Our machine warranty term is 12 months. If any questions, we will offer solutions in time. If there are malfunctions are caused machine itself, we are responsible for them; if the malfunctions are caused by man-made problems like operation mistakes, clients should be responsible for them.
For more information about carbonization furnace, please contact me:
Welcome to visit our factory at any time !!!
