Main product |
|
|

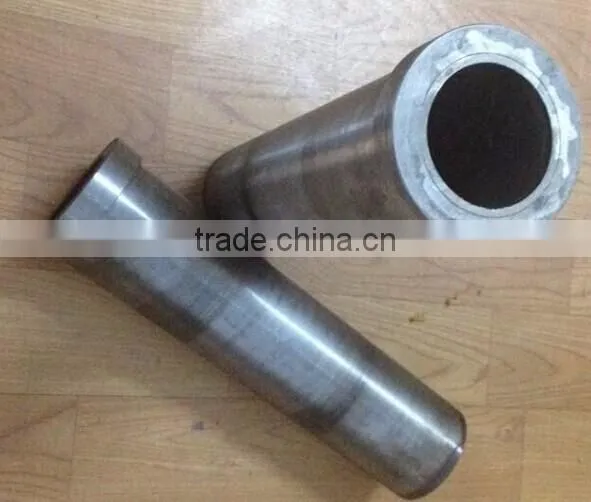

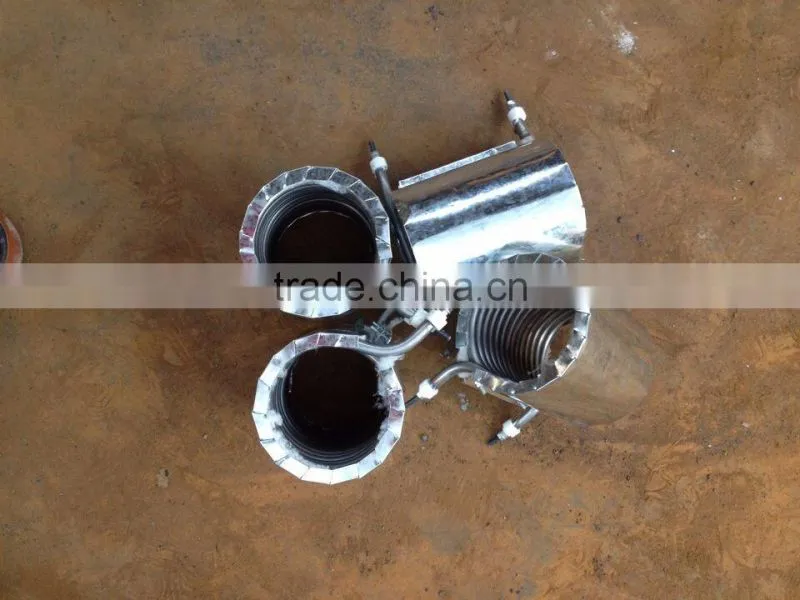

Main spare parts |
|
|
| Model | Heating Ring Power(kw) | Capacity(kg/h) | Power(kw) |
Feeding size(mm) |
Weight(kg) |
| ZBJ-7 | 1.5 | 130-150 | 11 | ≤5 | 450 |
| ZBJ-8 | 2 | 200-250 | 15 | ≤5 | 650 |
ZBJ-9 |
3 | 300-400 | 18.5 | ≤5 | 800 |
| ZBJ-10 | 3 | 400-500 | 22 | ≤5 | 1000 |
| Brief introduction |

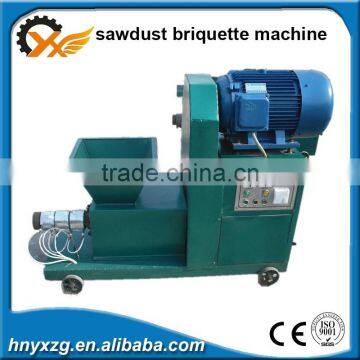

sawdust briquette press machine (also called coal rod extrusion machine) is the use of a screw extrusion principle,the coal rod shaping equipment compressed the modulated coal powder into a predetermined shape with a certain strength.,can Instead of burning coal and coal gas with the higher economic efficiency. Utilization of coal rod machine making coal rod can make full use of coal, in the production process it does not need to be mixed with lime, reducing the cost of fuel, and improves the calorific value of coal, and small volume of the equipment, does not need the carbonization drying equipment, do not require steam, saving investment, reducing the occupying area,the higher economic efficiency. |
| Our features |
1.The oursawdust briquette press machine replaces the three bearings by four,increasing the stability and durablility of machine to reduce the abnormal sound during operation. 2.Improving the oil lubrication system from applying oil into oil bath.Mantaince is easier. 3.Increasing the pitch of main screw to change the feed rate,the output and the production rate is highly increased. 4.Improving the structure of the forming cylinder,reducing the mechanical friction with the material,increase the density of the final products 5.The key parts of the product with a wear-resisitant material with special treatment,it is possible to suppress the production of containuous and durable.
|
|

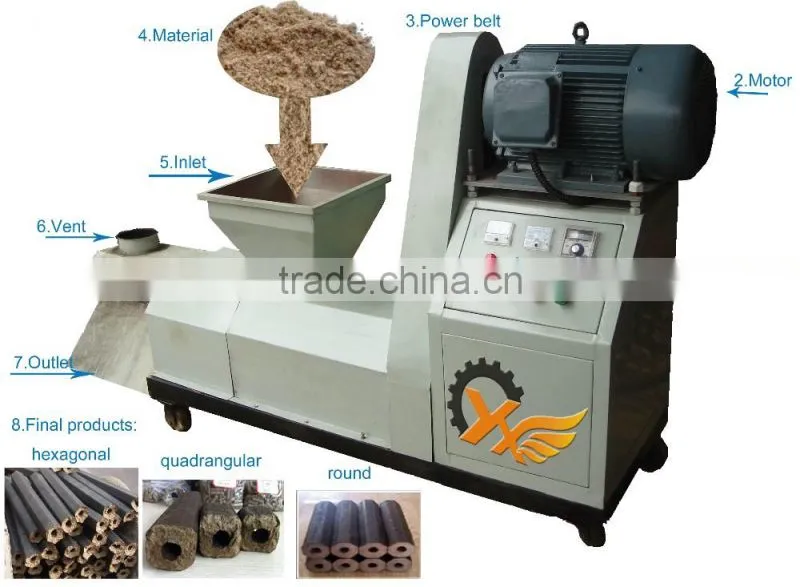

Control panel: Three meters:Therometer,Voltmeter,Ammeter Three main buttons:On,off,Rev,Urgent brake Therometer(0-500°):adjust the surface carbonization of final rod. Rev button:Under jam condition to press Motor: AC motor 11-18.5Kw 380V 50Hz power consumption<100kwh/t Power belt:4 combined quality belts our OEM is durable Material:Recommended Moisture:8-12% Requested particle size≤ 6mm Inlet:Put the material into the inlet.Automatic closed type conveyor is available : hnyxzg.en.china.cn Vent:The final rod is hot with gas so this vent is necessary. Outlet:The final rod will out here with the length you need. |
|
Wood crusher
|
|
Air flow dryer
|
|
|

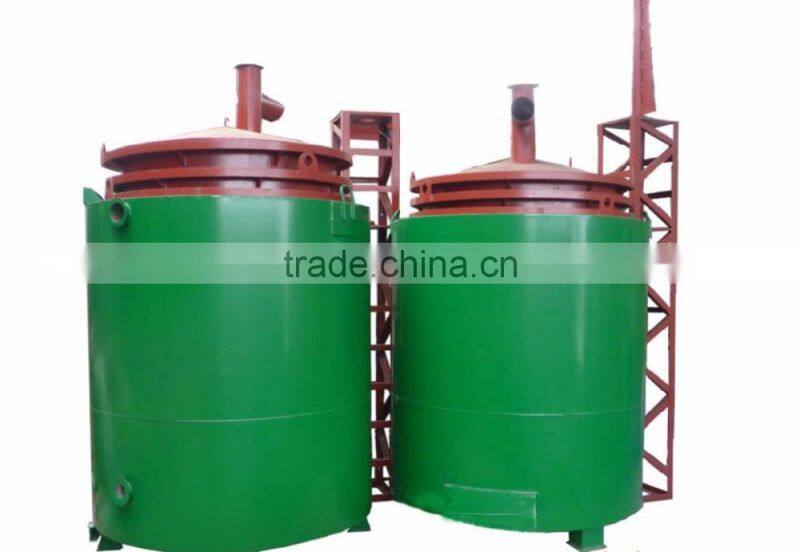

Single carbonization furnace
|
|

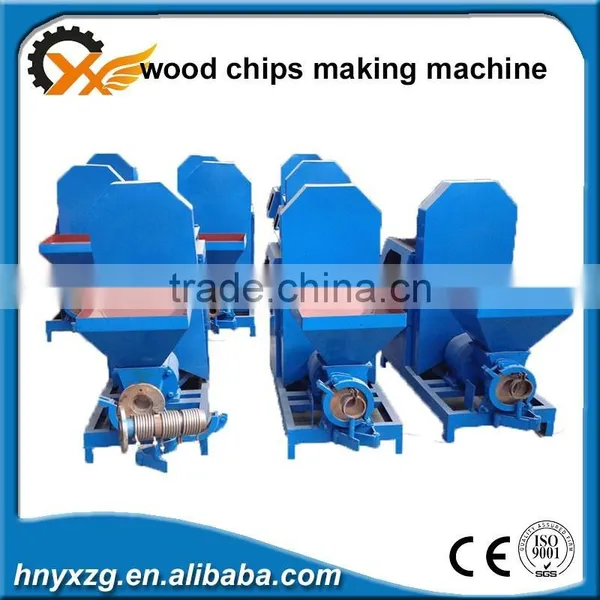

Charcoal briquette machine
|
|

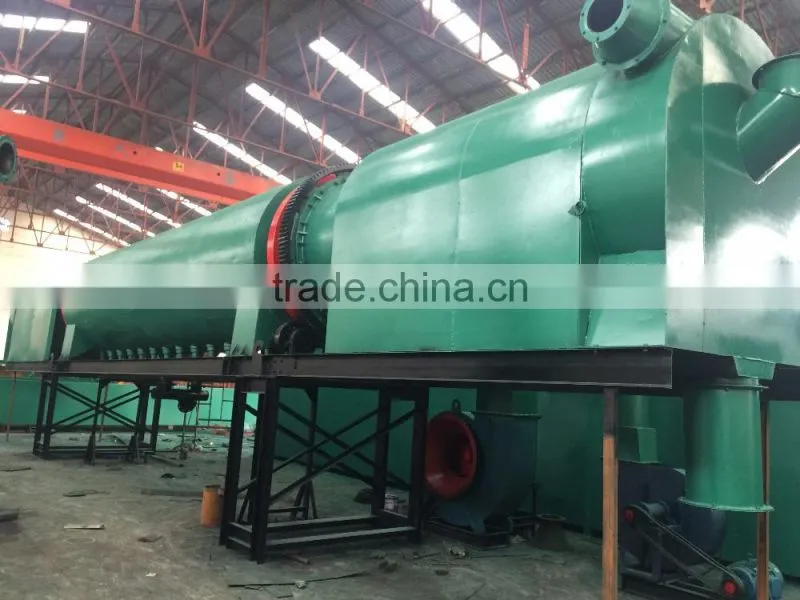

Continuous carbonization furnace
|
|
1. Does it will produce smoke during the production?
The working principle of charcoal making machine is to press the biomass material and heat the surface to form,so there will be small smoking with vapour if you adjust the heat coil to high temperature to carbonize the surface of final product.Usually the smoke is small,if you need,an install a equipment to let the smoke into the water and absorb the smoke.
2. What is the fineness of the sawdust i can use to make charcoal?
Generally, below 5mm is ok. but such as wood shaving, rice husk. 8mm is also no problem
Yuxiang heavy machinery is located in China famouse machinery county-Gongyi (Henan),covering an area of over 20000 square meters.Being an ISO 9001:2000 international Quality System certified enterpise,since its born Yuxiang has been concentrating on Research,Design&Manufacturing of Mining machines like wet pan mill,ball mill,crusher etc.;Biomass energy machines like carbonization furnace,charcocal briquette machine;Oil press machine series.
Yuxiang is focused on producing machinery that specifically meets the unique needs of cusotmers.operation by tailoring the solution around specific goals.During the past 20years,Yuxiang company has gained rich experience in the field of designing and manufacturing of machines.At the same time,Yuxiang continues to invest in the advanced equipments and keep upgrading and maintaining the facilities we have had.We can provide our customers with high quality machines by combining modern equipments with advanced processing technology and perfect Quality Control System.
