Home > Products > Carbonization machine > China manufacturer newly developed continuous sawdust carbonization furnace
China manufacturer newly developed continuous sawdust carbonization furnace
- 3 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Simple and convenient operation carbonization furnace for charcoal
- Factory Price Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar Charcoal Making Machine
- High profit hoisting carbonization furnace wood carbonization furnace biochar machine
- High quality carbonization furnace coconut shell charcoal making machine
- High output rotary type carbonization furnace making machine charcoal compressed
- Hoist Type BBQ Wood Biochar Charcoal Continuous Carbonization Furnace Chamber
Product Details
Condition: | New | Type: | Air Flow | Application: | Making Charcoal |
Place of Origin: | Henan, China | Brand Name: | Yuxaing | Model Number: | THL-5 |
Dimension(L*W*H): | 16*5*5m | Weight: | 16t | Voltage: | 380V |
Power(W): | 22kw | Certification: | CE ISO | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
This continuous carbonization furnace is mainly used for carbonizing:sawdust,rice husk,groundnut shell,plants straw, tree bark,grinded coconut shell,etc..Granule size of all above raw material should be less than 15mm.
This machine can be continuous getting charcoal and feeding raw material at the same time.this equipment is with high efficiency, which cause no pollution to the air.
Raw material
wood sawdust, rice husk, peanut husk, straw, tree bark,biomass waste etc ( raw materials size <30mm ).
Type | Capacity | Power | Weight | Dimension |
THL-1 | 300kg/h | 16kw | 12t | 18*1.5*4m |
THL-2 | 500-600kg/h | 18.5kw | 16t | 16*5*5m |
THL3 | 700-800kg/h | 18.5kw | 30t | 18*5*5m |
1) main part of the whole set machine : biomass gasifier stove , gas cleaner , fan, burner , carbonization equipment etc
2) principle : this sets equipment use Dry distillation carbonization method , make full use of the flammable gas,such as Methane, carbon monoxide, hydrogen, which occur during the carbonization . Then through the gas cleaner to get Wood tar, wood acid to get pure flammable gas , then through the burner to make the gas be burning to heating the carbonization ( temperature is about 600 ℃ )3) Four-layer’s pipe : from top to bottom , the 1st & 2rd layer are for pre-heating and drying, ( these 2 layers with independent vapour exhaust pipe ),3rd layer is for carbonization under low temperature , 4th layer is for carbonization under high temperature and discharge , 3rd & 4th layer also have independent pipe to collect flammable gas, which can make the gas be used circulatory
Main motor: speed can be adjusted , 3kw
Fan : frequency control speed , 3kw
Temperature of carbonization : 500-700℃
biomass gasifier stove : 350-500℃
Biomass gasifier stove of continuous charcoal carbonizing machine---All kinds of biomass materials into this stove to make flammable gas. | |
Water spary for continuous charcoal carbonizing machine---After the sawdust burning, it has much dust in the gas. This dust removal will remove the dust by the recycling-water. | |
Automic screw feeder of continuous charcoal carbonizing machine---Convey raw material need to be carbonized in to carbonizer.It can convey raw material continusly. | |
Condenser:It used to collect wood tar and wood acid.This is useful industrial material. | |
Carbonizer of continuous charcoal carbonizing machine---Raw material can be carbonized here.The temperature inside during carbonization can reach 300-400℃. | |
Cooling discharging machine will cool the charcoal when discharging.When the charcoal comes out, the temperature will be about 20-30 degree. |
Advantage
1. The carbonization tube use diameter 450 mm stainless steel tube, which with long working life.
2. The finished charcoal powder can reach 1400Kg/h
3. During the processing , it can generate carbon monoxide , methane, oxygen and other recyclable combustible gas,which can be purified and circulate combustion. it is energy-saving.
4. We have an all-around after-sale service.
5. We are experienced in this line for more than five years .
Differences from usual carbonization furnace/stove
1. Continue working, one side to feed sawdust one side to get charcoal
2. High capacity, one machine can get output 8.4-11.2tons per 6-8 hours
3. Energy saving, it used itself smoke to make ,and also no smoke outside
4. Operation: it is easy to operate by a manual automatic dual-use electric control cabinet
The advantages of the continuous carbonized furnace/stove
1.none stoping,working for 24 hours
2.large capacity,one day can reach to 33.6 tons
3.environmental protection,burn the furnace smoke itself,so no smoke go out
4.energy saving,burn smoke as power.
5. make sawdust ,rice hush,coconut shell,,,ect into charcoal timely.
Continuous carbonization furnace
More details>>>
Get Quotation | |

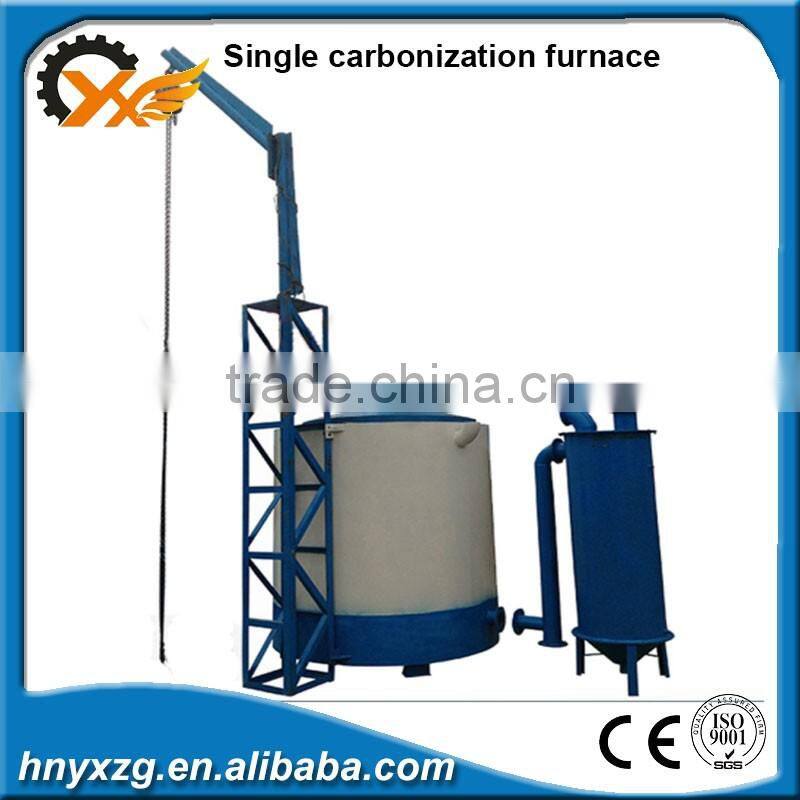

Single carbonization furnace
More details>>>
Get Quotation | |
Continuous carbonization furnace
More details>>>
Get Quotation |
1)What is the carbonization rate?
This carbonization rate can reach to 99%.
2.)Could you offer complete Wood Charcoal machine production line?
Yes, we will allocate suitable production line according to your special requirement, such as crusher, Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet,etc.
3.)Why it is no pollution ?
Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The smoking through the purification system will become water vapor, and it will not pollute the air.
When during the process of carbonizing, there will be some smoke.(can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the main furnace for heating the stove again.
4.) Why choose us:
♦We have nearly 20 years of experience, and we are professional and innovative in the machinery industry.
♦We provide you revolution of construction and development of business with our products and services.
♦We are customer-oriented and quality-focused.
♦We do not pursue maximal profits.Mutual reciprocity and benefit is our goal
Yuxiang heavy machinery is located in China famouse machinery county-Gongyi (Henan),covering an area of over 20000 square meters.Being an ISO 9001:2000 international Quality System certified enterpise,since its born Yuxiang has been concentrating on Research,Design&Manufacturing of Mining machines like wet pan mill,ball mill,crusher etc.;Biomass energy machines like carbonization furnace,charcocal briquette machine;Oil press machine series.
Yuxiang is focused on producing machinery that specifically meets the unique needs of cusotmers.operation by tailoring the solution around specific goals.During the past 20years,Yuxiang company has gained rich experience in the field of designing and manufacturing of machines.At the same time,Yuxiang continues to invest in the advanced equipments and keep upgrading and maintaining the facilities we have had.We can provide our customers with high quality machines by combining modern equipments with advanced processing technology and perfect Quality Control System.
