Excellent quality and High reputation biomass briquette stove/charcoal briquette carbonization furnace
PART 1 .Brief Introduction of Continuous Carbonization Furnace
Our machine adopt advanced heat flow drying system, the drying effect is excellent. After the high temperature, purification, in addition to smoke can be semi-finished products into smokeless, tasteless, non-toxic cleaning carbon, have professional technical guarantee, no risk! This equipment can use such as agriculture and forestry residues (rice hull, peanut shell, corncob, shaving, sawdust, bamboo chips, branches, bark, crop straw) containing carbon material, the processing of new energy reuse is become - mechanism charcoal.
PART 2 . Advantages of Continuous Carbonization Furnace
1. Continue working,one side to feed sawdust one side to get charcoal
2. High capacity,one machine can get output 3-4tons per 6-8 hours
3. Energy saving,it used itself smoke to make ,and also no smole outside
4. Operation,.it is easy to operate by a computer.
PART 3 .Working Principle of Continuous Carbonization Furnace
The environmental friendly carbonization furnace takes full advantages of CO, methane, hydrogen and other flammable gas produced during the carbonization process and adopts the high technique of gas recovery, purification and recirculating combustion. It not only solves the air pollution caused by th heavy smoke during carbonization, but also supplies the heat energy needed by the production. Such design makes the carbonization furnace self-sufficiency real, meanwhile, improves the continuity and economical efficienry to make full use of agroforestry waste and make them valuable.

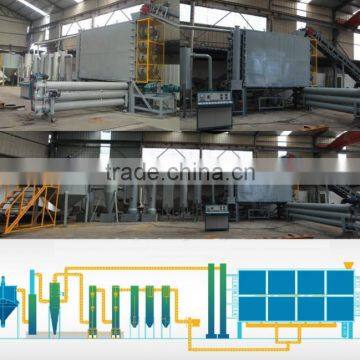

PART 4 . Photos of Continuous Carbonization Furnace
| biomass briquette stove/charcoal briquette carbonization furnace | ||||
| Model | THJ-1 | THJ-2 | THJ-3 | THJ-4 |
| Pipe Diameter(mm) | Ø377 | Ø426 | Ø377 | Ø426 |
| Capacity(kg/h) | 200 | 300 | 400 | 600 |
| Gasifier Diameter(mm) | 1300 | 1300 | 1700 | 1700 |
| Gasifier Motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 |
| Discharging of gasifier motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 |
| Fan Motor(kw) | 4 | 4 | 5.5 | 5.5 |
| Main machine Motor(kw) | 4 | 4 | 4 | 4 |
| Cooling system Motor(kw) | 3 | 3 | 3 | 3 |
| Feeding conveyor Motor(kw) | 3 | 3 | 4 | 4 |
| Pipes working temperature(℃) | 4 | 4 | 500-800 | 500-800 |
| Temperature in furnace(℃) | 4 | 4 | Ø377 | Ø426 |
PART 5 .Our Services
1.Warranty for 12 months.
2.All the machines will be checked Ok before delivery
3. We can appoint specialized after-sale service staff to your country for installation and debugging the equipment.
4.Train operating personnel.
5.We provide the video to guide the customer how to operate the machine and provide technical support .
6.You can call us at any time if the machine break down during the operation.If the problem can't be solved, we will send the engineers to your country to repair the machine for you.
For more information carbonizing furnace, please contact me:
Welcome to visit our factory !!!
1.What is the carbonization rate?
This carbonization rate can reach to 99%.
2.Could you offer complete Wood Charcoal machine production line?
Yes, we will allocate suitable production line according to your special requirement, such as crusher, Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet,etc.
3.Where is your factory located? How to get there?
We are located in Zhengzhou city, Henan province, China, you can come here by air.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO
We will pick you up at airport.Welcone to visit our factory.
4. Why it is no pollution ?
Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The smoking through the purification system will become water vapor, and it will not pollute the air.
When during the process of carbonizing, there will be some smoke.(can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the main furnace for heating the stove again.
5. How many containers will it load?
One 40 feet container and one 20 feet container.
