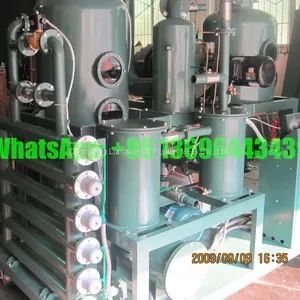

Help Center2017 Newest Insulating Oil Purifier, Oil Treatment Plant Transformer
Related Products
-
ZYD-E-100 Fully Enclosed Type Transformer Oil Purifier (6000 Liters/Hour)US$ 7999 - 17999MOQ: 1 Set -
ZYD-50 Used Transformer Insulation Oil Treatment Machine/Dielectric Oil Purification Equipment, Oil PurifierUS$ 5000 - 30000MOQ: 1 Set
-
Insulating Oil Purifier, Transformer Oil Treatment Machine, Dielectric Oil Filtration PlantUS$ 3500 - 35000MOQ: 1 Set
-
2018 Newest High Standard Quality Vacuum Dehydration Transformer Oil Treatment EquipmentUS$ 5000 - 30000MOQ: 1 Set
-
JUNSUN-ZYD-100 Dielectric Oil Purifier With Weather Proof Metallic EncloserUS$ 5000 - 30000MOQ: 1 Set
1. Removes water, trace water from oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability

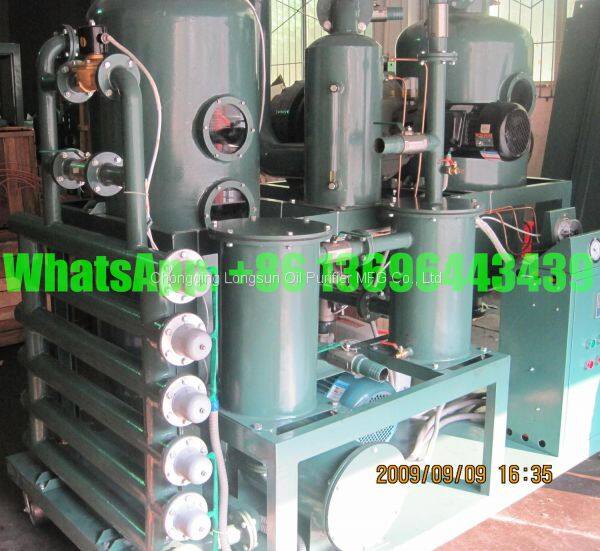

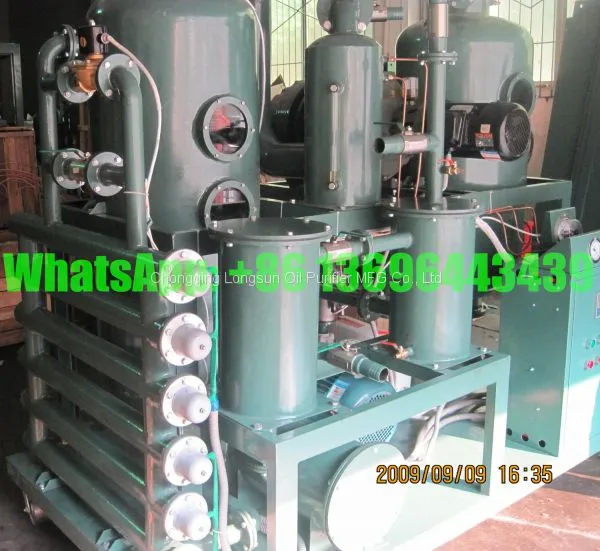

Weather Proof Dielectric Oil Treatment & Oil Dehydration Plant
is mainly used for purifying the insulating oil in all kinds of large power equipments that are above 110KV especially for the area, where height is over 500 meters.
Feature
1. High vacuum: High point-Vacuum
2. High absorption speed: Absorption speed power>=333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
4. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
5. Distinctive remove impurities system filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
6. Especially applied to vacuum oiling and drying for power transmission equipments that are over 110KV
7. Can be operated both on-load and off-load.
Advantage
Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working Vacuum |
MPa |
-0.08 ～ -0.099 |
|||||||
Working Pressure |
MPa |
≤ 0.3 |
|||||||
Temp Range |
℃ |
20 ～ 80 |
|||||||
Power Supply |
380V/ 50Hz/ 3Phase( As per your requirement) |
||||||||
Working Noise |
Db |
60 - 85 (Depended on the configurations) |
|||||||
Heating Power |
KW |
30 |
30 |
48 |
72 |
72 |
90 |
120 |
|
Total Power |
KW |
33 |
35 |
55 |
80 |
82 |
102 |
135 |
|
Inlet/Outlet Diam |
MM |
25 |
32 |
42 |
50 |
50 |
60 |
60 |
|
Weight |
KG |
450 |
550 |
750 |
950 |
1200 |
1850 |
2000 |
|
Size |
Length |
MM |
1450 |
1450 |
1750 |
1850 |
1950 |
2050 |
2150 |
Width |
MM |
950 |
1000 |
1250 |
1300 |
1350 |
1400 |
1450 |
|
Height |
MM |
1700 |
1750 |
1950 |
2000 |
2050 |
2100 |
2150 |
|
AFTER TREATMENT | |||||||||
Dielectric Strength |
KV |
≥ 70 |
|||||||
Water Content |
PPM |
≤ 5 |
|||||||
Gas Content |
% |
≤ 0.1 |
|||||||
Particle Size |
μ |
≤ 3 |
|||||||
KEYWORDS
transformer oil purifier, transformer oil purification, transformer oil filtration, transformer oil treatment, transformer oil dehydration, transformer oil regeneration, transformer oil filtering, transformer oil purifying, transformer oil processing, transformer oil reclamation, transformer oil reconditioning, transformer oil handling
