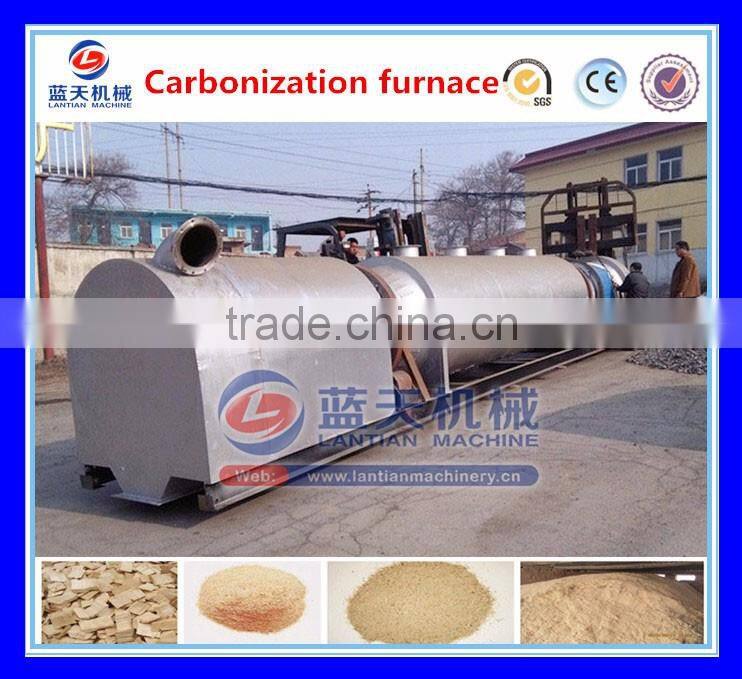

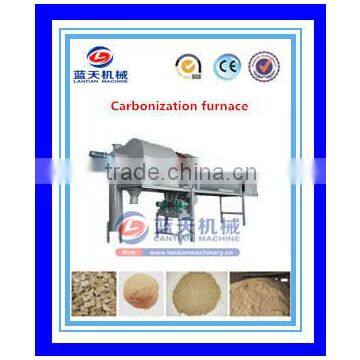

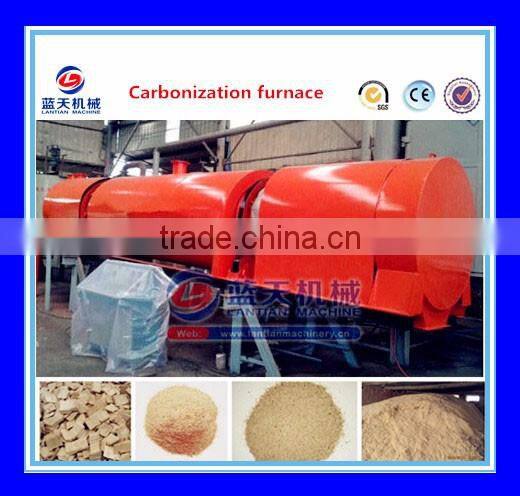

Newly Design Continous Sawdust Cabonization Stove/biomass Carbonization Furnace

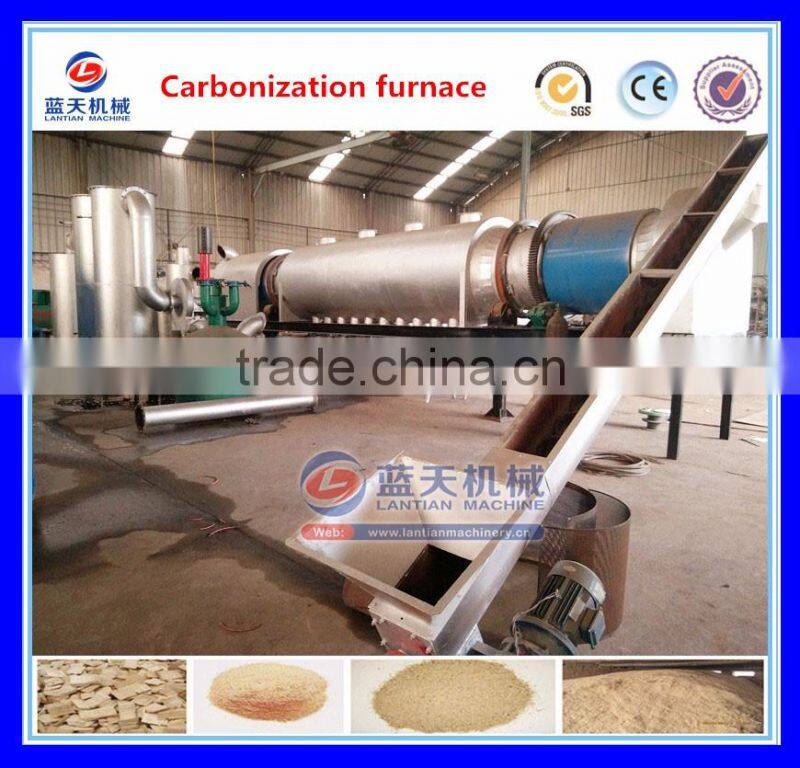

1.Working principle of biomass carbonization furance :
This machine is equipped with: Auto-feeding Conveyor,Biomass Gasifier equipment, Dust-Removal Device,Gas cleaner system, PLC touchscreen manual automatic dual-use electric control cabinet, Cooling and Discharging Conveyor,Carbonization furnace and other equipments.
Burning the raw material inside of the gasification furnace (as sawdust, shell, Palm shell, husk, straw, wood scrap etc.), the produced flue gas in pipeline within after spray pour, cooling purification, became combustible gas (carbon monoxide, methane, ethane,), as early carbonization of heat, heating and carbonizing the raw material inside of the carbonization furnace(as mechanism core rod, abandoned logs, bark, coconut shell, life garbage,etc.)
When the temperature reached to 300 degrees Celsius, carbonization furnace starting carbonizing of raw materials, producing smoke; flue gas become into a combustible gas after spray pour, cooling purification by the cooling purification system, continue carbonizing, then gasifier stop working.
2.Application of biomass carbonization furance:
Our continuous carbonization stove/furnace is mainly used for carbonizing:
(1)almost all of the biomass straw, fruts husk and wood scraps:
Such as Sawdust,Rice Husk,Groundnut Shell,Plants Straw, Tree Bark,Grinded Coconut shell,Bamboo dust,Bagasse,Cotton Stalk,Coffee Husk,Mustard Husk/Stalk,Pine Needles,Sugar Mill Waste,Jute Waste,Coir Pith and other wastes&residues like Castor Shell,Red Gram Stalk,Tobacco Stem,Tea Waste,Sander Dust,Wild Grasses,Shrubs and Sander dust etc.
(2) The Granule size of all aboved raw material should be less than 50 mm;if more than 50mm, configure a crusher.
3.The parts of testing the machine of biomass carbonization furance:
|

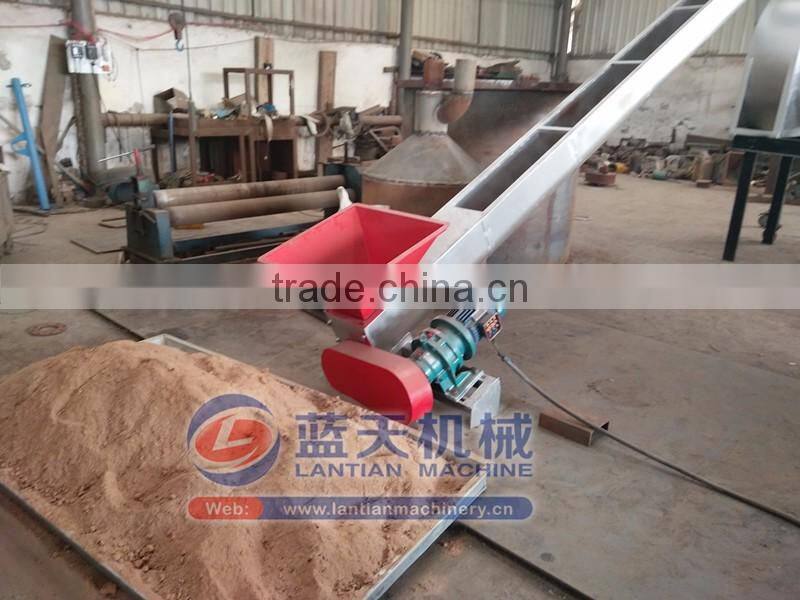

Name: Auto-feeding Conveyor Brand: Lantian. Function: to delivery the biomass raw materail into carbonization furnace. |
|

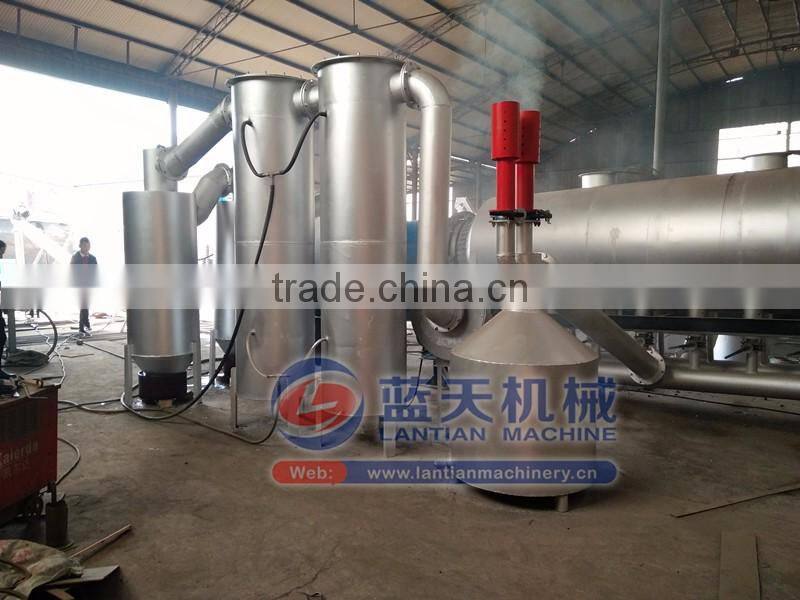

Name:Dust-Removal Device,Gas cleaner system Brand: lantian. Function: to dust-removal device and gas cleaner systerm to make the smoke for reusing. |
|
|

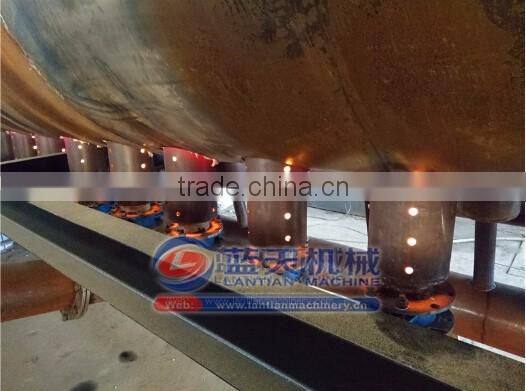

Name: fire-jet head. Brand: Lantian. Function: to burn the carbonization furnace for carbonizing the raw material. |
|

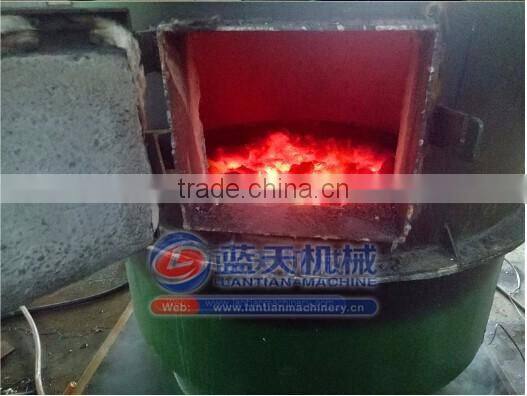

Name:gas stove Brand: Lantian. Function: to burn coal or gas to produce the heat for pre-heating the carbonization furance. |
|
4. Technical parameters of biomass carbonization furance:
| Type | Dimension | Capacity | Effective volumce(CBM) | Power(kw) | Voltage | Grandar size/moisture | |
| 130 TYPE | 0.8*10 | 200-300 | 3.5 | 26 | 380V | Granular size: | |
| 140 TYPE | 0.8*12 | 300-500 | 4 | 26 | 380V | No more than | |
| 150 TYPE | 1*10 | 400-600 | 5.5 | 28 | 380V | 50mm, if larger | |
| 160 TYPE | 1*12 | 600-800 | 6.5 | 28 | 380V | than 50mm, crush it into pieces | |
| 170 TYPE | 1.2*10 | 800-1000 | 7.5 | 30 | 380V | Moisture:No more than 30% | |
| 180 TYPE | 1.2*12 | 1000-1500 | 9 | 30 | 380V | 8%-15% is better, if more than 30%, need to dry it. |
Differences from usual carbonization furnace/stove:
1. Continue working, one side to feed sawdust one side to get charcoal
2. High capacity, one machine can get output 1.8-12 tons per 8 hours
3. Energy saving, it used itself smoke to make ,and also no smoke outside
4. Operation: it is easy to operate by a manual automatic dual-use electric control cabinet
Performance features:
1.)The combustible gas made by self generated flue gas can be used recycling, gasifier slag can be used as charcoal powder, direct sales, to achieve the effect of energy saving;
2.)The whole process without flue gas emissions, meet the national environmental protection requirements;
3.)Carbonizing out the maximum yield of charcoal in the shortest time, working continuously for 24 hours;
4.)2 people can operate the whole production line, easy to operate and maintenance, high production and efficiency;
5.)By-products:wood tar refining diesel oil, wood vinegar liquid can be used as pesticide, will waste to exploit to the greatest extent, no waste

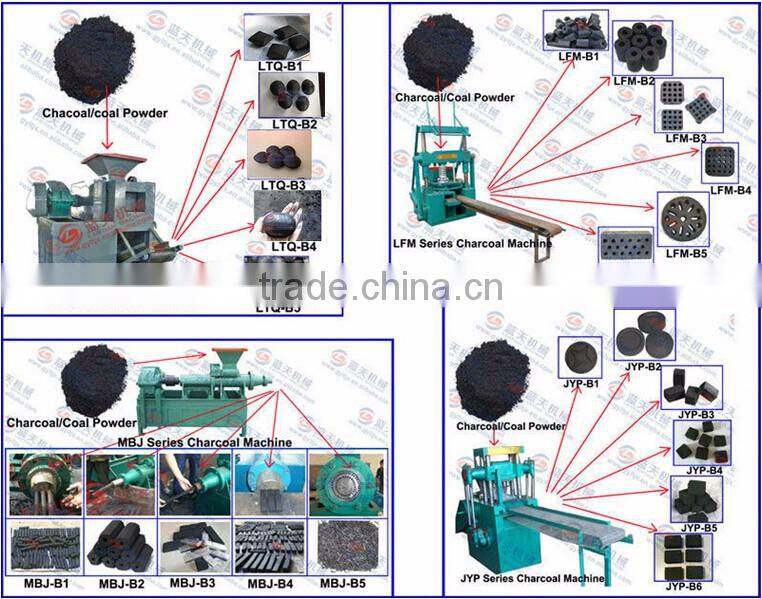

5. The Relative products :
1. Established in 1980s, our company covers an area of 100,000 square meters which includes 66,000 square meters of workshops. We have the most advanced technology, most strict process, from material purchase to the finished products, all strictly according to the national quality inspections standards.It mainly specilize in charcoal making machine, sawdust briquette machine,briquette machine,powder making machine,extruder machine, BBQ machine,honeycomb briquette machine,carbonization furnace,heat pump dryer and so on.
2. As manufactures, we have more than 30 years of experience, our products all achieved patent certificates, and our company has many times achieved the title of honer: " Observe Contract and Keep Promise" " Quality Trustworthy Product" "Good After-sales Service Reputation", etc.
