Specifications
Biomass Briquetting Machine1.No binder or noxious chemical need to use.
2.Highly effective
3.advanced Hot air drying system
Hot sale and highly effective Biomass Briquetting Machine
Introduction of biomass briquetting machine
Wood sawdust briquette press shows the features of high capacity, low energy consumption, compact and durable.
Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level.
Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts.
The out diameter of finished briquettes is 40-80mm.
Working principle of biomass briquetting machine
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The machine uses a large screw to grind,compress and extrude the biomass into briquettes.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass.
The natural lignin content in biomass is liberated under high pressure and temperature.
Lignin serves as the glue in the briquetting process, binds the particles of wood together,
thus binding,compressing the biomass to form into high density briquettes.
During this process, no binder need to be used.
So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires.
Features of biomass briquetting machine
1.No binder or noxious chemical need to use.
2.The humidity of the raw materials is controlled in 8-12%.
3.Using the advanced Hot air drying system with the perfect performance.
4.After the processing of High temperature, purification, smoke removing,
the carbonizing equipment transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.
Main technical parameter of biomass briquetting machine
Model | JMX-5 | JMX-6 | JMX-7 |
Power | 30KW | 37KW | 45KW |
Diameter of briquettes | 22mm—35mm | 22mm—35mm | 22mm—35mm |
Capacity | 800-1000kg/h | 1500-2000kg/h | 2000-3000kg/h |
Moisture | 10-20% | 10-20% | 10-20% |
Applied length | ≤3mm | ≤3mm | ≤3mm |
Products density | 0.8-1.4g/cm3 | 0.8-1.4g/cm3 | 0.8-1.4g/cm3 |
Dimension | 1800x900x1800 | 2500*1000*1900 | 2500*1000*1900 |
weight | 1500kg | 1800kg | 2000kg |
Belt conveyor | Width:500mm Length: 8000mm | Width:500mm Length:8000mm | Width:500mm Length:8000mm |
Note: The whole set of the machines include a conveyor and a control cabinet,
in addition the crushing machine is optional equipment available to be ordered.

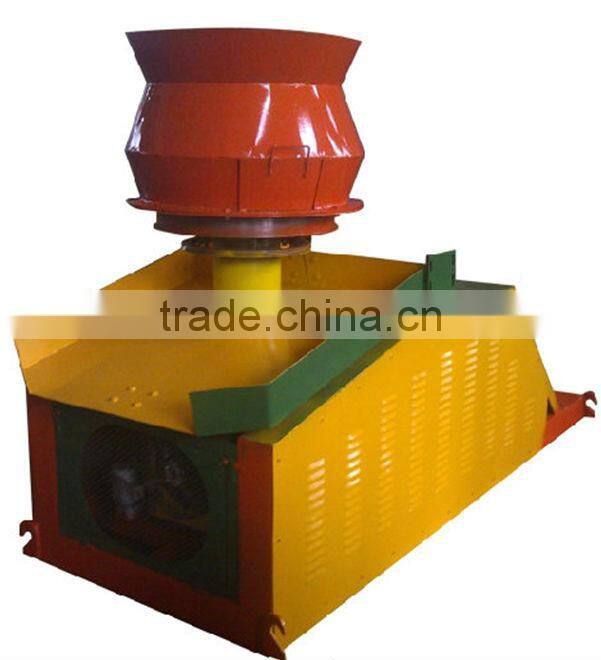

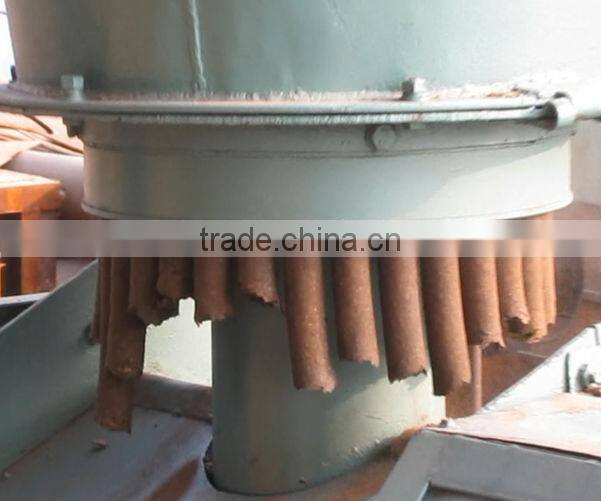

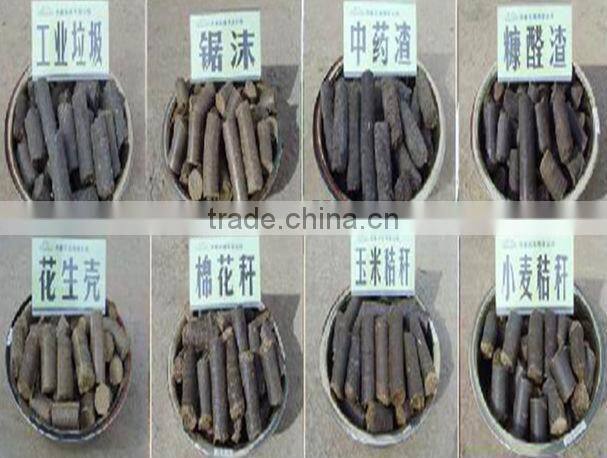

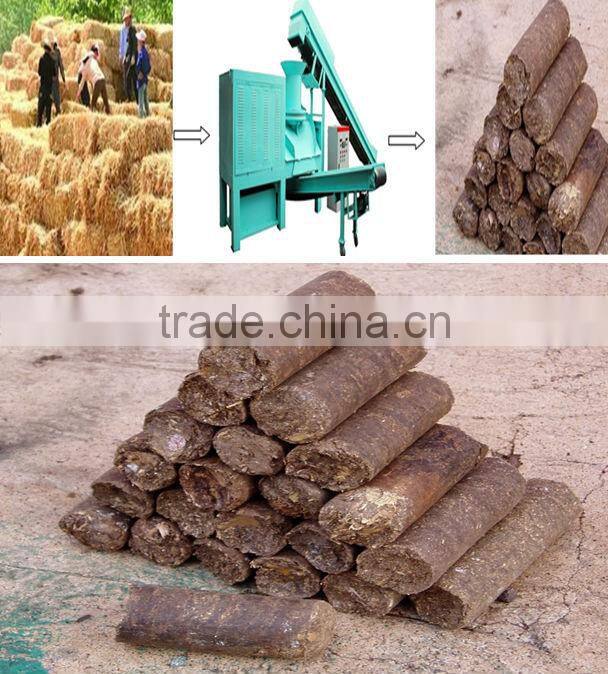

Picture Show of biomass briquetting machine
Kind Remind:
If you are interested in this machine, please detail your requirements while you are sending your inquiry,
the more, the better, so that we can give you the best recommendation.
Our Service & Cooperation:
1. Pre-sales service:
ü Sales person, project manager, technology engineer, accountant staff
ü Professional responsing-team: would be very fastly and exactly to send your offers
2. Online/sale service
ü Super and solid quality
ü Fastly delivery
ü Standard export package or as your demand
3. After-sales service
ü Assistance to build factory
ü Repairing and maintenance if any problem occur in warranty
ü Installation and clerks training
ü Spare and wearing parts for free or with big discount
ü Any feedback of machines can be told us, and we will try our best to support
4. Other cooperation service
ü Technology knowledge share
ü Factory building advising
