Hammer Mill Machine Grinding Pulverizer Machine

Hammer Mill Machine Grinding Pulverizer Machine photo-1
Hammer Mill Machine Grinding Pulverizer Machine photo-2
Hammer Mill Machine Grinding Pulverizer Machine photo-3
Hammer Mill Machine Grinding Pulverizer Machine photo-4
Hammer Mill Machine Grinding Pulverizer Machine photo-5
Hammer Mill Machine Grinding Pulverizer Machine photo-6
US$ 1,000 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YF
Model Number:
YFWC-22
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name YF
Model Number YFWC-22
Voltage Customized
Power(W) 22KW
Dimension(L*W*H) 1.6*1.1*1.3M
Weight 850kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Hammer Mill
The mill YFWC-22 have 16pcs hammers attached on the rotating rotor,  Source materials are feed into the crushing
chamber. the materials are milled by striking first against the rotating hammers and then against the liner.
If they are milled to the targeted size, then through the screen. If there are any larger-size particles that have failed to move through the screen, they go through the milling processes again.
Technical Parameter
Name
Hammer Mill
Model No.
YFWC-22
Capacity
850KG/h
Main Motor
22kw
Hammer number
16pcs
Net Weight
850kg
Size of feeding
<=5cm
Other type
YFWC-11,YFWC-15,YFWC-30,YFWC-37,YFWC-45
Detailed Images

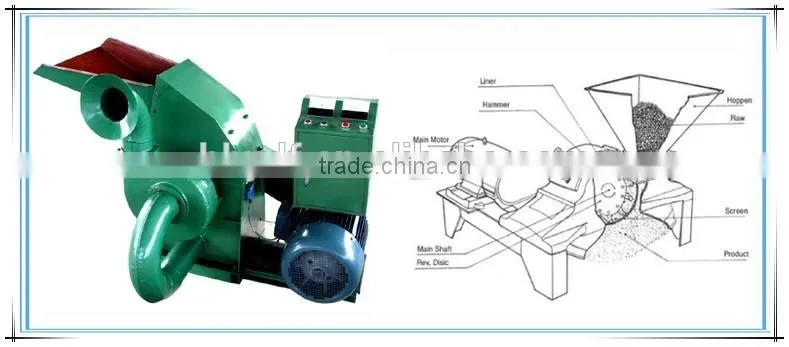

Main working constucture

Hammers


Cylcye


using rage

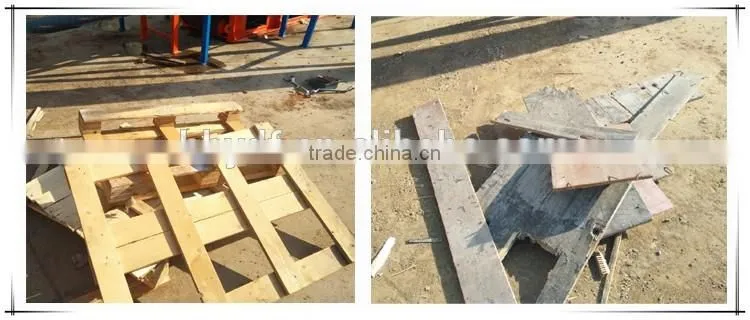

The input material  can be Wood logs, trunks,thickness within 5cm is better to work.


Sawdust



----size can be customized.

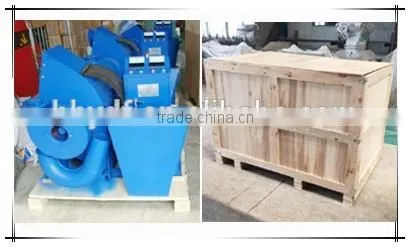

Packing & Delivery
wood case loading in our factory for carefully handing.





Usually shipping hammer mills by sea with container.
