Electric Motor Grinding Hammer Mill With Cyclone

Electric Motor Grinding Hammer Mill With Cyclone photo-1
Electric Motor Grinding Hammer Mill With Cyclone photo-2
Electric Motor Grinding Hammer Mill With Cyclone photo-3
Electric Motor Grinding Hammer Mill With Cyclone photo-4
Electric Motor Grinding Hammer Mill With Cyclone photo-5
Electric Motor Grinding Hammer Mill With Cyclone photo-6
US$ 1,000 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YF
Model Number:
YFWC-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name YF
Model Number YFWC-15
Voltage Customized
Power(W) 15KW
Dimension(L*W*H) 1.3*1*1.1M
Weight 420KG
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
                                                     Grinding Hammer Mill
The mill YFWC-15 have 16pcs hammers attached on the rotating rotor, Source materials are feed into the crushing chamber. the materials are milled by striking first against the rotating hammers and then against the liner.
If they are milled to the targeted size, then through the screen. If there are any larger-size particles that have failed to move through the screen, they go through the milling processes again.
Technical Parameter
Name
Hammer Mill
Model No.
YFWC-15
Capacity
700KG/h
Main Motor
15kw
Hammer number
16pcs
Net Weight
420KG
Size of feeding
<=5cm
Other type
YFWC-11,YFWC-22,YFWC-30,YFWC-37,YFWC-45
Detailed Images

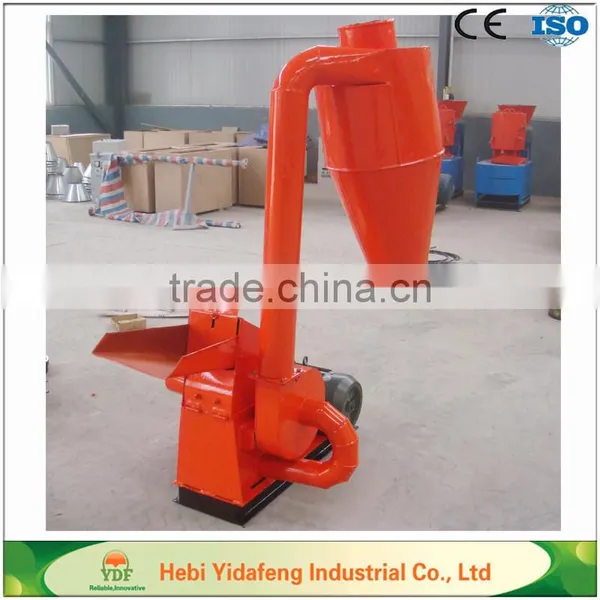

cyclone

 main working instructure

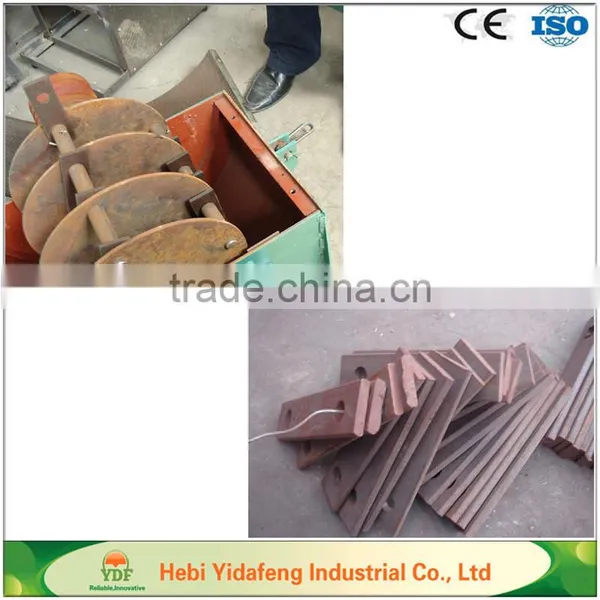

 Hammers


using rage

The input material  can be Wood, trunks,branches, thickness within 5cm is better for work.


Output sawdust


 size can be customized in 4-8mm.

Packing & Delivery
woodcase loading in our factory for carefully handing.





Usually shipping hamme mills by sea with container.

Related Products

Fine Fiber Miller

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Long fiber Extrator

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

EFB Pellets Machine

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Our Company


Hebi Yidafeng Industrial Co., Ltd (YDF), is leading supplier of solution, equipment and engineering for palm and coconut EFB chipping, crushing, long fiber extracting, EFB pelletizing; wood, straw and biomass chipping, crushing, pelletizing and etc.
The purpose of all our research and equipment designing is to promote the application of Wasted Empty Fruit Bunch and biomass utilization. In one hand, there is shortage of wood or straws in biomass fuel industry, converting shredded EFB fiber becoming a major contribution in renewable energy. In the other hand, we update the utilization technology of EFB, and reduce the wastes.


Why choose YDF?
1> YDF has worked on field, of turning wasted palm EFB and coconut shell into fibre, for over 5 years, both long fibre for making papers or mattress or geotextile, and short fibre for boiler fuel, making EFB pellets or briquettes, making fertilizer or compost.
2> We have done a lot of trial operation on palm EFB, and coconut shell.
3> We have exported more than 50 fiber production line to Malaysia, Thailand, Indonesia, Peru, etc. We cooperated with users for supervising machine performance in long terms.
4> We are reliable, and treasure our reputation. Fast delivery, fast replying to clients question.


Our exibition in Medan, Indonesia

Our case in Thailand

We visit custom in Malaysia
