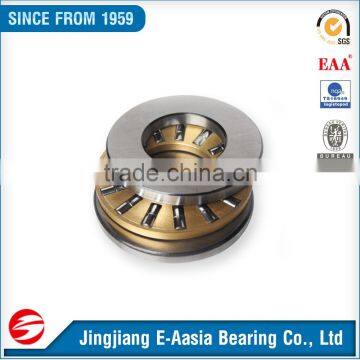

High speed thrust roller bearings 29332 for rolling mill roll neck
- 10000 Piece / Pieces per Month
- shanghai ningbo shenzhen HK
- Thrust Roller Bearings 100TPS143 254*428.625*101.6
- Thrust Spherical Roller Bearings 29256 9039256 280*380*60
- Plastic extruder gearbox bearing F-87920.T8AR thrust roller bearing
- single screw extrusion gearbox roller bearing F-86698.T4AR
- F-83053.T2AR Twin screw extruder gearbox
- F-82345.T2AR Tandem Thrust cylindrical roller Bearings
Product Details
Brand Name: | OEM | Bore Size: | 160, | Outside Diameter: | 270, |
Model Number: | 29332 | Precision Rating: | P0 P6 P5 P4 P2 | Seals Type: | Open |
Product Description
The Brief Description of Bearings:
1. The main components of cylindrical roller thrust bearing; the cylindrical roller and cage thrust assembies, the shaft washers, and the housing washers.
2.The cylindrical roller thrust bearings are simple in form and design. The bearings are produced in single row and double row designs.
3. The cylindrical roller thrust bearings are suitable for arrangements that have to support heavy axial loads.
4. And they are relatively insensitive to shock loads, are very stiff and requre little axial space. As standard they are available as single direction bearings and can only accommodate axial loads acting in one direction.
Thrust roller bearings for axial load mainly axial, radial joint load, but the radial load should not exceed 55% of the axial load. With the other thrust roller bearings, such bearings lower friction coefficient, high speed, and with self-aligning performance.
Thrust roller bearings are mainly used for heavy-duty machine tools, high-power marine gear boxes, oil rig, electrical and other machinery in the vertical.
Thrust roller bearings normally have 3 types:
1.Cylindrical roller thrust bearings : 811, 812, 893, 894,
2.Spherical roller thrust bearings: 292, 293, 294
3. Tapered roller thrust bearings
4. Needle roller thrust bearings: AXK
Series | For shaft diameter(In mm) | Features |
811 | 15 - 320 | single direction, comprising K811, GS, WS |
812 | 30 - 300 | single direction, comprising K812, GS, WS |
893 | 30 - 150 | single direction, comprising K893, GS, WS |
894 | 60 - 320 | single direction, comprising K894, GS, WS |
AXK | 4 - 160 | single direction, to DIN 5405-2 |
292..-E | 320 - 1800 | main dimensions to DIN 728/ISO 104, single direction, separable |
292..-E1 | 150 - 300 | main dimensions to DIN 728/ISO 104, single direction, separable |
293..-E | 460 - 1600 | main dimensions to DIN 728/ISO 104, single direction, separable |
293..-E1 | 85 - 440 | main dimensions to DIN 728/ISO 104, single direction, separable |
294..-E | 420 - 950 | main dimensions to DIN 728/ISO 104, single direction, separable |
294..-E1 | 60 - 400 | main dimensions to DIN 728/ISO 104, single direction, separable |
One-way thrust ball bearing, can endure one-way axial load
(511,512,513,514,532,533 Series):
511 Series:51100 51101 51102 51103 51104 51105 51106 51107 51108 51109 51110 51111 51112 51113 51114 51115 51116 51117 51118 51120 51122 51124 51126 51128 51130FP 51132FP 51134FP 51136FP 51138FP 51140FP 51144FP 51148FP 51152FP 51156FP 51160FP 51164FP 51168FP 51172MP 51176MP 51180MP 51184MP 51192MP 511/500MP 511/530MP 511/560MP
512 Series:51200 51201 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211 51212 51213 51214 51215 51216 51217 51218 51220 51222 51224 51226 51228 51230MP 51232MP 51234MP 51236MP 51238MP 51240MP 51244MP 51248MP 51252MP 51256MP 51260M 51264M 51268M 51272M
513 Series:51305 51306 51307 51308 51309 51310 51311 51312 51313 51314 51315 51316 51317 51318 51320 51322MP 51324MP 51326MP 51328MP 51330MP 51332M 51334M 51336M 51338M 51340M
514 Series:51406 51407 51408 51409 51410 51411 51412FP 51413FP 51414FP 51415FP 51416FP 51417FP 51418FP 51420FP 51422FP 51424FP 51426FP 51430FP
532 Series:53200 53201 53202 53203 53204 53205 53206 53207 53208 53209 53210 53211 53212 53213 53214 53215 53216 53217 53218 53220 53222 53224 53226 53228 53230MP 53232MP 53234MP 53236MP 53238MP
533 Series:53305 53306 53307 53308 53309 53310 53311 53312 53313 53314 53315 53316 53317 53318 53320 53322MP 53324MP 53330MP
Two-way thrust ball bearing, can endure two-way axial load. (522,523,542,543 Series):
522 Series:52202 52204 52205 52206 52207 52208 52209 52210 52211 52212 52213 52214 52215 52216 52217 52218 52220 52222 52224 52226 52228 52230MP 52232MP 52234MP
523 Series:52305 52306 52307 52308 52309 52310 52311 52312 52313 52314 52315 52316 52317 52318 52320 52324MP 52326MP 52328MP 52330MP 52334MP
542 Series:54205 54206 54207 54208 54209 54210 54211 54212 54215 54216 54217 54218 54220
543 Series:54305 54306 54307 54309 54310 54311 54312 54314 54315 54316 54317 54318 54320 54322MP
One-way thrust angular contact ball bearing(7602,7603 Series):
7602 Series:7602012TVP 7602015TVP 7602017TVP 7602020TVP 7602025TVP 7602030TVP 7602035TVP 7602040TVP 7602045TVP 7602050TVP 7602055TVP 7602060TVP 7602065TVP 7602070TVP 7602075TVP 7602080TVP 7602085TVP 7602090TVP 7602095TVP 7602100TVP
7603 Series:7603020TVP 7603025TVP 7603030TVP 7603035TVP 7603040TVP 7603045TVP 7603050TVP 7603055TVP 7603060TVP 7603065TVP 7603070TVP 7603075TVP 7603080TVP 7603085TVP 7603090TVP 7603095TVP 7603100TVP
Two-way thrust angular contact ball bearing(2344,2347 Series):
2344 Series:234406M.SP 234407M.SP 234408M.SP 234409M.SP 234410M.SP 234411M.SP 234412M.SP 234413M.SP 234414M.SP 234415M.SP 234416M.SP 234417M.SP 234418M.SP 234419M.SP 234420M.SP 234421M.SP 234422M.SP 234424M.SP 234426M.SP 234428M.SP 234430M.SP 234432M.SP 234434M.SP 234436M.SP 234438M.SP 234440M.SP 234444M.SP 234448M.SP 234452M.SP 234456M.SP 234460M.SP 234464M.SP 234468M.SP 234472M.SP 234476M.SP 234480M.SP
2347 Series:234706M.SP 234707M.SP 234708M.SP 234709M.SP 234710M.SP 234711M.SP 234712M.SP 234713M.SP 234714M.SP 234715M.SP 234716M.SP 234717M.SP 234718M.SP 234719M.SP 234720M.SP 234721M.SP 234722M.SP 234724M.SP 234726M.SP234728M.SP 234730M.SP 234732M.SP 234734M.SP 234736M.SP 234738M.SP 234740M.SP 234744M.SP 234748M.SP 234752M.SP 234756M.SP 234760M.SP 234764M.SP 234768M.SP 234772M.SP 234776M,SP 234780M.SP
Thrust cylindrical roller bearing(811,812 Series):
811 Series:81102LPB 81103LPB 81104TVPB 81105TVPB 81106TVPB1 81107TVPB 81108TVPB 81109TVPB 81110TVPB 81111TVPB 81112TVPB 81113TVPB 81114TVPB 81115LPB 81116LPB 81117LPB 81118LPB 81120LPB 81122LPB 81124MPB 81126LPB 81128MPB 81130MPB 81132MPB 81134MPB 81136MPB 81138MPB 81140MPB 81144MPB 81148MPB 81152MPB 81156MPB 81160MB 81164MPB 81166MB 81172MPB 81180MB 81184MB 81188MB 81192MB 81196MB
812 Series:81206TVPB 81207TVPB 81208TVPB 81209TVPB 81210TVPB 81211TVPB 81212LPB 81213LPB 81214LPB 81215LPB 81216LPB 81217LPB 81218LPB 81220LPB 81222MPB 81224MPB 81226MPB 81228MPB 81230MPB 81232MPB 81234MPB 81236MPB 81238MPB 81240MPB 81244MPB 81248MB 81252MB 81256MB 81260MB 81272MB 81276MB
Spherical thrust roller bearing(294E,293E,292E):
294E Series:29412E 29413E 29414E 29415E 29416E 29417E 29418E 29420E 29422E 29424E 29426E 29428E 29430E 29432E 29434E 29436E 29438E 29440E 29444E 29448E 29452E 29456E 29460E 29464E 29468E 29472E.MB 29476E.MB 29480E.MB 29484E.MB 29488E.MB 29492E.MB 29496E.MB 294/500E.MB 294/530E.MB 294/560E.MB 294/600E.MB 294/630E.MB 294/710E.MB
293E Series:29317E 29318E 29320E 29322E 29324E 29326E 29328E 29330E 29332E 29334E 29336E 29338E 29340E 29344E 29348E 29352E 29356E 29360E 29364E 29368E.MB 29372E.MB 29376E.MB 29380E.MB 29384E.MB 29388E.MB 29392E.MB 29396E.MB 293/500E.MB 293/530E.MB 293/750E.MB 293/800E.MB 293/850E.MB
292E Series:29240E.MB 29244E.MB 29248E.MB 29252E.MB 29256E.MB 29260E.MB 29264E.MB 29268E.MB 29272E.MB 29276E.MB 29280E.MB 29284E.MB 29288E.MB 29292E.MB 29296E.MB 292/500E.MB 292/530E.MB 292/560E.MB 292/600E.MB 292/630E.MB 292/670E.MB 292/750E.MB 292/800E.MB
Products Show:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
1. Price --Highest quality and most competitive price.
2. Warranty----- We provide 1year warranty for all bearings.
3. Delivery fast -----Goods will be sent out within 3 to 5 days for ex-stock.
4. Best service-----Answering e-mails or solving questions quickly.We are 24 hours online.
5.Save freight.---we have many cooperative forwarders to help you choose the best shipping ways.
