51214 thrust ball bearings imported iron used in making steel machinery
- 10000 Piece / Pieces per Month
- shanghai ningbo fujian HK
- Heavy duty large size thrust ball bearings 5617/650\t1687/650
- 51113 high performance thrust ball bearing 65*90*17mm
- China supplier Axial thrust ball bearing U152Y20 power plant spare parts
- New parts bearing 561-22-72961 for KOMASTU Machine
- Thrust Ball Bearings 5691/800 91681/800 800*950*120
- Komatsu Parts Bearing HD465-7 S/N 7001-UP 06000-32056 Bearings
Product Details
Brand Name: | OEM | Bore Size: | 70, | Outside Diameter: | 105, |
Model Number: | 51214 | Precision Rating: | P0 P6 P5 P4 P2 | Seals Type: | Open |
Product Description
The Brief Description of Thrust Ball Bearing:

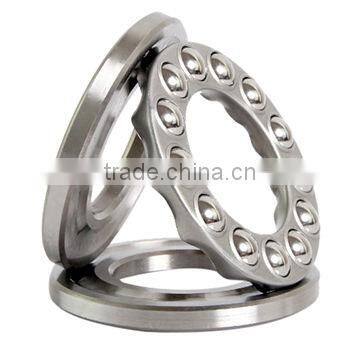

Thrust ball bearings consist of shaft washer, housing washer, steel balls and a cage. The ring matched with shaft is called shaft washer, matched with housing is called housing washer. According to the acceptance of situation divide into one-way thrust ball bearings and two-way thrust ball bearings. One-way thrust ball bearings can withstand one-way axial load. Two-way thrust ball bearings can withstand two-way axial load. Two-way thrust ball bearings with ring and shaft. The installation of housing washer are spherical bearings with self-aligning properties, can reduce the impact of installation errors. Thrust ball bearings can not bear radial load, and have a lower speed limits. They can be applied to steering system and main shaft of machinery.
Thrust ball bearings can be devided into single direction and double . Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load. Double direction thrust ball bearings can accommodate axial loads acting in both directions and can thus serve to axially locate a shaft in both directions. They must not be subjected to radial load.
Type available:
a) Single-direction thrust ball bearings
b) Double-direction thrust ball bearings
c) Single-direction thrust angular contact ball bearings
d) Double-direction thrust angular contact ball bearings
e) Non-standard thrust ball bearings
Model No. | 52308 Thrust ball bearing |
Thrust ball bearing Boundary Dimension(mm) | 30*78*49 |
Thrust ball bearing Basic Rated Load(KN)-Dynamic( C ) | 61.8 |
Thrst ball bearing Basic Rated load(kn)-Dynamic(CO) | 122 |
Thrust ball bearing Limiting Speed | 3000 |
Thrust ball bearing Vibration | ZV1,ZV2,ZV3(Under your demand) |
Seals Type Open | Open |
Thrust ball bearing Precision | P0/P6/P5/P64 |
Weight(kg) | 1.05kg |
Thrust ball Bearing Retainer | Nylon,steel,brass(Under your demand) |
Thrust ball Bearing Windage | CO,C2,C3,C4,C5(Under your demand) |
Quality Standard | ISO9001 |
Thrust ball bearing Lubrication way | Oil or Grease |
Thrust ball bearing Material | Chorm steel,carbon steel,stainless steel(Under your demand) |
Thrust Ball Bearing Catalog:
Bearing No. | Main size(mm) | Basic Load RATING(N) | Speed rating(r/min) | |||||
d | D | T | Cr | Cor | Grease | Oil | ||
52202 | 10 | 32 | 22 | 16.6 | 24.8 | 4900 | 7500 | |
52204 | 15 | 40 | 26 | 22.3 | 37.7 | 3900 | 6000 | |
52205 | 20 | 47 | 28 | 27.7 | 50.4 | 3600 | 5500 | |
52305 | 20 | 52 | 34 | 35.7 | 61.4 | 3100 | 4800 | |
52206 | 25 | 52 | 29 | 28.1 | 54.3 | 3400 | 5200 | |
52306 | 25 | 60 | 38 | 62.8 | 78.7 | 2700 | 4200 | |
52207 | 30 | 62 | 34 | 40.7 | 83.8 | 2900 | 4500 | |
52307 | 30 | 68 | 44 | 55.5 | 105 | 2400 | 3700 | |
52208 | 30 | 68 | 36 | 46.9 | 98.3 | 2700 | 4200 | |
52308 | 30 | 78 | 49 | 69.3 | 135 | 2100 | 3300 | |
52209 | 35 | 73 | 37 | 47.7 | 105 | 2600 | 4000 | |
52309 | 35 | 85 | 52 | 80 | 163 | 1900 | 3000 | |
52210 | 40 | 78 | 39 | 48.5 | 111 | 2300 | 3600 | |
52310 | 40 | 95 | 58 | 91.6 | 186 | 1800 | 2700 | |
52211 | 45 | 90 | 45 | 69.4 | 159 | 2100 | 3200 | |
52212 | 50 | 95 | 46 | 73.6 | 179 | 1900 | 3000 | |
52213 | 55 | 100 | 47 | 74.8 | 189 | 1900 | 2900 | |
52214 | 55 | 105 | 47 | 73.6 | 189 | 1800 | 2800 | |
52215 | 60 | 110 | 47 | 77.4 | 209 | 1800 | 2700 |
1. Price --Highest quality and most competitive price.
2. Warranty----- We provide 1year warranty for all bearings.
3. Delivery fast -----Goods will be sent out within 3 to 5 days for ex-stock.
4. Best service-----Answering e-mails or solving questions quickly.We are 24 hours online.
5.Save freight.---we have many cooperative forwarders to help you choose the best shipping ways.
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
