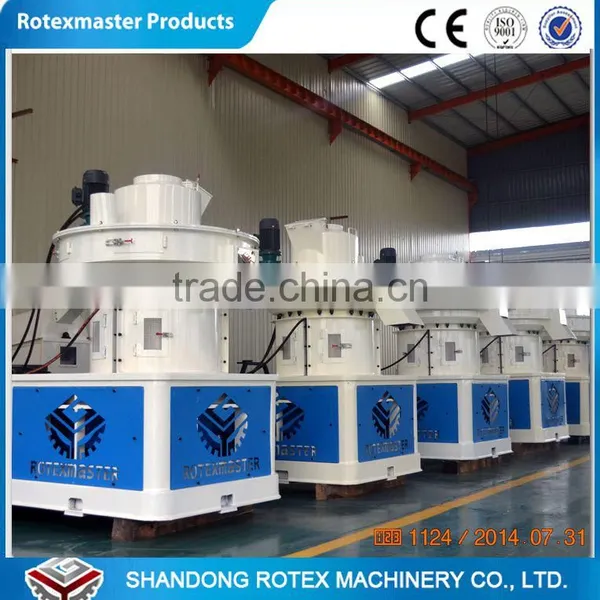

[ROTEX MASTER] 2016 Vertical Ring Die Wood Pellet Machine ,pellet Press 1-1.5T/Hour YGKJ560 With Automatic Lubrication photo-1
[ROTEX MASTER] 2016 Vertical Ring Die Wood Pellet Machine ,pellet Press 1-1.5T/Hour YGKJ560 With Automatic Lubrication photo-2
[ROTEX MASTER] 2016 Vertical Ring Die Wood Pellet Machine ,pellet Press 1-1.5T/Hour YGKJ560 With Automatic Lubrication photo-3
[ROTEX MASTER] 2016 Vertical Ring Die Wood Pellet Machine ,pellet Press 1-1.5T/Hour YGKJ560 With Automatic Lubrication photo-4
[ROTEX MASTER] 2016 Vertical Ring Die Wood Pellet Machine ,pellet Press 1-1.5T/Hour YGKJ560 With Automatic Lubrication photo-5
[ROTEX MASTER] 2016 Vertical Ring Die Wood Pellet Machine ,pellet Press 1-1.5T/Hour YGKJ560 With Automatic Lubrication photo-6
US$ 30 - 300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ROTEX MASTER
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name ROTEX MASTER
Model Number YGKJ560
Voltage 380/400/415v
Power(W) 90kw
Weight 100 kg
Certification CE ISO9001 SGS, CE ISO9001 SGS
Warranty Spare Parts
After-sales Service Provided Engineers available to service machinery overseas

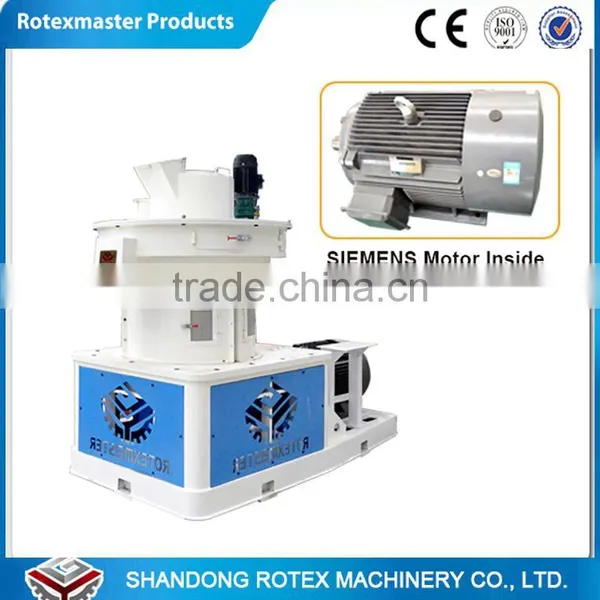

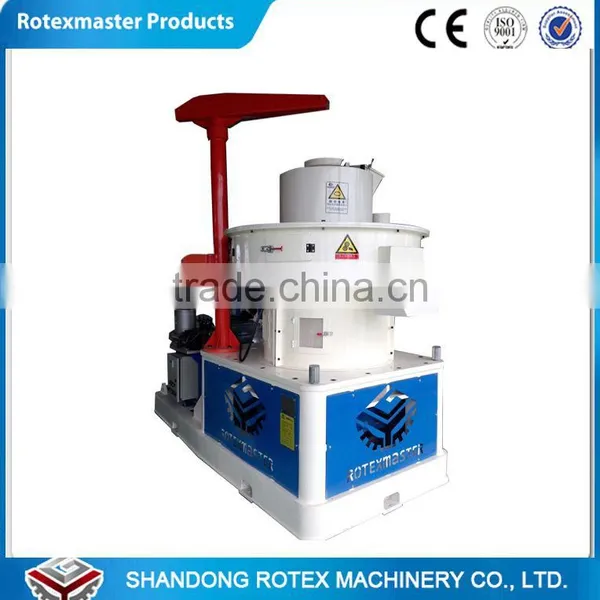

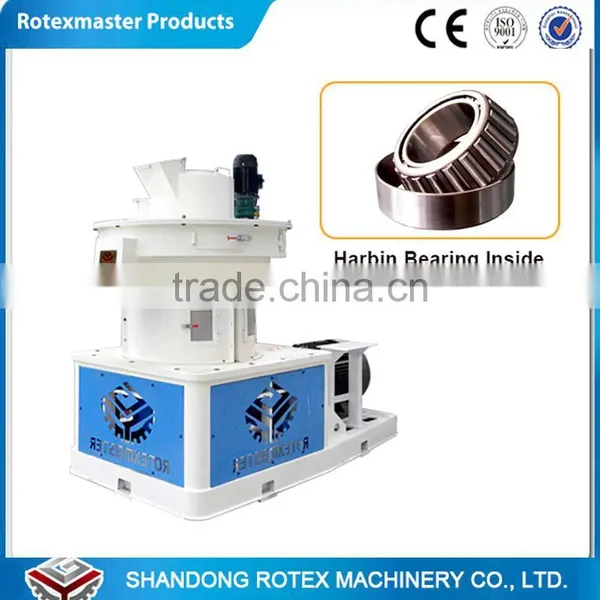

[ROTEX MASTER] 2016 Vertical ring die wood pellet machine pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication







[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication

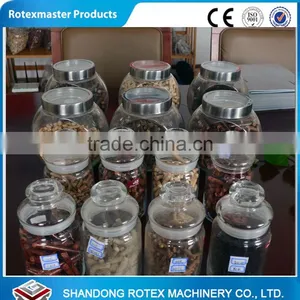

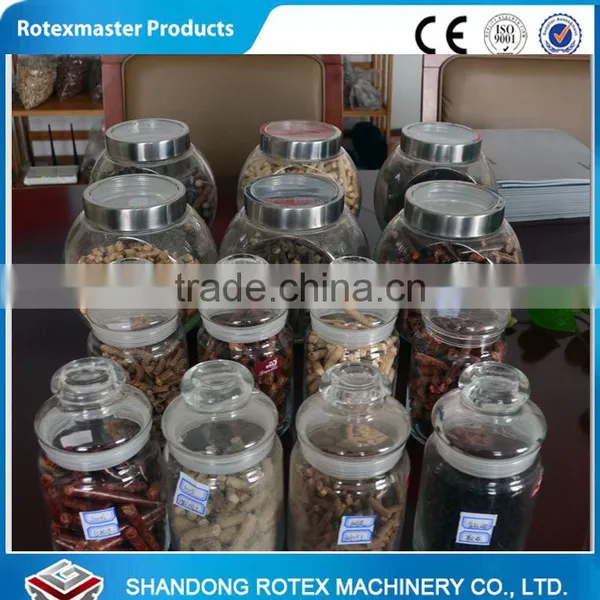

Wood Pellet Making Machine can produce 2-8mm pellets, last pellet length can be adjusted optionally. The wood pellet machine is mainly applicable to crude fiber granulation ,such as: sawdust, rice husk ,cotton stalk, cotton seed hull, weeds and all kinds of crop straw, home wastage, waste plastics and the factory waste, the material of low adhesion rate, difficult to forming.



[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication



YGKJ series vertical ring die pellet machine is an ideal dense compression molding rquipment.



Vertical feeding, directly in pelletizing room.



Die is static, rollers rotate, materials are evenly distributed around pelletizing room because of centrifugal force, no block.



Double-layer die. Two layer both can be used for reduce the cost. High efficiency and save energy.



Ring-die and vertical structure are good for cooling the pelletizing room.



Independent and frequent conversion discharge device can ensure the formation rate of pellet.



[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication



[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication



[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication



Model

Power (kw)

Diameter(mm)

Capacity(t/h)

Measurement(mm)

Weight(t)

YGKJ450

55+1.5+1.1+0.37+0.55

4-12

0.8-1.2

2384*1006*1916

4.0

YGKJ560

90+1.5+1.5+0.37+0.55

4-12

1-1.5

2600*1300*2300

5.5

YGKJ680

160+2.2+1.5+0.37+0.55

4-12

1.5-2.5

3300*1500*2300

8.5

YGKJ850

220+3+0.37+2.2+0.55

4-12

2.5-3.5

3800*1830*3080

15

YGKJ1050

315+5.5+0.37+1.5+0.55

4-12

4-5

4200*2200*3600

25








[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication





[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication















[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication



[ROTEX MASTER] 2016 Vertical ring die wood pellet machine ,pellet press 1-1.5T/Hour YGKJ560 with Automatic lubrication



1Q: General questions to design the production line for you?



  A:1. What is your raw materials? (to confirm mould pressure ratio of machines )



     2. What is the moisture content of your raw material?



     3. How many output capacity do you want per hour / month/ year?



Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And please provide us above detailed information, then we would design the most suitable production line with reasonble offers.



 2.Q: How long is your guarantee?



    A: 12 months warranty but except quick waering parts.



 3.Q: Will you send engineers to install the machines?



    A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory at once. Our engineers will help you to install the machines and training your workers how to operate the machines and mentain the machine,



4. Q: Voltage requirement ?



    A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
