how to make wood pellet / wood pellet making machine

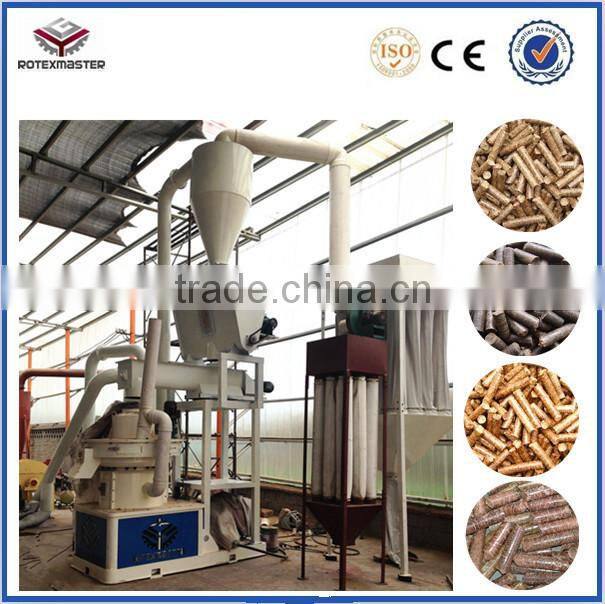

vertical ring die wood pellet machine is a well used wood pellet making machine for industrial use ,capaicty is big and low consumption ,mainly used in wood pellet plant to make biomass pellet for as clean and environmental fuel .
our main Vertical fing die wood pellet machine is YGKJ560, YGKJ680,YGKJ850
material is wide : not only wood log , or wood chips, sawdust, also can from wood residue from furniture proeduction , floor , photo frame production , and rice husk, coconut shell, olive waste , efb , straw is good material to make wood pellet
Parameter of wood pellet machine
Model | Power KW | Diameter mm | Output t/h | Dimension mm | Weight t |
YGKJ560 | 90+1.5+0.37+1.5+0.55 | 4-12 | 1-1.5 | 2600*1300*2300 | 5.8 |
YGKJ680 | 160+1.5+0.37+1.5+0.55 | 4-12 | 1.5-2.5 | 3300*1500*2300 | 8.5 |
YGKJ850 | 220+3+0.55+2.2+0.55 | 4-12 | 2.5-3.5 | 3800*1830*3080 | 15 |

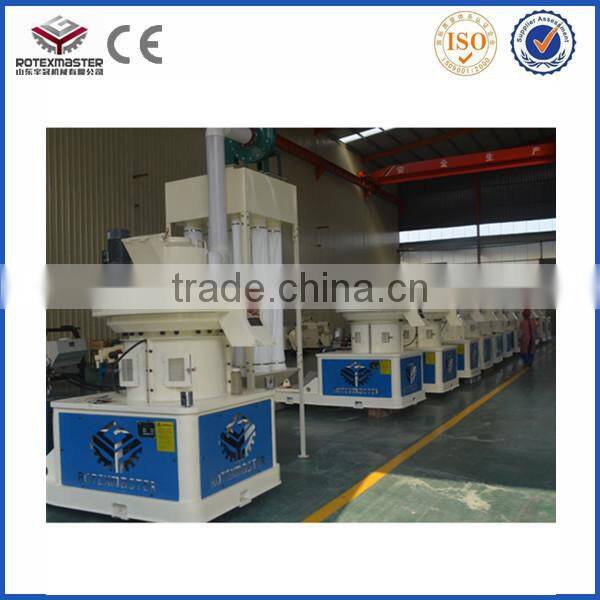

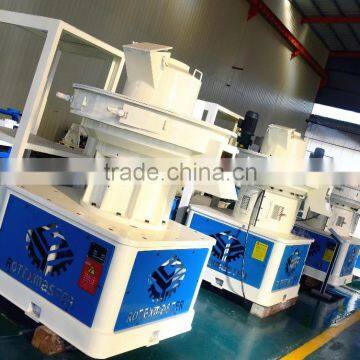

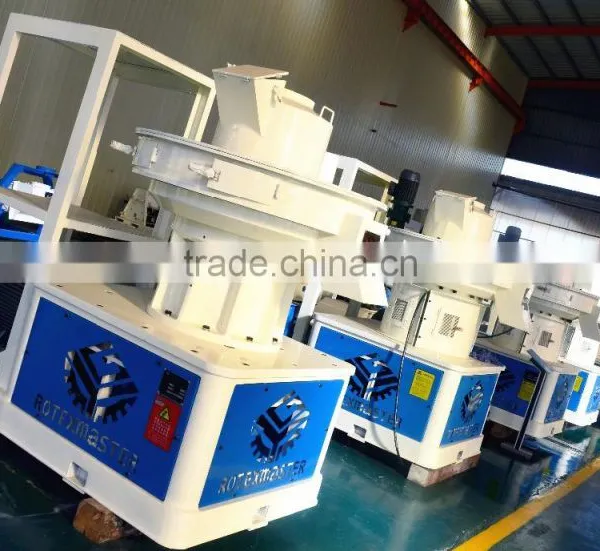

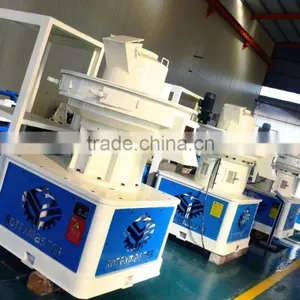

Rotexmaster wood pellet machines
the Rotexmaster wood pellet machine has these advantages
1.vertical ring die design , make material feed evenly and smoothly ,avoid working jam henomenon
2. vertical ring die design will bring the eough pressure to make wood pellet , the pellet density is 1.1-1.3 , it don't need press long time in the pressing room like horizontal ring die pellet mill .so the formation is high too , 98.6%
3. Rotexmaster biomass pellet machine has oil pump ,can lubricate bearings automatically , can save your time and protect bearings better so it can make our pellet machine work 24hrs without stop
4. the cooler and bag dust collector,dust collecting room , cooler can draw out the heat from press room directly , protect the bearins to be some extent , and bag dust collector and dust collecting room , keep clean working envirionment
5. recuder transmission, more safe and wear resistant , to protect the main shaft . better than belt conveyor and self -made big gear wheel transmission ,we adpot GUOMAO brand recuer , they are international company , quality gurantee
6. Siemensbei motor ,save u electricity , low consumtion and Harbin standard bearing, high quality guarantee
7. new improved with adding the lifting equipment , solve the difficulty to change die and rollers without forklift

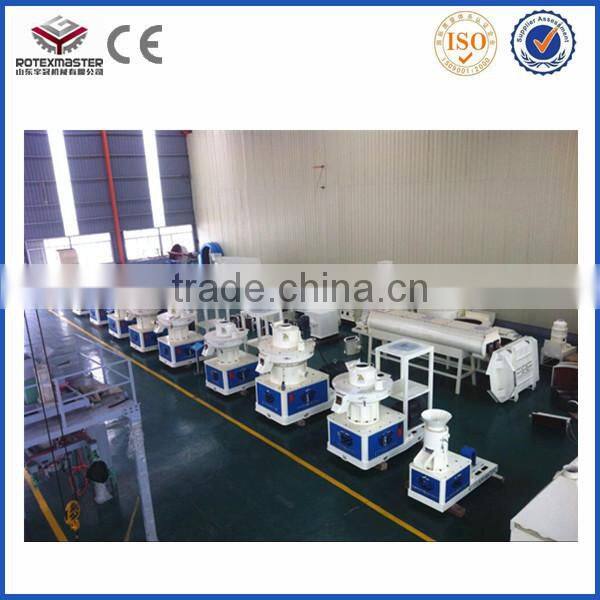

we are Shandong Rotex Machinery , one of the top and fast developing manufacturers in China
CE ISO Patent , reliable quality , with better price and service
1.wood pellet machine and related machines, maily including wood crusher , wood chipper , hammer mill etc
2.animal feed pellet machine and related machinery ,including the feed grinder , mixer
3.fertilizer machine
1. professional guide
2. engineers available to service machinery onverseas
3. warranty 1 year , except for wear parts
fessional after sale servive team , solve your problems
