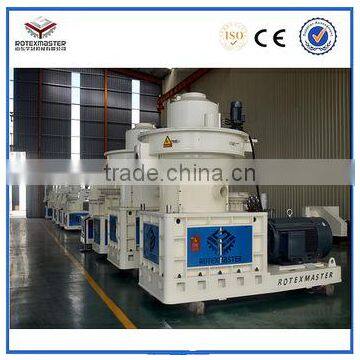

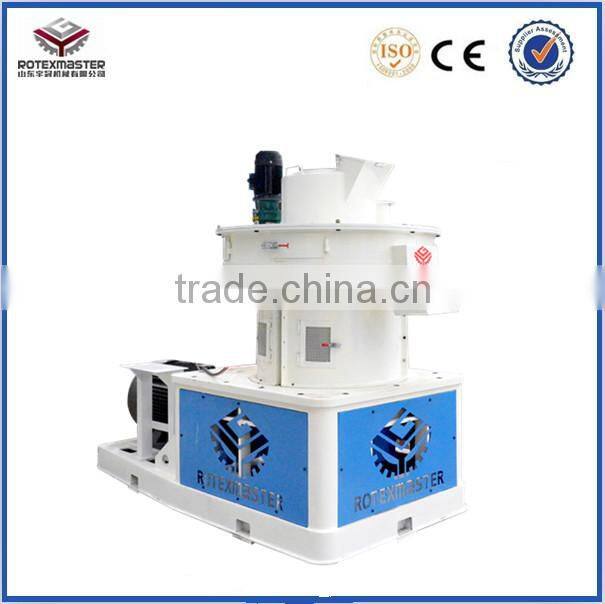

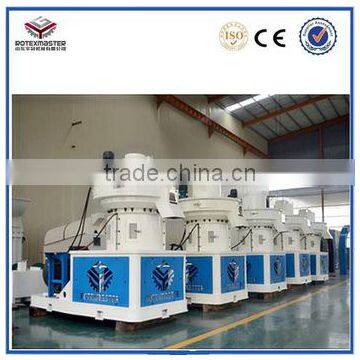

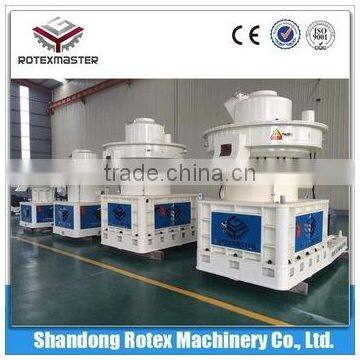

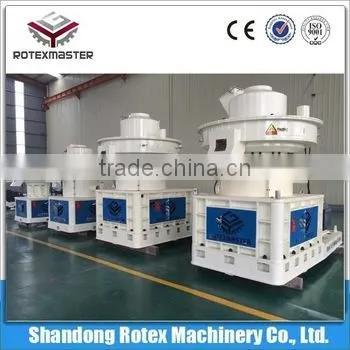

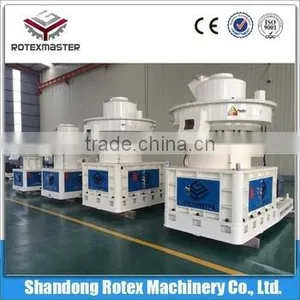

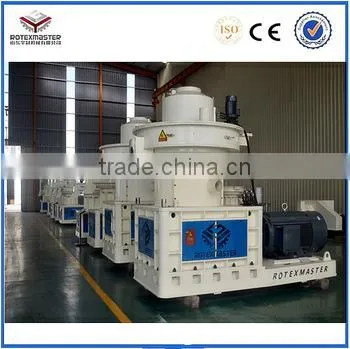

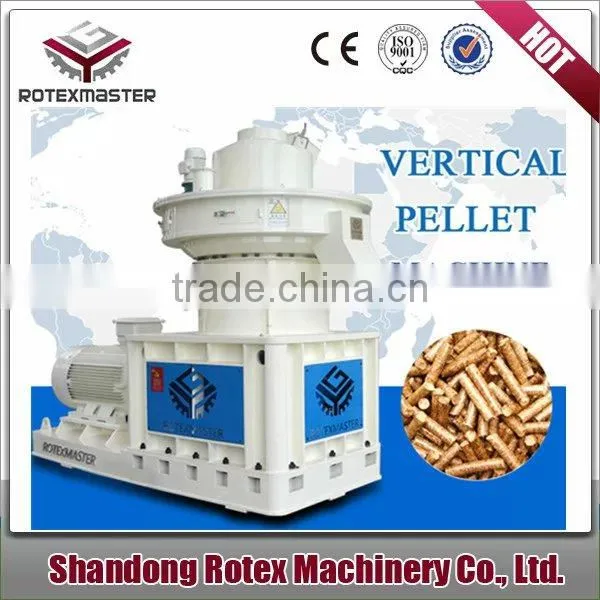

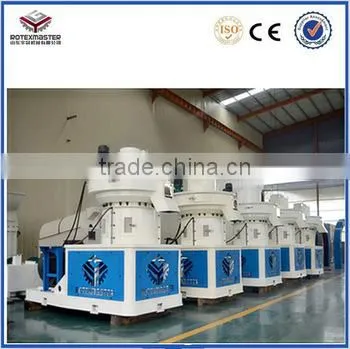

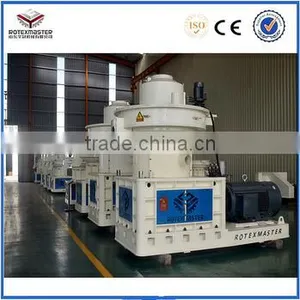

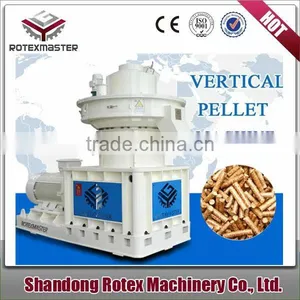

vertical ring die sawdust wood pellet machine with 6mm or 8mm sawdust pellet
Usage of CE certification biomass wood pellet machine rotexmaster
- Wood pellet machine is used for making wood pellet from waste material ,such as rice husk,wood sawdust, palm fiber,grass ,alfalfal ,empty fruit bunch,straw,etc.
- Finished wood pellet usually 6-8mm diameter,moisture usually <8% ,it is widely used in home stove,hotel ,bath place,factory,electric power generator ,cabinet,boiler,horse bed,et
tthe introduction of CE certification biomass wood pellet machine rotexmaster
- Ring die mold, vertical structure, granulating chamber cooling.Material feed directly in pellet forming chamber.
- Double layers rind die mold, down & up dual-use, low cost, high efficiency and energy saving.
- Die static, two roller rotating, and material centrifugal, evenly around.
- Frequency adjusted feeding screw conveyor or belt conveyor,make sure the material can feed in time by adjust the speed of screw conveyor motor ,so make sure the high capacity.
- The main press components adopt high alloy wear resistant material, the service life of wearing parts is two times than similar products.
- Fully automatic lubrication pump,you just add enough high temperature oil,then it lubricate the two roller and main shaft automatically with timming time,make sure the sawdust pellet machine can work continuously more than 20hours.
- Accuracy gear reducer box drive ,reducer all sealed ,save power ,make sure the ring die wood pellet machine work more efficiency and stable.
Technical parameters of CE certification biomass wood pellet machine rotexmaster
Model | Power (kw) | Pellet Diameter (mm) | Mould Dia. (mm) | Output Capacity (t/h) | Dimension (mm) | Weight (t) |
YGKJ560 | 90 | 4-12 | 560 | 1.2-1.5 | 2600*1300*2300 | 5.8 |
YGKJ680 | 160 | 4-12 | 680 | 1.5-2.5 | 2900*1300*2400 | 8.5 |
YGKJ850 | 220 | 4-12 | 850 | 2-3 | 3750*1650*3250 | 15 |
. We need to know:
A.What capacity would your prefer?-----The capacity for vertical ring die pellet mill model
YGKJ550-II is 1.5-2T/H.
B.What is your raw material?-----According to different raw material(such as hard wood,soft
wood,straw,rice hust), capacity is different.
C.What is your raw material size?-----Best size for pressing high quality pellets is 3mm.
D.What is the moisture of your raw material?-----Better to be 10-15%.
We can also supply for CE certification biomass wood pellet machine rotexmaster
1.Hammer Mill
2.Wood crusher
3.Wood chipper
4.Drum dryer
5.Packing machine
6.Whole pellet making production line from the volume 0.5 ton to 20 ton/h.

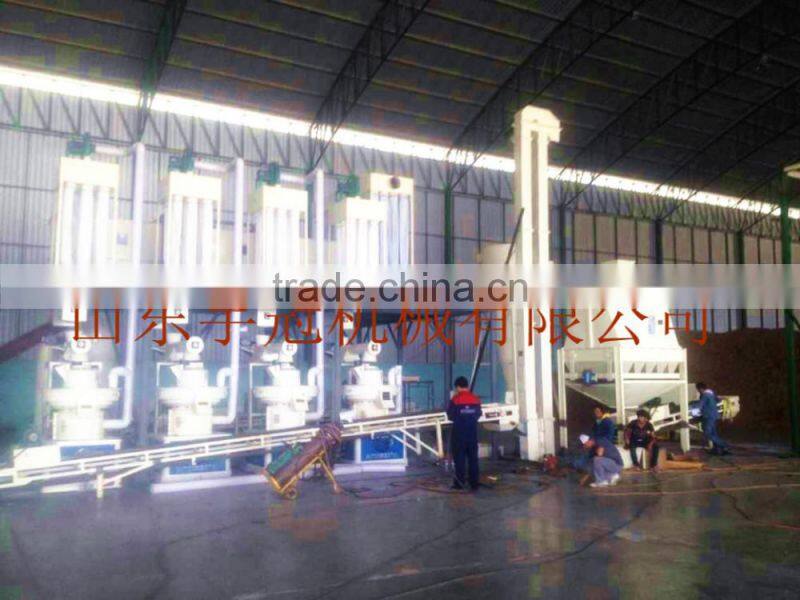

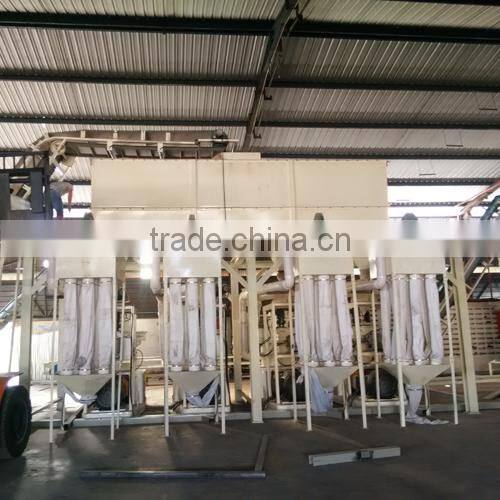

Completely Pellet Line designed for customers:

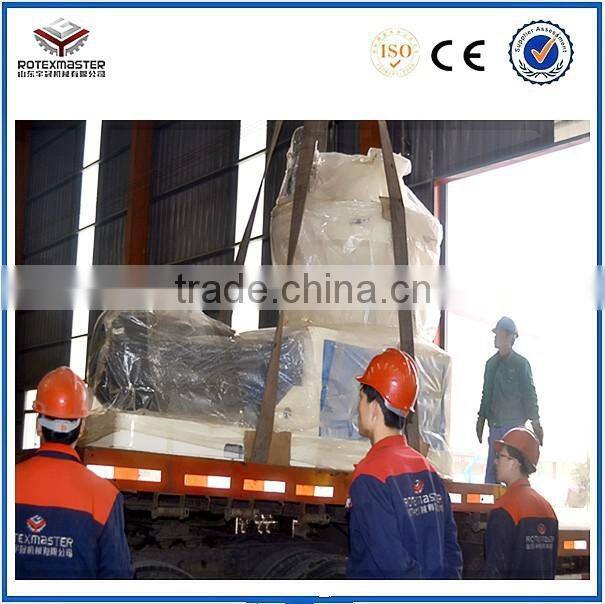

delivery photos
our company
Shandong Rotex Machinery Co., Ltd is a collection of scientific research, development, production, operating as one of the modern machinery manufacturing enterprises. We have a strong technical force ,advanced production technology ,perfect afar -sale service Design and manufacturing are: Feed pellet machine, charcoal processing complete sets of production line equipment ,agriculture machinery ,forestry machinery and equipment and other high quality products .With the sophisticated processing equipment ,complete detection means, high- quality products, good reputation ,first -class after -sales service our company with the trust of customers at home and abroad.
Companies adhering to the "customer first, forge ahead "business philosophy adhere to the principle of "customer first "for the general customers to provide quality service.
Welcome the users from all walks of life to visit the company guidance.
