CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine

CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine photo-1

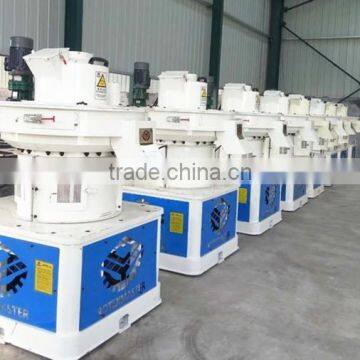

CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine photo-2

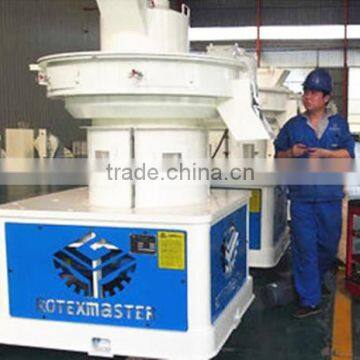

CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine photo-3

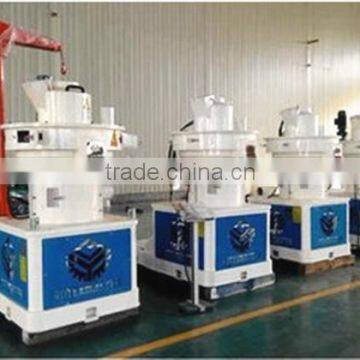

CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine photo-4
CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine photo-5
CE Approved Wood Pellet Mill / Sawdust Wood Pellet Mill / Press Machine photo-6
US$ 25,000 - 28,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Rotexmaster
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Rotexmaster
Model Number YGKJ560
Voltage 380v, 400v, 415v, 220v
Power(W) 90+1.5+1.5+0.37+0.55kw
Dimension(L*W*H) 2600*1300*2300mm
Weight 5.8T
Certification CE ISO Patent
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

CE Approved wood pellet mill / sawdust wood pellet mill /pellet press machine

Product Description





Vertical ring die wood  pellet machine is a specially designed well  used  wood

pellet making machine for  industrial used due to  capaicty is big and low

consumption , widely used in wood pellet  factory  .

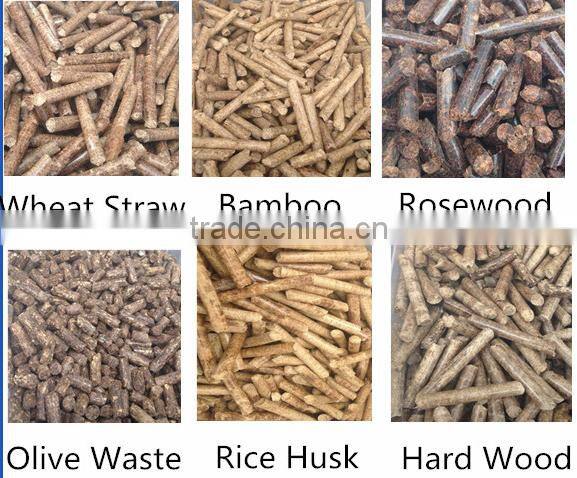

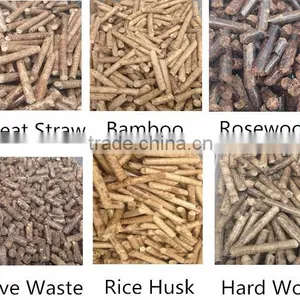

Material is wide : wood log  , or wood chips, sawdust, also  can from wood

residue from   furniture proeduction ,  floor , photo frame production ,and rice husk,

coconut shell,  olive waste ,sugarcane bassage,  efb , straw ,stalk ,bamboo ,

forestry waste, agricultrual waste etc

Please kind confirm raw material, different material may need different equipment.





We have these four model wood pellet machine to recommend u , please confirm your output .

Please kind refer to the parameter .

 Parameter of YGKJ wood pellet making machine



Model

Power KW

Diameter

  mm

Output

t/h

Dimension

mm

Weight

 t

YGKJ450

55+1.1+1.5+0.37+0.55

4-12

0.6-0.8

2450*940*1670

4

YGKJ560

90+1.5+0.37+1.5+0.55

4-12

1-1.5

2600*1300*2300

5.8

YGKJ680

160+1.5+0.37+1.5+0.55

4-12

1.5-2.5

3300*1500*2300

8.5

YGKJ850

220+3+0.55+2.2+0.55

4-12

2.5-3.5

3800*1830*3080

15





















CE Approved wood pellet mill / sawdust wood pellet mill / press machine

 CE Approved wood pellet mill / sawdust wood pellet mill / press machineCE Approved wood pellet mill / sawdust wood pellet mill / press machineCE Approved wood pellet mill / sawdust wood pellet mill / press machineCE Approved wood pellet mill / sawdust wood pellet mill / press machineCE Approved wood pellet mill / sawdust wood pellet mill / press machine





Rotexmaster wood pellet machine has these advantages



1.Vertical ring die design ,avoid  working  jam henomenon

2. Vertical ring die design will bring the eough torque force  to make wood pellet ,

pellet density is 1.1-1.3 ,it don't need press long time in the pressing room , no

need water So the formation is high to 98.6%.

3. Rotexmaster biomass pellet machine has oil pump  ,can lubricate bearings

automatically ,can save your time and protect bearings better so it can make our

pellet machine work 20hrs

4. The cooler and bag dust collector,dust collecting room  , cooler can draw out

the heat from press room directly , protect the bearings to be some extent

5. Siemensbei motor ,save u electricity , low consumtion

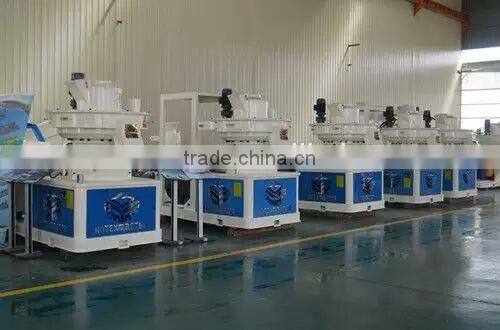

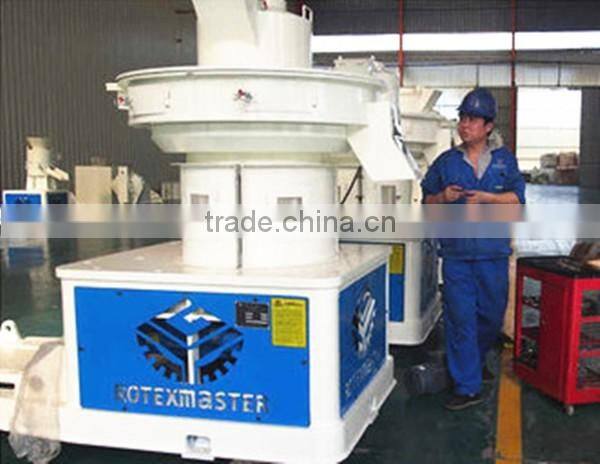

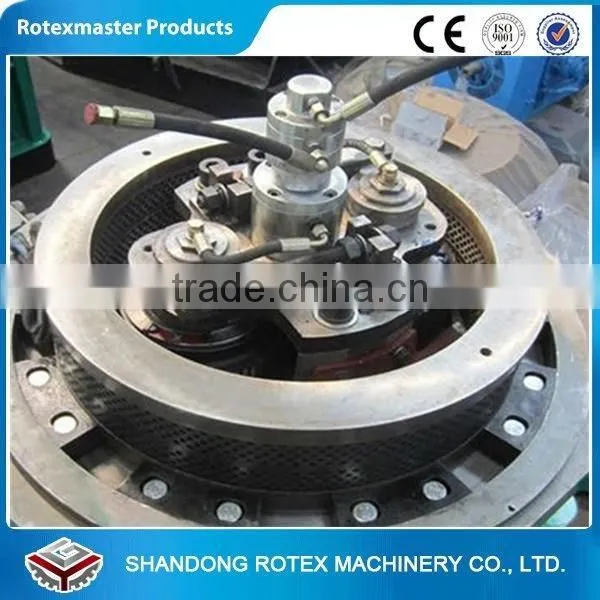

YGKJ560 wood pellet machine ---Vertical  ring die design

CE Approved wood pellet mill / sawdust wood pellet mill / press machine

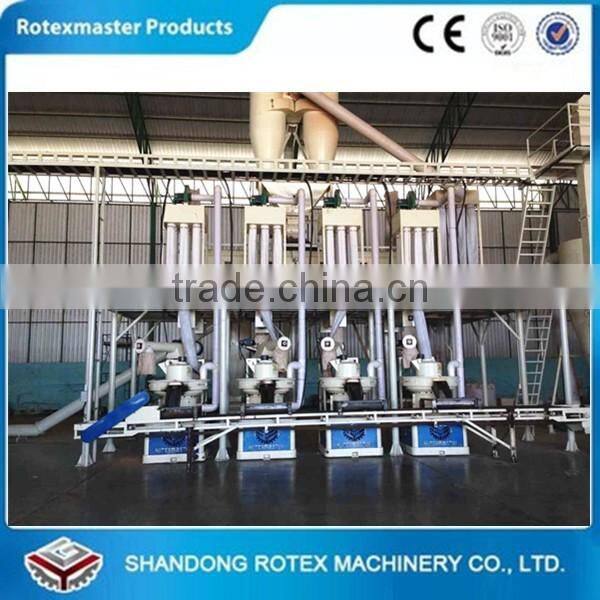

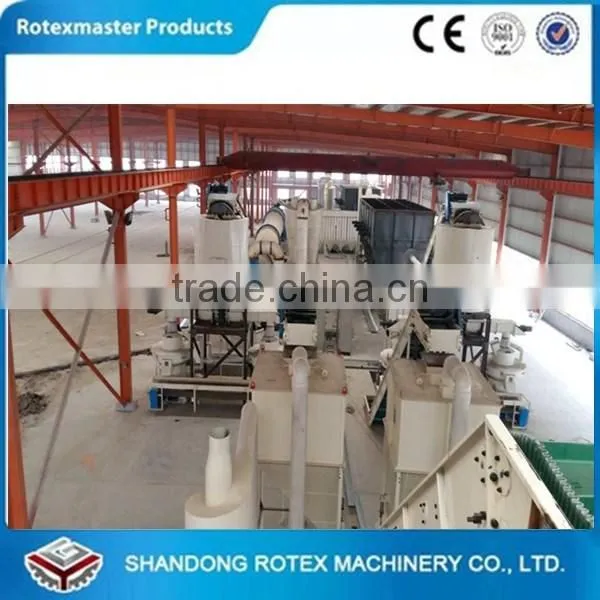

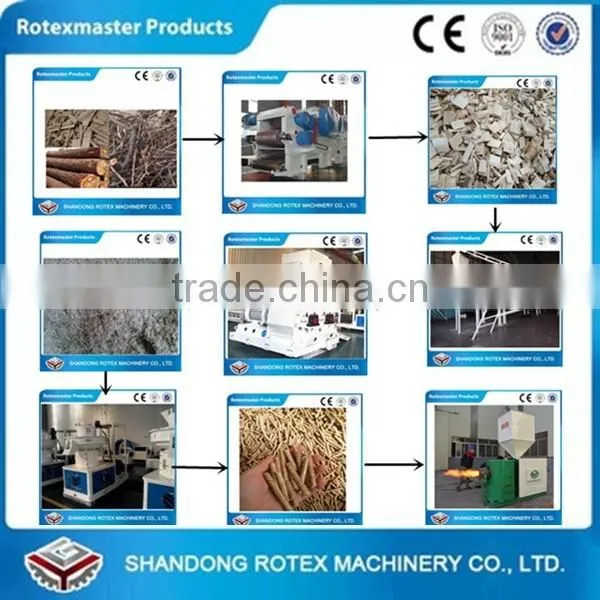

A complete wood pellet line to process wood into pellets

CE Approved wood pellet mill / sawdust wood pellet mill / press machine

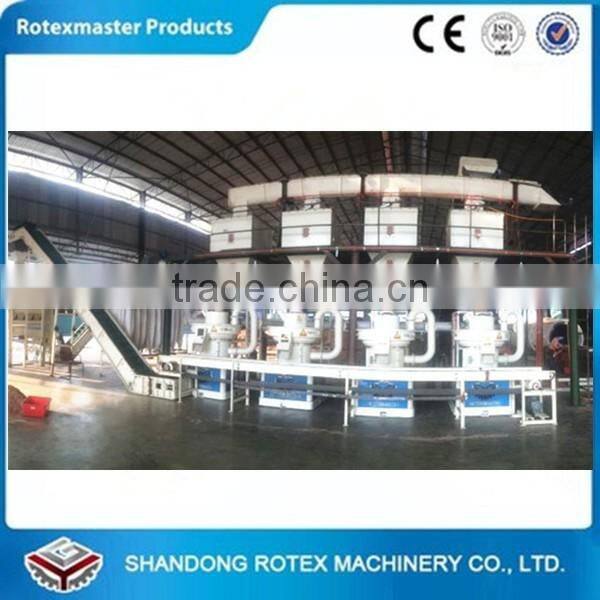

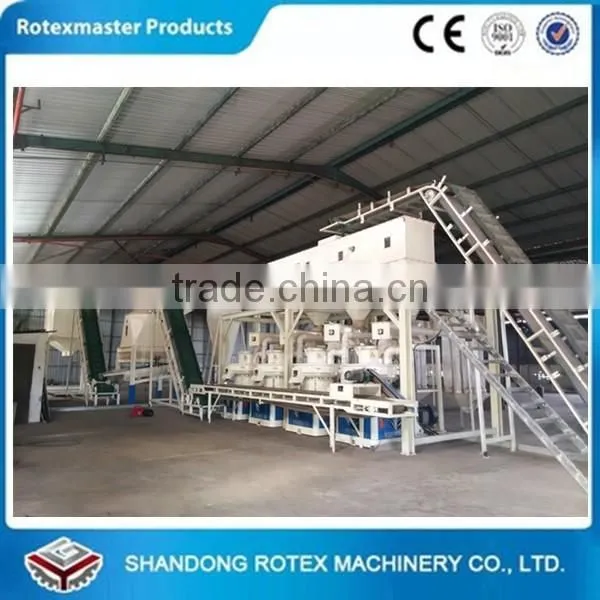

A 12t/h wood pellet line with 4sets YGKJ850 wood pellet mill

 CE Approved wood pellet mill / sawdust wood pellet mill / press machine

A 5t/h wood pellet line to refer to

CE Approved wood pellet mill / sawdust wood pellet mill / press machine



 CE Approved wood pellet mill / sawdust wood pellet mill / press machine

 CE Approved wood pellet mill / sawdust wood pellet mill / press machine

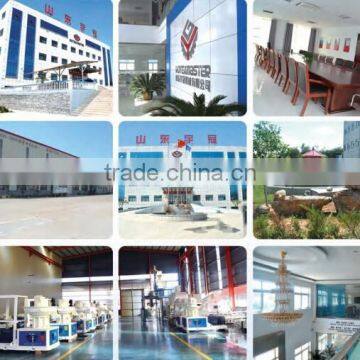

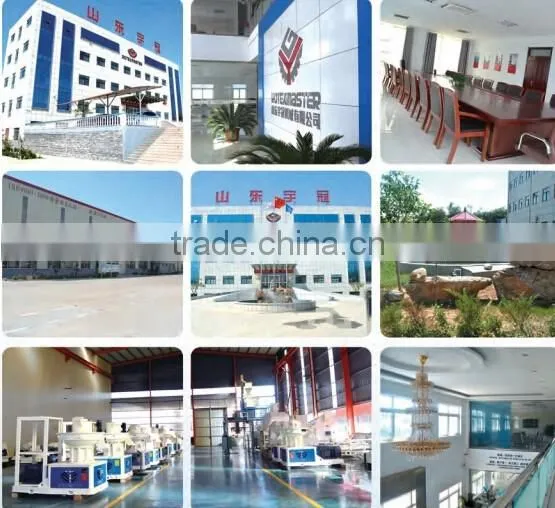

Company Information





Quality is our Culture, Also our advantage.
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,
manufacturing, international trade as a whole, registered capacity is 10 million Yuan,
more than 200 staff. Strong technical force, advanced production technology,perfect
after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,organic
fertilizer and Municipal Solid Waste processing equipment, agricultural equipment,
forestry equipment, etc.

Our service

1.Professional guide when u choose pellet machines, we will make most suitable proposal according to yourmaterial details and demand.

2.Quality inspection , we insist quality is first , all machines CE ISO SGS

3. Experienced installation , make your machines run in shortest time. We have 6

installation teams and thechinicians guidance . Engineers available to service

machinery overseas.

4. Gurantee 1 year, any problems in working, we solve free , if  too big problems , we

assign our engineer to solve your problems.



CE Approved wood pellet mill / sawdust wood pellet mill / press machine





Welcome visit  our factory , if any questions,u can contact Emily
