US$ 40,000 - 45,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Rotex Master
Contact Supplier Request Quote Chat Now
Shandong Rotex Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port or China other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name Rotex Master
Model Number YGKJ 680
Voltage 380V Or customed
Power(W) 160+0.37+0.55+1.5+1.5 kw
Dimension(L*W*H) 2900*1300*2400 mm
Weight 8500 kg
Certification CE & ISO9001 & SGS
Warranty One year except the spare parts
After-sales Service Provided Engineers available to service machinery overseas

[ROTEX MASTER] China biomass pellet making machine

YGKJ series 560/680/850 Pelle Machine

  Email: machine04(at)    Mob: 0086 186 1568 7605

skype: pelletindustry04        whatsapp: 0086 186 1568 7605

1:The detailed introduction of the YGKJ680 Wood pellet machine:

(1) Die material:stainless steel

(2): Power :160kw,50hz,380v,3Phase

(3): 2 rollers in it.

(4): double layers vertical ring die :double its working life

(5): capacity:2-2.5 t/h

(6): warranty: one year except spare parts

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

A: warm tips: All stainless steel die working hour is 3000/2 hours. While

All alloy steel die working hour is 2000/2 hours, which from professional ROTEX MASTER.

If die lifetime can reach 3000 hours, die will not be a spare parts.

B:Reducer transmission: Reducer brand is Guomao, a listed company hasing 17,000,000 sales amouts.

    Driving with high precision gears, automatic lubricant pump system keeps the reducer

    working stability and warranty period.

    Compared with gearbox made by suppliers, the reducer can last longer and practical.

C:Motor brand is Siemens beide, which is save energy than common motor.

D:Working time of the model and roller must be more than 2000 /2 hours.

E:If any problem with the wearing parts during the warranty period ,

   we can send a new one to you for discount price.

F:If any problem with the machine if you use it normally,

   we can repair for you for free.

2. Our Machine's Technical Parameter



Model

Power (KW)

Pellet Dia.

 (mm)

Output

kg/h

Dimension

(mm)

Weight

(t)

YGKJ560

90+1.5+0.37+1.5

4-12

1-1.5

2600*1300*2300

5.8

YGKJ680

160+1.5+0.37+1.5

4-12

2-2.5

3300*1500*2300

8.5

YGKJ850

220+3+0.37+2.2

4-12

3-3.5

3800*1830*3080

15



3:the spare parts of the YGKJ680 Wood pellet machine:

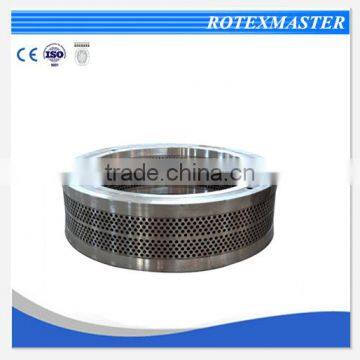

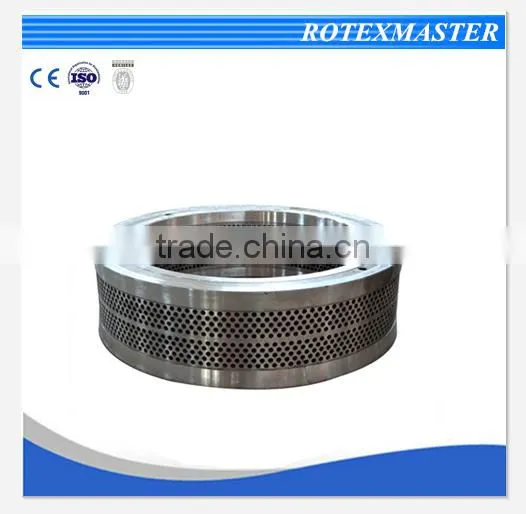

(1)The die:

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

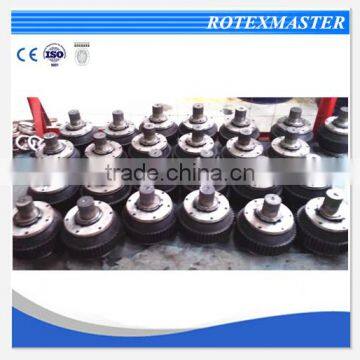

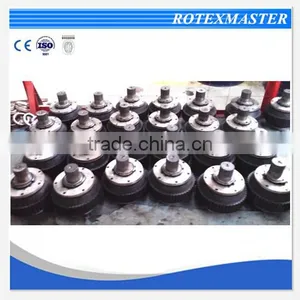

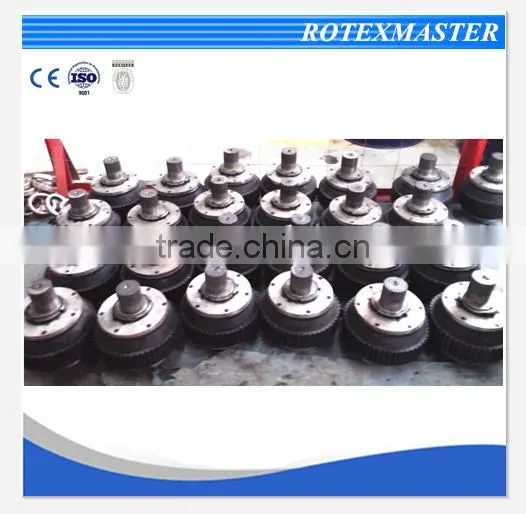

(2)The roller:

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

(3)the automatic lubrication system:

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

(4)The electric control cabinet of YGKJ680 Wood pellet machine:

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

(5):The working on site of the double vertical ring die :

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

(2)Package and Shipment

[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine[ROTEX MASTER] YGKJ Series ring die china biomass pellet making machine

5:If you're interested in our complete wood pellet MILL PLUS line,

pls kindly tell us the following information:

1. What's the capacity you want?

2. What's the raw material?

3. What's the size of the raw material?

4. What's the moisture content?

5. What's the final pellet size do you want?

6. Automatic packing or manual packing needed?

7. What's your country voltage?



Jenny Lei

Skype:pelletindustry04

QQ:1935713593

Office phone:86-0531-83318718

Office fax:86-0531-83769999

www.rotexmachine.com

Machine04 AT rotexmaster.com



Wish you have a nice day!

Please leave an inquiry below to know more details about

the video of the production line,the price,packing,shipping,and discount,etc.

We can reply at the first time.
