High Capacity Rice Husk Pellet Machine/ rice husk pellet as fuel machine
Brief of Wood Pellet Machine
Wood pellet machine can produce dia.4-12mm pellets, its length can be adjustable optionally. The wood pellet machine is mainly applicable to crude fiber granulation, such as: sawdust, rice husk ,cotton stalk, cotton seed hull, weeds and all kinds of crop straw, home wastage, waste plastics and the factory waste, the material of low adhesion rate, difficult to forming,etc.
This type of pellet mill is widely used in the biomass-energy fuels plant, power plant, wood processing plants, etc. It is the ideal pressing shaping equipment with low investment but high profit feedback.
Features of Vertical Ring Die Pellet Machine
1. Vertical feeding of the pellet machine;
2. Die static, the roller rotate,centrifugal force role,material distribute uniformly;
3. Two layers of roller die,high efficiency and good effect;
4. Ring die,vertical structure, which is good for the heat dissipation;
5. Independent discharge device, improve the pellet forming rate;
6. Good lubricating device, protecting the machine bearings;
7. Feeding device is with frequency conversion;
Standard Models of Vertical Ring Die Pellet Machine
Model | Power (kw) | Pellet Diameter (mm) | Mould Dia. (mm) | Output Capacity (t/h) | Dimension (mm) | Weight (t) |
YGKJ560 | 90 | 4-12 | 560 | 1.2-1.5 | 2600*1300*2300 | 5.8 |
YGKJ680 | 160 | 4-12 | 680 | 1.5-2.5 | 2900*1300*2400 | 8.5 |
YGKJ850 | 220 | 4-12 | 850 | 2-3 | 3750*1650*3250 | 15 |
Our service
1.Technical guidance, according to your capacity and raw material ,recommend a suitable model;
2.Visit to our factory and have an investigation and performance test;
3.Engineers available to service machinery overseas;
4.Warranty 1 year,quality guaranteeexcept wear parts and wrong operation.

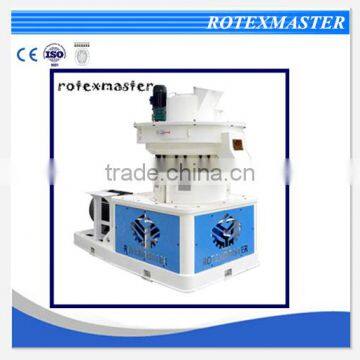

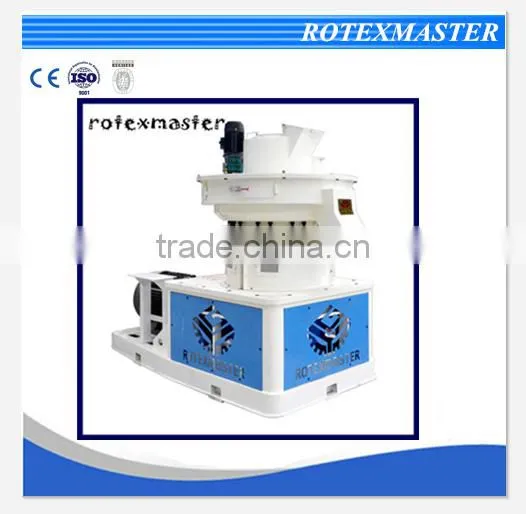

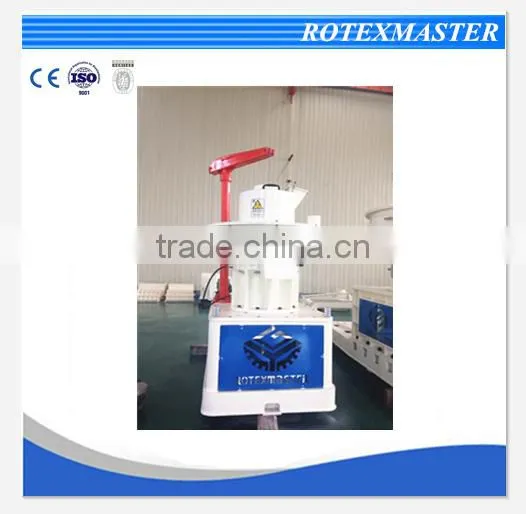

Picutures Show of VerticalDie Pellet Machine

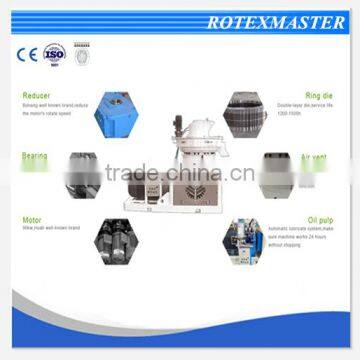

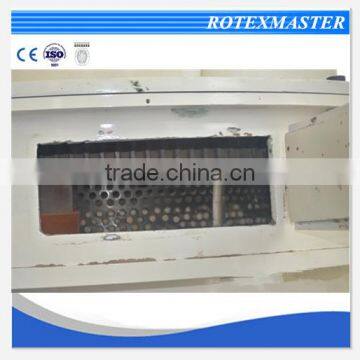

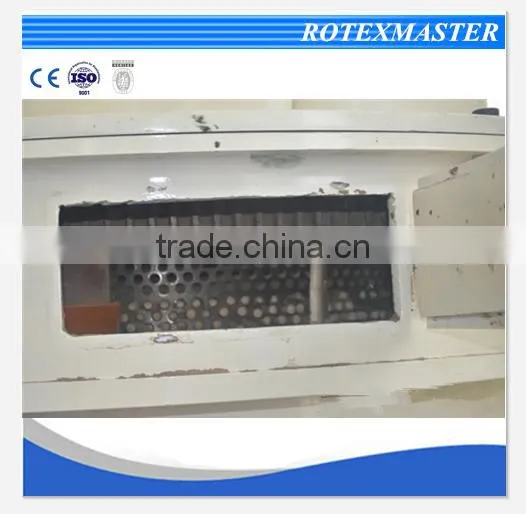

Internal Details of Machine
We use famous brand parts to guarantee the quality of line.we have profession staves to debugging the parts .
Company Information & Certificates
shandong rotex machinry Co.Ltd. is located in jinna of shandong province .we doing biomass fuel machinery and animal fodder machinery ,supporting the auxiliary equipment of drying ,cooling ,dust removing equipment and other machinery products .we are enterprise of the science and technolegy which combined the scientifc research and development ,manufactory of pany adhere to ''service quality frist ,brand ,reputation first ''priciple ,to provide customers with best quality service .welcome the coustomers to visit our factory .
we have CE &ISO certificate .
we have professional sals .
costumer :
Contacts from pellet machine supplier:
TCL :0080-13256173300 SKYPE :machine15(at) facebook : machine15(at)
