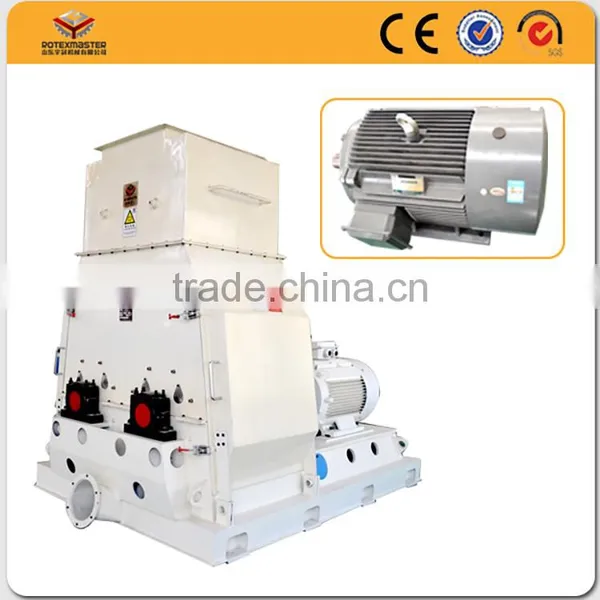

ROTEXMASTER Hammer Mill
Hedy ;Tel:+8613165142200 Skype:machine16_2
Shandong Rotex Machinery Co., Ltd
1.1 Technical parameters of YCD
Model | Power (kw) | Production (t/h) | Dimensions (mm) | Weight (t) | Hammer Qty(psc) |
YCD65*27 | 22 | 0.5-1 | 1500*1000*1100 | 0.9 | 24 |
YCD65*55 | 37 | 1-2 | 1700*1000*1100 | 1.3 | 48 |
YCD65*75 | 55 | 1.5-2.5 | 2100*1000*1100 | 1.7 | 72 |
YCD65*100 | 90 | 2-3.5 | 2400*1000*1100 | 2.1 | 96 |
1.2 Technical parameters of YSG
Model | Power(kw) | Output(t/h) | Dimension(mm) | Weight(t) | Qty of Hammer |
YSG40 | 7.5 | 0.2-0.5 | 1310*800*1070 | 0.27 | 12 |
YSG50 | 15 | 0.6-0.8 | 1380*800*1010 | 0.45 | 16 |
YSG65*27 | 22 | 0.8-1.5 | 1500*1000*1100 | 1.1 | 24 |
YSG65*55 | 37-45 | 1-2 | 1700*1000*1100 | 1.5 | 48 |
YSG65*75 | 55-75 | 2-3 | 2100*100*1100 | 1.9 | 72 |
YSG65*100 | 90-110 | 3-4 | 2400*1000*1100 | 2.3 | 96 |
YSG130*100 | 160-220 | 7-8 | 3020*1620*2170 | 6.8 | 160 |
1.3 Technical parameters of YSCD
Model | Power (kw) | Capacity (t/h) | Weight (t) |
YSCD65*75 | 55/75*2 | 4-5 | 4.3 |
YSCD65*100 | 90/110*2 | 5-8 | 5.2 |
YSCD75*100 | 110/132*2 | 6-10 | 8.2 |
1.4 Technical parameters of YSDF
Model |
Power (Kw) |
Output (t/h) |
Dimension (mm)
|
Weight (t) |
Hammer (pcs) |
YSDF65x27 | 22 | 0.6-1.2 | 1500x1100x1120 | 0.8 | 24 |
YSDF65x55 | 37-55 | 1-2 | 1700x1100x1120 | 1.2 | 48 |
YSDF65x75 | 55-75 | 1.5-3 | 2100x1100x1120 | 1.5 | 72 |
1. Adopting international advanced technique, crush room is designed as water drop figure. With special
twice crush design; the output can be increased by 25%. With adjustable hammer screen space and
optimized arrange of hammer pieces, it can fully to meet the coarse and fine crushing requirements.
2. With full open operating door, screen is tensioned outside and can be maintained and replaced easily.
3.Safe and environmental: inset seal avoids the dust from overflow thoroughly and improve work
conditions.
4.Tested by the highprecision balancing machine, the hammer mill won't move a bit when it run, which
reduces noise and prolongs motor bearing's life.
5.Feeding with speed governing feeder, feeder with belt transport or VVVFself-scavenging impeller feeder.
6.Widely used in large and medium-sized feed factories to produce high-grade poultry feed, aquatic feed
and to crush particles in alcohol plants, citric acid plants and food factories.
7. The most widely-used crushing equipment in the feed, solvent, brewing and other industries.
Advantage:
1. it is suitable for all levels of customers to use
2. low fault rate and the operating personnel on competitors
3. compressed into products of high compactness
4. used for sawdust, straw, pvc and life garbage, wood chipper.
Factory
SHANDONG ROTEX MACHINERY CO.,LTD. Employs more than 150people.
Our products include pellet machine,wood chipper,hammer mill, mixer , cooler ,dryer,screener ,burner etc.
Our company has ISO9001-2000 certification,CE certification ducts cover the environmental carbon, biomass,urban and rural environment,culture & other fields.There are five main series:The biomass compression molding equipment,garbage disposal equipment for urban and rural, organic fertilizer equipment,feed equipment and environmental protection equipment.
We are an enterprise of science and technology which combined the scientific research and development ,manufacturing and training ,and international trade.Especially in the energy shortage today,starting from customers' interests,standing in the perspective of customer,consider for the customer,with our professional knowledge ,design more reasonable manufacturing flow and produce much better products .
Company adhere to the "service ,quality first,brand,reputation first"principle ,to provide customers with the best quality service.
If you have any question about the machine ,pls do not hesitate to contact me .
Hope we can established business relationship
