EFB fiber drying equipment / biomass rotary dryer machine

EFB fiber drying equipment / biomass rotary  dryer machine

>>. Application of  Rotary drum dryers


1. Dry sawdust, organic material, chemical material and etc.
2. Strong drying and stable working,fit for high humidity and large capacity powder materials.
3. Air inhale device to inhale hot air from air-heating furnace to dryer inner to complete heating wet material.
4. According to different material character, adopts different type lifting plate and anti-sticking measures.
5. Multi-angle lifting style lifting plate will make material flowing evenly,ensure completely heating material with high efficiency.

>>.Introduction of Sawdust rotary dryer:

1. rotary drum dryer is mainly to dry biomass or Fertilizer or animal feed powder materials , it has rotary drum and can dry high humidity materials, such as sawdust, straw, stalk, animal feed materials from maize, soybean,cereal fertilizer materials from poultry manure , home or factory waste etc .

2. rotary drum dryer drum RPM can be controlled according to raw materials humidity. If humidity is large, then can control feeding speed lower and drum RPM lower to make longer drying time.

3. rotary drum dryer has temperature adjusting equipment between stove and dryer, which can adjust hot air temperature when feeding to dryer drum according to raw materials humidity and outlet stove hot temperature.

4. rotary drum dryer has two ways to discharge materials, one is to outlet from rotary drum bottom, it is mainly fit for large weight ratio materials , the other is to outlet materials from cyclone bottom , which mainly fits for light materials . so please tell us what kind of raw materials and dimension, raw humidity, then we will help you choose best dryer model.

>>. Technical Parameter of Sawdust Dryer

>>. Consist of Sawdust Dryer

>>.Rotary dryer length 24 meters was divided into two parts

>>.Rotary dryer with Fan Blower 37kw

>>.Rotary dryer YGHG2.2*24m with Double 1000*2 Cyclone

>>.Rotary dryer Air Lock with #500

>>.Rotary dryer Can use heat stove: clients can choose to make the heat stove on site in

their factory, we can free offer the drawning.

>>.Rotary dryer can also choose biomass pellet burner as its heat sources, we can offer

walls stoping the fire.

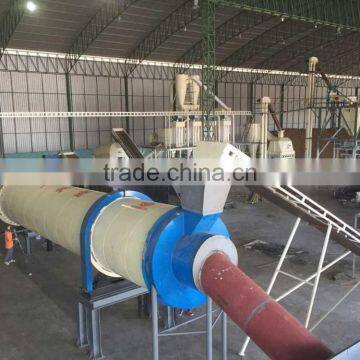

  >>. Clients' Cases of Sawdust Dryer YHGH 2.2*24M

>>. What we need to know:

Please let us know the following basic information for making project

1. What are the materials do yo want to dry?

2. What capacity do you want for an hour?

3. What is the water content before drying?

4. What is the water content after drying?

Customers from Abroad for testing pellet machine

Pellet Dryer Production Line Certificates

3D Designed for customer according to his warehouse size and machines list
