Wood coniferous pellet line of production pellet
Brief Introduction of wood pellet line >>>

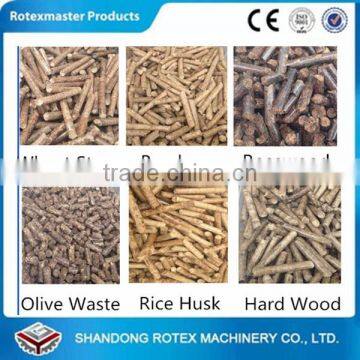

Complete wood pellet production line can press 4-10mm diameter biomass pellet a ,such as sawdust, rice husk, coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, olive waste , sugarcane waste etc .
Wood pellet line is realted with its output and raw material .

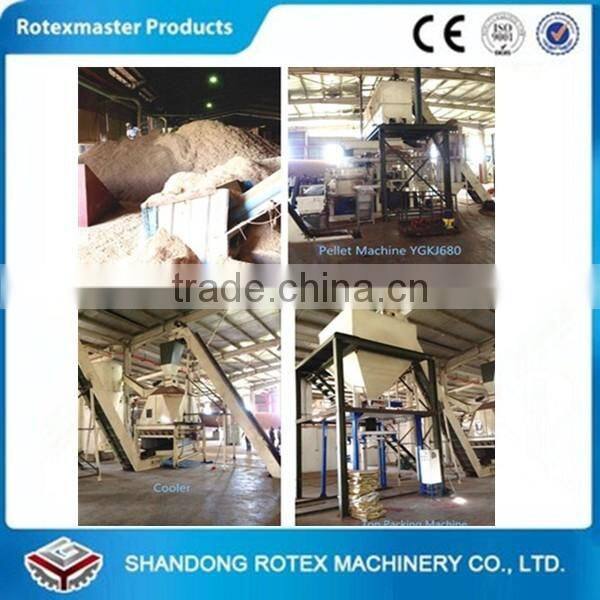

Complete wood pellet production line contains crushing section ,drying section, pelletizing section, cooling section, screening section, packing section.
Here is a wood pellet machine parameter
Model |
Power(kw) |
Diameter(mm) |
Capacity(t/h) |
Measurement(mm) |
Weight(T) |
YGKJ450 |
55+1.5+1.1+0.37+0.55 |
4-12 |
0.5-0.8 |
2400*1000*2100 |
3.5 |
YGKJ560 |
90+1.5+0.37+1.5+0.55 |
4-12 |
1.0-1.5 |
2600*1300*2300 |
5.5 |
YGKJ680 |
160+2.2+0.37+1.5+0.55 |
4-12 |
1.5-2.5 |
3300*1500*2300 |
8.5 |
YGKJ850 |
220+3+0.37+2.2+0.55 |
4-12 |
2.5-3.5 |
3800*1830*3080 |
15 |
If u want a 18t/h wood pellet line, we will equip u 6 sets YGKJ850 wood pellet machine , and other equipments output and qty increase too .

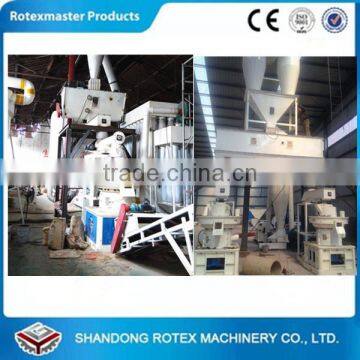

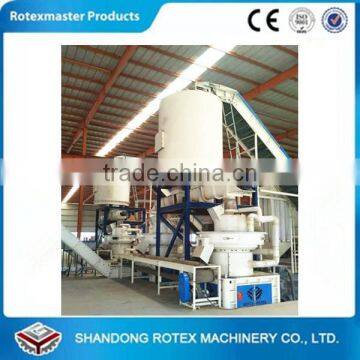

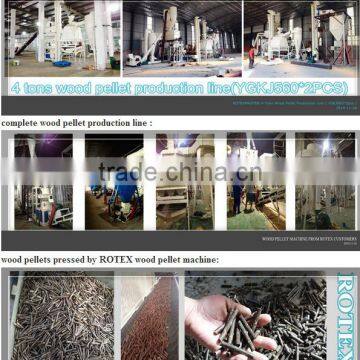

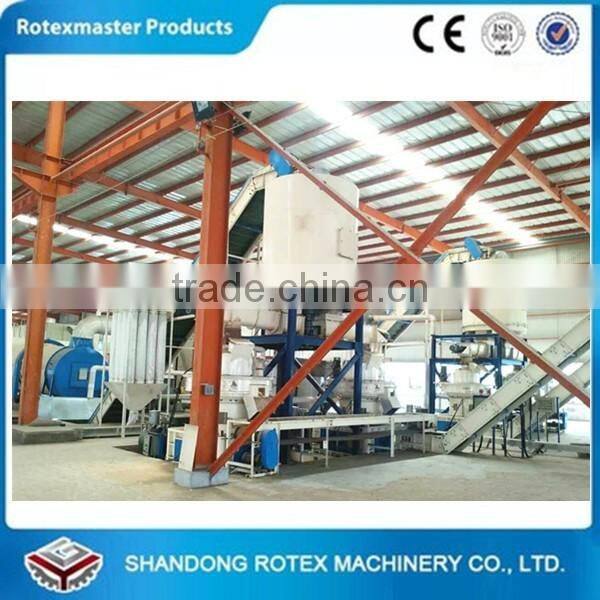

Wood pellet production line >>>
Complete wood pellet production line pellet machine has one two layers ring die inside and roller assemble , when works ,roller assemble will move , ring die keep stable , in this way will produce large pressure and press good pellets . Also the two layers die :top layer and bottom layer, only bottom layer works, when ring die is broken, then take over it and make top layer into bottom, in this way one ring die can use two times , also top layer and bottom layer hole can be different , so one ring die also can press two dimension pellets.but other suppliers pellet machine only can press one type.
Complete wood pellet production line capacity is from smaller 500kg/h to bigger 20ton/h ,hundreds of lines are installed in China and abroad, such as Bulgaria, Denmark, Sweden , Romania ,Hungary, Argentina, Belarus,Japan ,Korea,India ,Vietnam, Tunisia ,Malaysia, Gdynia etc. greatly welcome to visit .
Complete wood pellet production line key pellet machine contains full automatic lubricated spare parts grease system, which can lubricate spare parts rollers, shaft, bearings and gears automatically, the pressure between rollers and die can be adjusted automatically to fit for different materials pressure ratio, now it is our national patent product.
Complete wood pellet production line machines spare parts are made by ourselves , mostly are made by CNC systems, through high technology heat treatment , we can ensure its high quality and good precision.
If you were interested in our complete pellet production line ,please choose your ideal pellet machine model as below and tell us your materials dimension and raw humidity. Then we will design the full flow chart with best price for you.
Complete pellet production line is hot selling more than 200 full lines we have big discount for old customer , greatly welcome to call and mail me for details .
Company >>>
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development , manufacturing, international trade as a whole,registered capacity is 10 Million Yuan,more than 150 staff.Strong technical force,advanced production technology,perfect after-sales service.Mainly produce:biomass fuels pellet production line,feed pellet production line,organic fertilizer and Municipal Solid Waste processing equipment,agricultural equipment,forestry equipment,etc.
Caring service, carefully manufacture and desirable price make customers at ease.
Service >>>
"Customer-oriented": providing customers with whole considerate services;
"Service as core": providing the most suitable products to customers;
"Quality-centered":All-round services to every customers!
"Technical support":on-site technical training and technical advice available.
If more information on wood pellet line , please contact me
Emily Sun
Email is machine07@rotexmaster(dot)com
Skype is pelletindustry07
Whatsapp is +86-18615687601
