Complete Wood Pellet Line/Wood Pellet Plant for sale

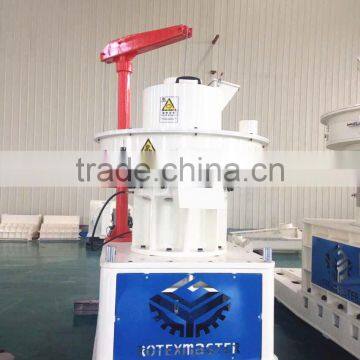

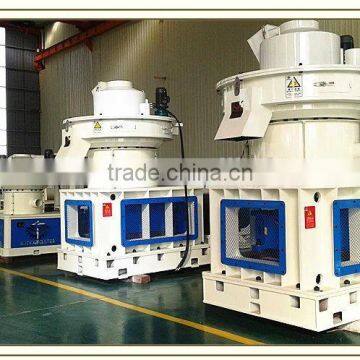

verticla ring die wood pellet machine is a well used wood pellet making machine for industrial use ,capaicty is big and low consumption ,mainly used in wood pellet plant to make biomass pellet for as clean and environmental fuel .
our main Vertical fing die wood pellet machine is YGKJ560, YGKJ680,YGKJ850
raw material is wide : it can be wood log, wood chips, sawdust ,also can be wood residue from wood processing factory , used wood pallet , efb , shell , straw , bamboo is ok
The wood pellet production description
to make wood pellet , it need other related machines .
for example, if your material is wood log , dimater not more than 30cm , mositrue is about 40% , and also have some sawdust and u want 5t/h wood pellet line
1. first u need wood chipper YBX218 , its capacity is 8- 15t/h and inlet size :30*68cm , how to choose the wood chipper, we combine your material size and your capacity
2. rotary dryer , the mositure is about 40% , u need a dryeer to low down the mositure to 15% , 15% is best situation to make biomass pellet
3. the dried wood chips need to further grinded to 8mm sawdust , according to capacity , we select use multifulctional hammer mill or dual shaft hammer mill , 5t/h we recommend custoemers use dual shaft hammer mill, as thre are two rotors , it means the grinding efficiency is better
4. as in the condition , there are some sawdust as the direct material to make wood pellet , ingenral there will be some impurity in the sawdust , if there is some big chips or other impurity , use a roatry screener to get rid the impurity
5. pellet machine , u can use YGKJ560 , 4 sets wood pellet machine together in the wood pellet line
the Rotexmaster wood pellet machine has these advantages
(1)vertical ring die design , make material feed evenly and smoothly ,avoid working jam henomenon
(2)vertical ring die design will bring the eough pressure to make wood pellet , the pellet density is 1.1-1.3 , it don't need press long time in the pressing room like horizontal ring die pellet mill .so the formation is high too , 98.6%
(3) Rotexmaster biomass pellet machine has ,can lubricate bearings automatically , can save your time and protect bearings better so it can make our pellet machine work 24hrs without stop
(4) the cooler and bag dust collector,dust collecting room , cooler can draw out the heat from press room directly , protect the bearins to be some extent , and bag dust collector and dust collecting room , keep clean working envirionment
(5) recuder transmission, more safe and wear resistant , to protect the main shaft . better than belt conveyor and self -made big gear wheel transmission ,we adpot GUOMAO brand recuer , they are international company , quality gurantee
(6) Siemensbei motor ,save u electricity , low consumtion and Harbin standard bearing, high quality guarantee
(7)new improved with adding the lifting equipment , solve the difficulty to change die and rollers without forklift
6. cooler , screener and packing machine
cases show : 5t/h thailand wood pellet line
we are Shandong Rotex Machinery , one of the top and fast developing(3years ) manufacturers in China
CE ISO Patent , reliable quality , with better price and service
1.wood pellet machine and related machines, maily including wood crusher , wood chipper , hammer mill etc
2.animal feed pellet machine and related machinery ,including the feed grinder , mixer
3.fertilizer machine
if any questions or demand on our machine , please contact me
my mob:+86-18615687601
