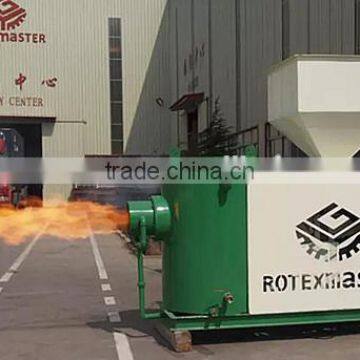

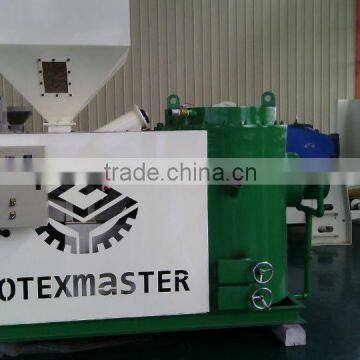

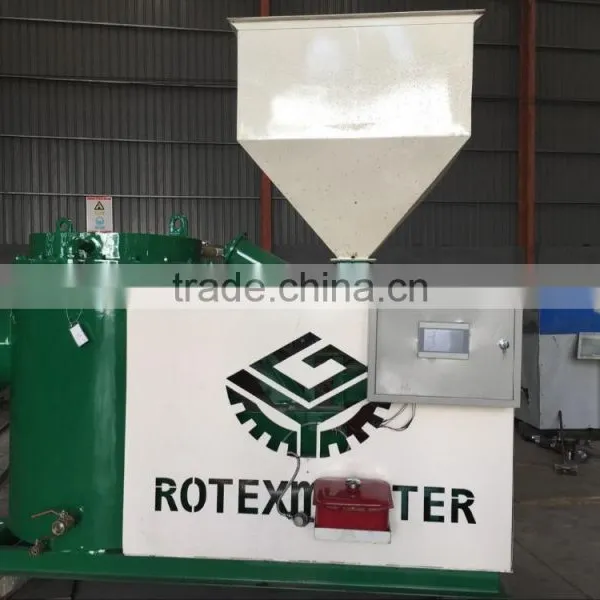

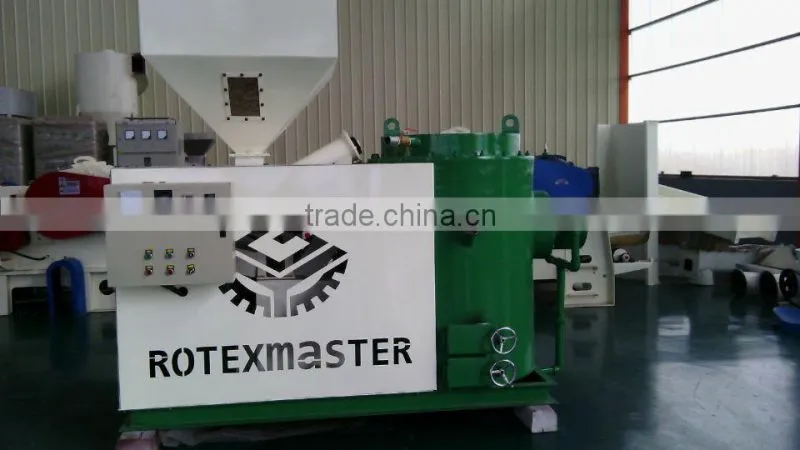

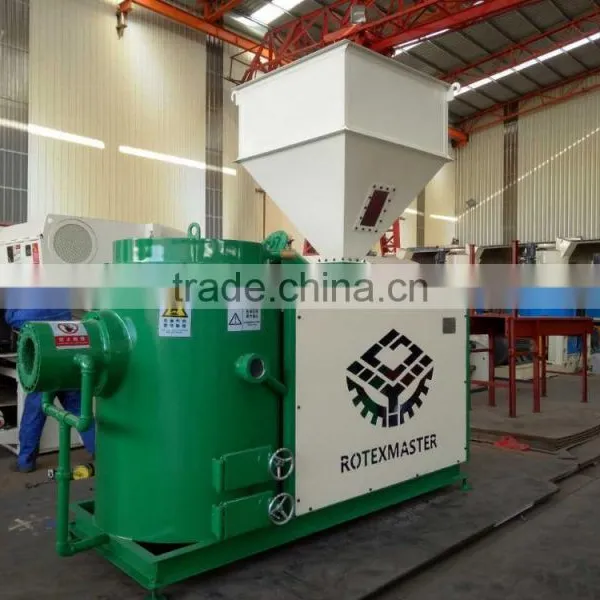

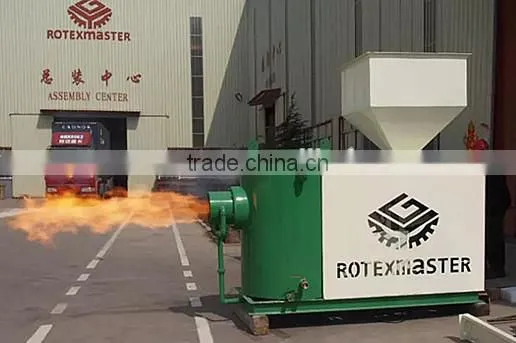

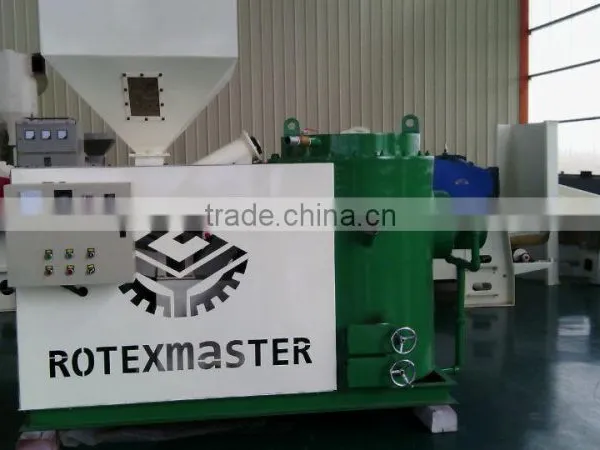

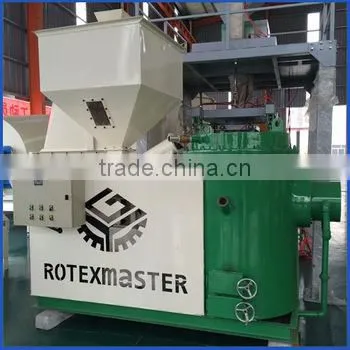

Wood chips wood pellet burner /wood pellet biomass burner
my wechat/whatsapp/viber/line: +86-18615687601
Advantage of wood pellet burner
1. Energy-efficient: it uses the renewable biomass energy as fuel with low cost
2. High thermal efficiency: the pellet fuel can burn completely, and the combustion ratio can reach higher than 90%
3. Stable and reliable performance: the equipment is running under micro-pressure state, it won't appear tempering or flame-lifting phenomenon
4. Low carbon and pro-environment: it realizes the sustainable use of energy by using the biomass energy, with low emissions of smoke dust, sulfur, nitrogen and carbon dioxide
5. Easy operation: adopt automatic feeding system, easy to operate
6. Low investment and running cost: the biomass burner is with reasonable design, it costs little money when used for boiler reforming
7. fiber reinforced castables ,avoid the broken , compared with the fire brick sturcture in heat protection parts
8. Biomass Burner Applied Range: biomass burner is widely used in various heat energy industries, such as boiler, die-casting machine, industrial furnace, incinerator, smelting furnace, drying equipment, drying plant, painting equipment and asphalt heating equipment etc
Model |
Calorific value (kcal/h*10^4) |
power
(Kw) |
consumption (Kg/h) |
Crater center length (mm) |
The crater diameter (mm) |
Dimension(mm) |
Equipment protection way |
YGF20 |
20 |
0.75 |
50 |
230 |
195 |
1900*910*1710 |
air-cooled |
YGF30 |
30 |
0.75 |
75 |
230 |
195 |
1920*925*1750 |
|
YGF45 |
45 |
1.12 |
115 |
230 |
195 |
1830*1100*2130 |
|
|
YGF60
|
60 |
1.9 |
150 |
300 |
250 |
2340*980*2180 |
|
YGS60 |
60 |
1.9 |
150 |
300 |
250 |
2340*980*2180 |
water-cooled |
YGS90 |
90 |
3.1 |
225 |
300 |
300 |
2790*1190*2400 |
|
YGS120 |
120 |
3.7 |
300 |
300 |
300 |
2900*1300*2420 |
|
YGS180 |
180 |
5.25 |
450 |
300 |
360 |
3180*1490*2400 |
|
YGS240 |
240 |
8.45 |
600 |
300 |
360 |
3250*1660*3250 |
|
YGS300 |
300 |
10.45 |
1750 |
350 |
470 |
3800*1950*3130 |
