Specifications
Direct manufacturer.Clear Installation & foundation drawing.
Energy saving, low power consumed.
ISO9001:2008.

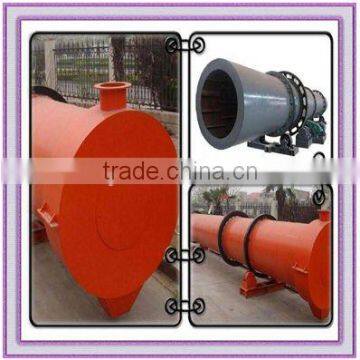

Rotary Drier description:
1. The rotary drier mainly consists of rotor, shed plate, transmission device, support device, seal ring, and other spare parts.
2. The rotary drier has the advantages of reasonable structure, excellent manufacture, high output, low energy consumption, convenient operation and so on.
3. The rotary drier is applicable for particle materials, and is also applicable for paste and viscous materials which are mingled with particle materials, or materials whose water content is high, such as coal, coal slurry, slag, industrial waste, and clay stone. Rotary dryer are widely used in building materials, metallurgy, and chemical industry.
4. Support equipments of rotary drier: Rotary drier also match with transmission part, cyclone dust collector, induced draft fan, pipeline, electric control box etc.
Rotary Drier Main Technical parameter:
Model |
Gradient (°) |
Speed (r/min) |
Volume (m3) |
Power (kw) |
Capacity (t/h) |
Weight (t) |
Φ0.6*8m |
3-5 |
8 |
2.26 |
4 |
1-3 |
2.9 |
Φ0.8*10m |
3-5 |
7.2 |
5.02 |
4 |
4-6 |
4.5 |
Φ1.0*10m |
3-5 |
6.73 |
7.85 |
5.5 |
5-8 |
5.6 |
Φ1.2*12m |
3-5 |
5.8 |
13.31 |
11 |
8-12 |
14.8 |
Φ1.5*12m |
3-5 |
4.8 |
21.2 |
15 |
10-15 |
17.8 |
Φ1.8*14m |
3-5 |
3.2 |
48.22 |
30 |
12-18 |
27 |
Φ2.2*18m |
3-5 |
3 |
70.43 |
37 |
15-20 |
53.8 |
Φ2.4*20m |
3-5 |
2.83 |
90.43 |
45 |
20-25 |
60 |
Φ2.8*24m |
3-5 |
2.59 |
147.8 |
75 |
25-30 |
67 |
Φ3*20m |
3-5 |
1.5-5 |
141.3 |
55 |
25-35 |
78 |
Φ3*25m |
3-5 |
1.5-5 |
176.6 |
75 |
32-40 |
104 |
About our factory:
Welcome to visit our factory-Zhengzhou Kehua Industrial Equipment Co., Ltd.
Path: If you at Shanghai/Beijing/Guangzhou etc. You can fly to Zhengzhou Xinzheng International Airport.
