Specifications
1. Energy Saving2. High Capacity
3. Professional Manufacture
4. Professional Technical

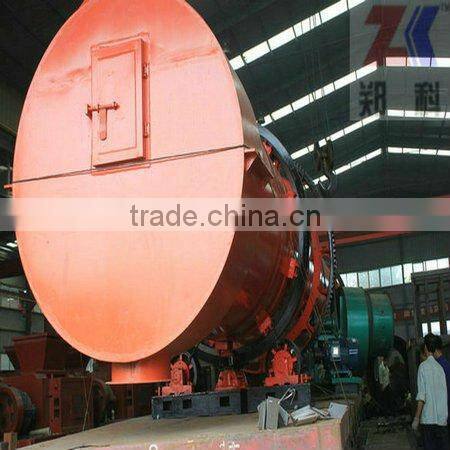

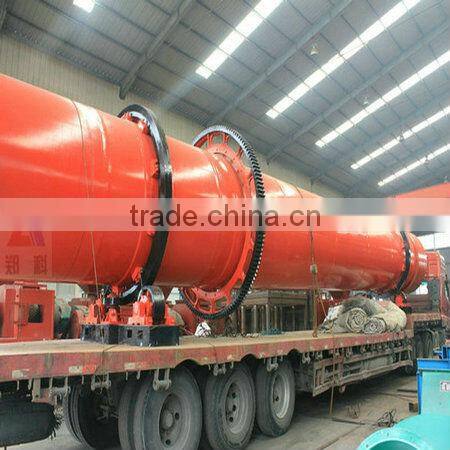

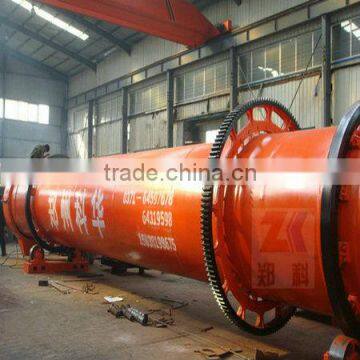

Coal Slurry Dryer
Skype: zkbm1998
Coal Slurry Dryer Application and Features:
Coal slurry dryer is widely used in the drying of coal slurry. It is the new type heat exchange equipment and
dries the materials by panel. It has features of low energy consuming and stable performance. It is also applicable
to other materials drying and dehydration. The drying of coal slurry, raw coal, floatation cleaned coal,
mixed clean coal, etc. in coal industry; the drying of blast furnace slag, clay, limestone, sand, quartz stone,
etc. in building industry; the drying of metal ore concentrate, waste residue, tails, etc. in beneficiation industry;
the non thermo sensitive substance drying in chemical engineering industry. The heat transmission of this product
is by contact and the transmission is by scraper chain. The heat transmission medium is saturated steam (or heat
transfer oils).
Coal Slurry Dryer Working Principle:
Due to the stickiness of the coal slurry, it can be divided into several working areas. The first is guide area
where the wet coal slurry meets the hyperthermia hot air and its moisture evaporates fast. As the material is
stirred by the shoveling plate of the big lead angle, the bonding can not be formed and was sent to another
working area. The second is cleaning area where the wet coal slurry is raised by the shoveling plate and become
the material curtain type. So as the material drops down, it is likely to be bound with the rotary drum wall which
can be cleaned by the cleaning device reasonable. In this process, the cleaning device can break the clotting
which increases the heat exchange area thus improves the drying speed. The third is the slant flitch area where
is wet slurry is in the state of low moisture and loose condition. The material here won’t bond. After the heat
exchange the material meet the moisture condition demand, and then goes to the last areadischarging area.
There is no shoveling plate here. The material rolls and slides to the dumping mouth and the whole drying
process are finished.
Main Technical Parameters:
Model | Gradient (°) | Speed (R/min) | Volume (m³ ) | Power (kw) | Capacity (t/h) | Weight (t) |
Φ0.6×8m
| 3-5 | 8 | 2.26 | 4 | 1-3 | 2.9 |
Φ0.8×10 m
| 3-5 | 7.2 | 5.02 | 4 | 4-6 | 4.5 |
Φ1.0×10 m
| 3-5 | 6.73 | 7.85 | 5.5 | 5-8 | 5.6 |
Φ1.2×12 m
| 3-5 | 5.8 | 13.31 | 11 | 8-12 | 14.8 |
Φ1.5×12 m
| 3-5 | 4.8 | 21.2 | 15 | 10-15 | 17.8 |
Φ1.8×14 m
| 3-5 | 3.2 | 48.22 | 30 | 12-18 | 27 |
Φ2.2×18 m | 3-5 | 3 | 70.43 | 37 | 15-20 | 53.8 |
Φ2.4×20 m
| 3-5 | 2.83 | 90.43 | 45 | 20-25 | 60 |
Φ2.8×24 m
| 3-5 | 2.59 | 147.8 | 75 | 25-30 | 67 |
Φ3×20 m
| 3-5 | 1.5-5 | 141.3 | 55 | 25-35 | 78 |
Φ3×25 m
| 3-5 | 1.5-5 | 176.6 | 75 | 32-40 | 104 |
