Home > Products > Drying equipment > 2014 New Design Sand Dryer/ Silica Sand Rotary Dryer/ Coal Slime Dryer --- ZhengZhou KeHua
2014 New Design Sand Dryer/ Silica Sand Rotary Dryer/ Coal Slime Dryer --- ZhengZhou KeHua
- 100 Set / Sets per Month
- QIngDao TianJin
- L/C D/P D/A
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | KeHua, KeHua | Model Number: | Many Model | Voltage: | 380V |
Power(W): | 4-75 KW | Weight: | 3-150 | Certification: | CE, ISO9001-2008 |
Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. High Performance2. High Capacity
3. Professional Manufacture
4. Export More than 30 Countrys

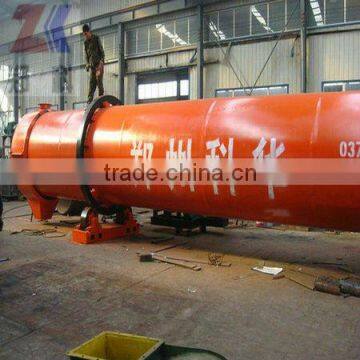

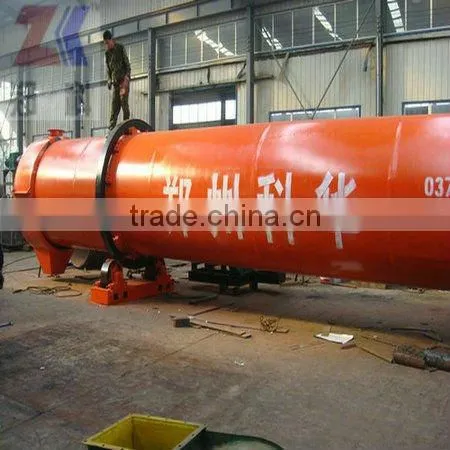

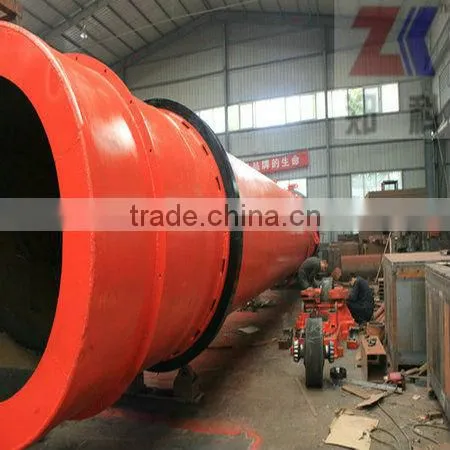

Sand Dryer
Skype: zkbm1998
Sand Dryer Application:
Sand Dryer is mainly used for the drying of materials like slag, clay and coal dust in building material industry
or metallurgy industry, and leaching slag in metal beneficiation. In order to control the temperature of the dryer,
a thermocouple which can show the temperature change of the dryer’s feeding and discharging ends is allocated
on the feeding and discharging devices. This offers support for the better control of the working temperature
(normal 350 to 380 centigrade) in the drum. Sand Dryer is used in the drying of graininess material, and
sticky paste material or high moisture material by adding materials. Its advantages: great production capacity,
wide rang of application, small flow rate resistance, large fluctuation range in manipulation and convenient operation.
It is most used in the drying of sand, mineral powder, coal slurry, chicken manure and dairy manure.
Sand Dryer Structure:

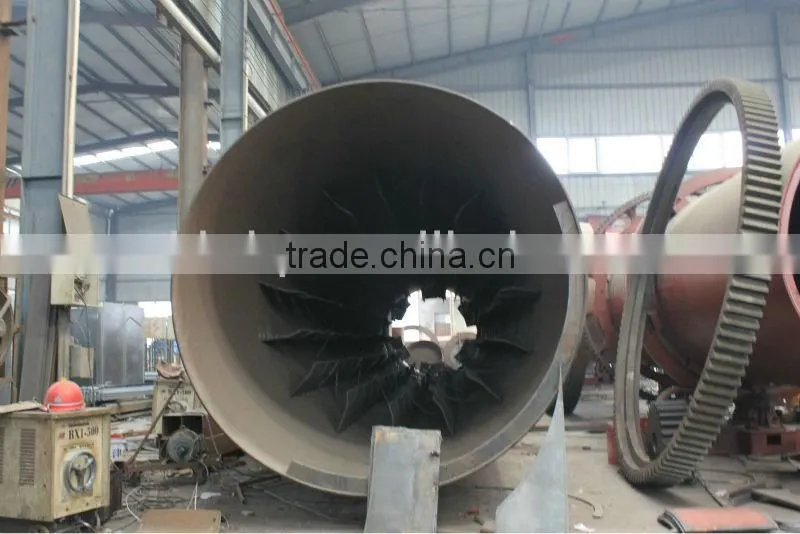

This dryer consists of rotary body, throwing flitch, transmission device, supporting device and sealing ring.
The dryer of our factory adopts new type throwing flitch device which has multi-functions such as guidance, current sharing and material throwing and can make the materials distributing
evenly on the radial section of the dryer. So that the material curtain become thin, even and universal and
exposed to the hot current totally thus the heat energy is fully utilized. The dryer in our factory chooses the
right operation parameter, the coal consumption and power consumption is 10 to 15% lower than general dryer,
and the output per hour is 10 to 15% higher. It is widely used in the cement and beneficiation industries.
Sand Dryer Working Principles:
The heat source of Rotary Dryer is from combustion devices. This dryer adopts direct flow heating method.
So the material should be sent to the shell by the feed chamber and feed chute. After that the material
will be pushed backward by the spiral shoveling plate. As the dryer is located with a tilt, the material
flows to the end by the gravity and circumduction meanwhile it is shoveled repeatedly by the shoveling
plate to the upper end then comes down constantly, forming an even curtain in the drum and exchanging
heat fully with the hot current in the drum. With the material being raised and scattered again and again,
the moisture is dried gradually. Finally it is dried totally.
Main Technical Parameters:
Model | Gradient (°) | Speed (R/min) | Volume (m³ ) | Power (kw) | Capacity (t/h) | Weight (t) |
Φ0.6×8m
| 3-5 | 8 | 2.26 | 4 | 1-3 | 2.9 |
Φ0.8×10 m
| 3-5 | 7.2 | 5.02 | 4 | 4-6 | 4.5 |
Φ1.0×10 m
| 3-5 | 6.73 | 7.85 | 5.5 | 5-8 | 5.6 |
Φ1.2×12 m
| 3-5 | 5.8 | 13.31 | 11 | 8-12 | 14.8 |
Φ1.5×12 m
| 3-5 | 4.8 | 21.2 | 15 | 10-15 | 17.8 |
Φ1.8×14 m
| 3-5 | 3.2 | 48.22 | 30 | 12-18 | 27 |
Φ2.2×18 m | 3-5 | 3 | 70.43 | 37 | 15-20 | 53.8 |
Φ2.4×20 m
| 3-5 | 2.83 | 90.43 | 45 | 20-25 | 60 |
Φ2.8×24 m
| 3-5 | 2.59 | 147.8 | 75 | 25-30 | 67 |
Φ3×20 m
| 3-5 | 1.5-5 | 141.3 | 55 | 25-35 | 78 |
Φ3×25 m
| 3-5 | 1.5-5 | 176.6 | 75 | 32-40 | 104 |
