Specifications
Biomass fuel wood pellet equipment1.Factory price,
2.Straw.rice dust,sawdust bed,plastic etc.
3.New energy equipment
High quality wood biomass pellet mill is detailed as follows:
Brief introduction:

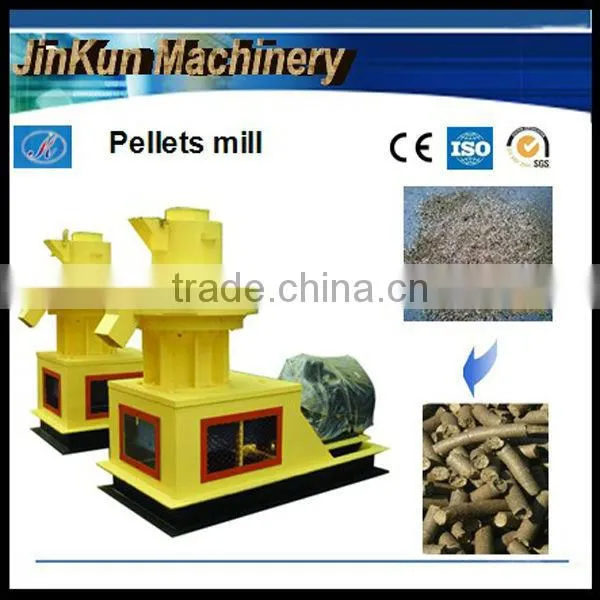

JK series centrifugal pellet mill absorbs the advantages of worldwide pellet making machine, and designed with “double layer die” structure; The pinch roller is made of high alloy wear resistant materials. Transmission system oil filters automatically,
and in good lubrication. This mill has the features of unique design, rational structure, low consumption high efficiency, sturdy and durable,
and fill up the gap of round molding vertical feeding technology.
Type |
Output(t/h) |
Power |
Standard |
Weight |
Size(mm) |
JK450 |
Crude fibre0.4-0.7 |
55kw |
Φ4-12mm |
2.1t |
1250*100*1600 |
JK560 |
Crude fibre1-1.5 |
90kw |
Φ4-12mm |
6.1t |
2600*1300*2300 |
JK580 |
Crude fibre 1.5-2.5 |
160kw |
Φ4-12mm |
7t |
2900*1300*2400 |
JK850 |
Crude fibre 2.5-3.5 |
220kw |
Φ4-12mm |
14.5t |
3300*1400*3100 |
JK880 |
Crude fibre3-5 |
315kw |
Φ4-12mm |
18t |
3800*1680*3400 |
JK1050 |
Crude fibre 5-8 |
360-450kw |
Φ4-30mm |
|
|
JK1250 |
Crude fibre 8-12 |
550-660kw |
Φ4-30mm |
|
Application:
The equipments is applied to the material with low adhesiveness and low shaping.
Material:rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical material.
Industry:It is used in the biomass energy fuels plant,power plant,wood processing plant,fertilizer plant,chemical plant etc.It is the ideal pressing shaping equipments with low
Main feature of pellet mill:
1.Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2.Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3.Double-layer dies,up and down dual-use,high capacity,saving energy.
4.Independent lubrication;high pressure filtration,clean and unblocked.
5.Independent and frequency changeable cutting device,ensure formation rate of pellets.
About the different output:
Technical training:
we can teach you to do the following things:
1.How to identify tires that can be retreated from tire that can not be retreated;
2.How to operate the whole production line, especially how to operate the vulcanizing process
3.How to do buffing and some small amendment.
4.Matters need attention during production.
