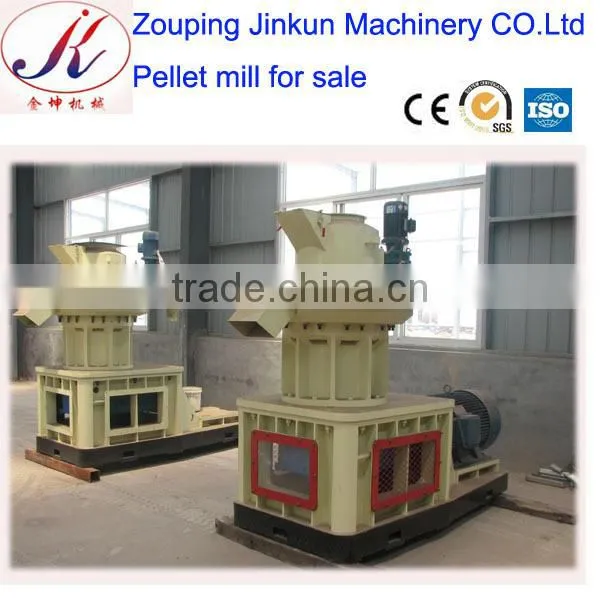

Vertical pellet mill/biomass wood pellets machine plants
- 30 Set / Sets per Month
- Qingdao/Shanghai
- T/T Credit Card
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jinkun machinery |
Model Number: | JK850 pellet mill | Voltage: | 220V/380V | Power(W): | 220kw |
Dimension(L*W*H): | 3300*1400*3100mm | Weight: | 14.5t, 14.5t | Certification: | CE,ISO,SGS |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Wood pellets machine plants:1.Factory price,
2.Straw.rice dust,sawdust bed,plastic
3.New energy equipment.
Palm pellet making machine is detailed as follows:
Brief introduction of pellet mill :
JK series centrifugal pellet mill absorbs the advantages of worldwide pellet making machine, and designed with “double layer die” structure; The pinch roller is made of high alloy wear resistant materials. Transmission system oil filters automatically, and in good lubrication. This mill has the features of unique design, rational structure, low consumption high efficiency, sturdy and durable, and fill up the gap of round molding vertical feeding technology.
Type | Output(t/h) | Power | Standard | Weight | Size(mm) |
JK450 | Crude fibre0.4-0.7 | 55kw | Φ4-12mm | 2.1t | 1250*100*1600 |
JK560 | Crude fibre1-1.5 | 90kw | Φ4-12mm | 6.1t | 2600*1300*2300 |
JK580 | Crude fibre 1.5-2.5 | 160kw | Φ4-12mm | 7t | 2900*1300*2400 |
JK850 | Crude fibre 2.5-3.5 | 220kw | Φ4-12mm | 14.5t | 3300*1400*3100 |
JK880 | Crude fibre3-5 | 315kw | Φ4-12mm | 18t | 3800*1680*3400 |
JK1050 | Crude fibre 5-8 | 360-450kw | Φ4-30mm |
|
|
JK1250 | Crude fibre 8-12 | 550-660kw | Φ4-30mm |
|
Application of pellet mill :
The equipments is applied to the material with low adhesiveness and low shaping.
Material:rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical material.
Industry:It is used in the biomass energy fuels plant,power plant,wood processing plant,fertilizer plant,chemical plant etc.It is the ideal pressing shaping equipments with low
Main feature of pellet mill:
1.Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2.Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3.Double-layer dies,up and down dual-use,high capacity,saving energy.
4.Independent lubrication;high pressure filtration,clean and unblocked.
5.Independent and frequency changeable cutting device,ensure formation rate of pellets.
Other main machinery for pellet mill production line:
Wood chipper
Hammer mill
Cooling system:
Drying cooling system:
Packaging machine:
