Peanut Shell Pellet Production Line for poultry With CE for sale

Specifications

1.-Rated Power: 75~220KW
2.-Output:3~8T/Hr
3.-Processing size:4~15mm
4.-Peanut Shell Pellet Production Line
5.-OEM and ODM

Peanut Shell Pellet Production Line for poultry With CE for sale







Specifications



Model	Output (T/Hr)	Power (KW)	Processing Size (mm)	Weight (kg)	Overall Size (mm)
XGJ550	0.8~1.2	75	4~12mm	6040	2630*100*2400
XGJ560	1~1.5	90	4~12mm	6100	2600*1300*2300
XGJ580	1.5~2.5	160	4~12mm	7000	2900*1300*2400
XGJ850	2.5~3.5	220	4~12mm	14500	3300*1400*3100
XGJ880	3~5	315	4~12mm	18000	3800*1680*3400
XGJ1050	5~8	360~450	4~30mm
XGJ1250	8~12	550~660	4~30mm





Features:



1. - Vertical mould, vertical feeding, no arc, and easy heat dissipation

2. – Molding still, press shaft rotation, material centrifugal to make materials evenly distributed.

3. – Mould in two layers, dual usages, high productivity and energy-saving.

4. – Independent lubrication, high pressure filtration

5. – Independent frequency conversion device, to ensure the forming rate of particles.

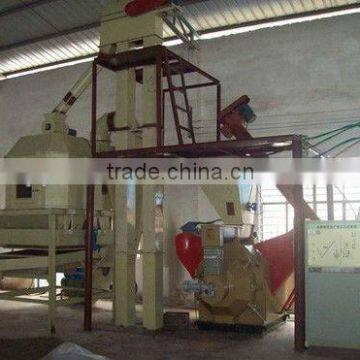

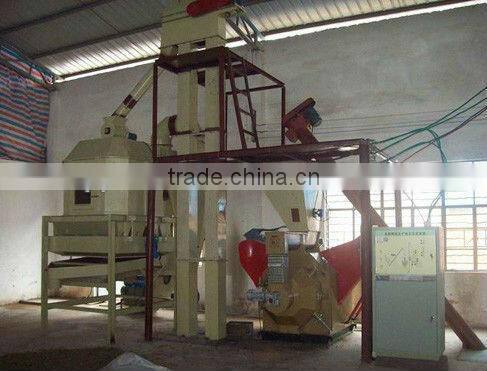

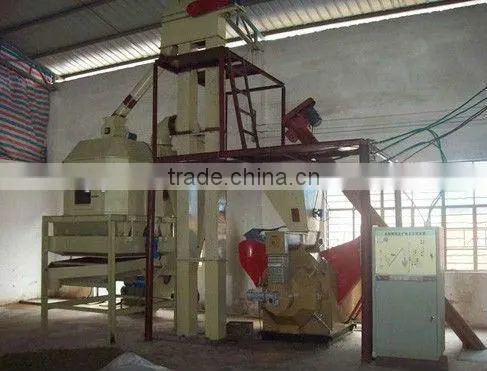

This pellet production line including the dryer, the wood chipper, the hammer mill, the pellet mill, the cooler, the screener, the packing machine and so on.





This pellet mill is suitable for pressing the materials which is hard bonding, difficult forming, such as the shells of rice husk, sunflower seed, wood fiber materials of branches, tree trunk, bark, tree, ect, crop straws; chemical materials of rubber ,cement, ash. It is widely used in biomass fuel factory, power plant, wood processing plant, fertilizer plant, chemical factory.



Biomass Pellet Production Line



Working Process

1. Crushing/chipping (Making wood or straw into smaller pieces or sawdust) or Grinding (to make crop stalks to be right sizes of raw material before pelletizing)



2. Drying (to remove moisture of raw material before pelletizing)
3. Pelletizing (to press raw material into pellets)



4. Cooling (Cool output pellets and remove some moisture )
5. Sieving (remove the dusts and crushed pellets)
6. Packing (package the pellets into bags of required sizes)



7. Control pannel (to operate this complete pellet plant)









Cases



Attentions:

The configuration is devided into simple and standard

To make a detailed configurations,pls tell us:

1.-What kind of raw materials?

2.-Water content?

3.-Output per hour?
