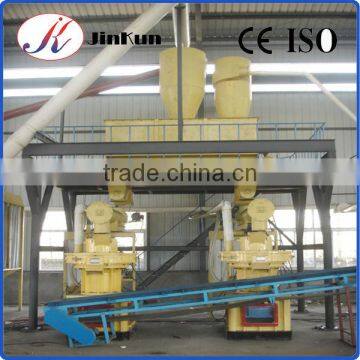

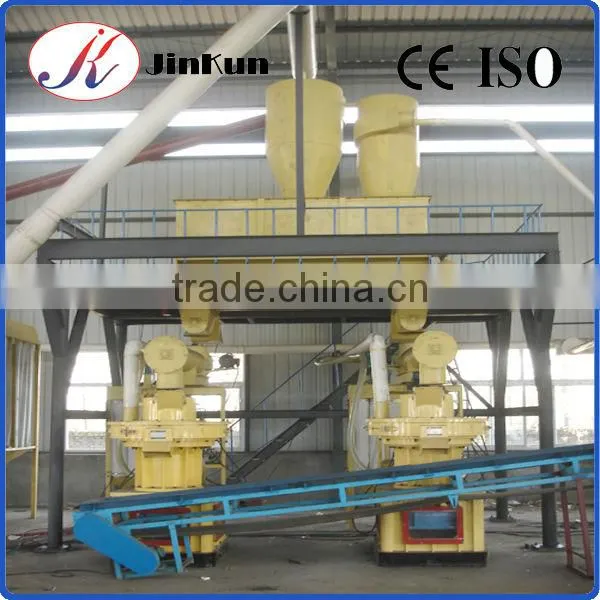

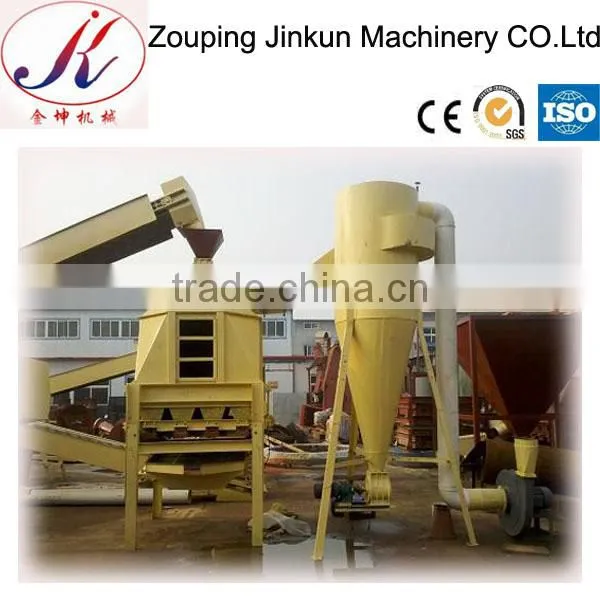

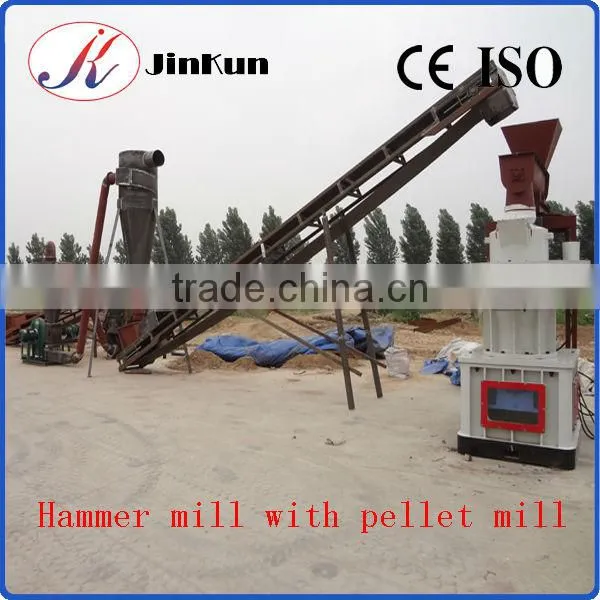

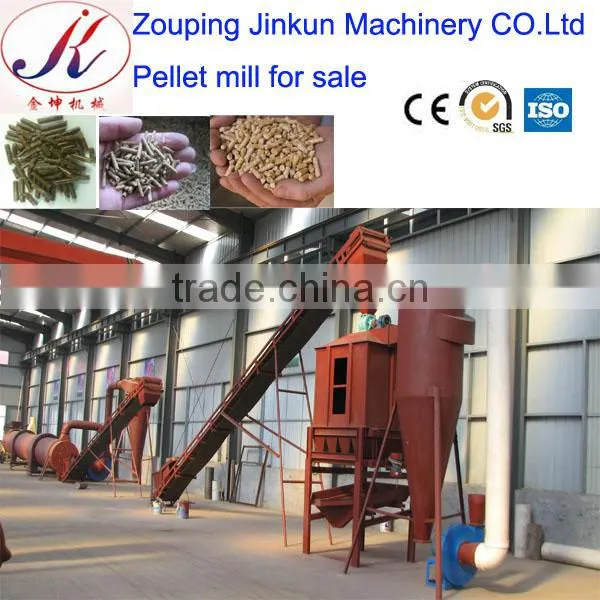

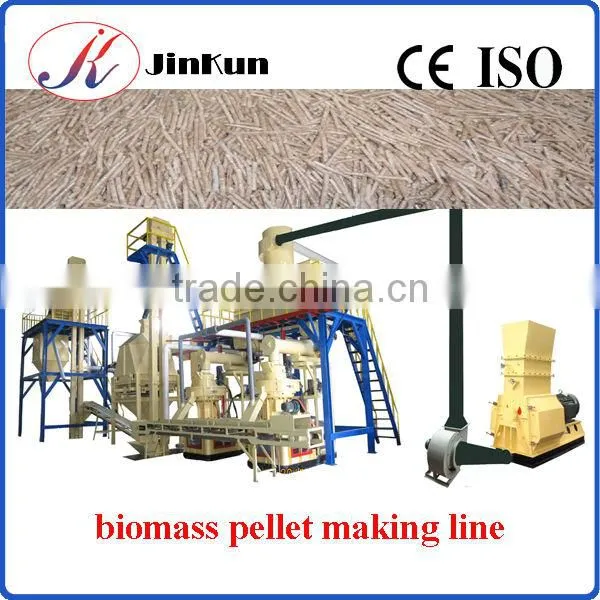

Biomass power generation equipments complete pellet line is detailed as follows:
Welcome to vist Zouping Jinkun machinery.Our main production is biomass pellet mill,wood pellet making machine,straw pellet mill,pellet making machine,high quality pellet making machine,wood chipper machine.drum wood chipper machine,wood chips making machine,wood debarked machine,tractor pellet mill,fertilizer pellet mill.
Brief introduction:

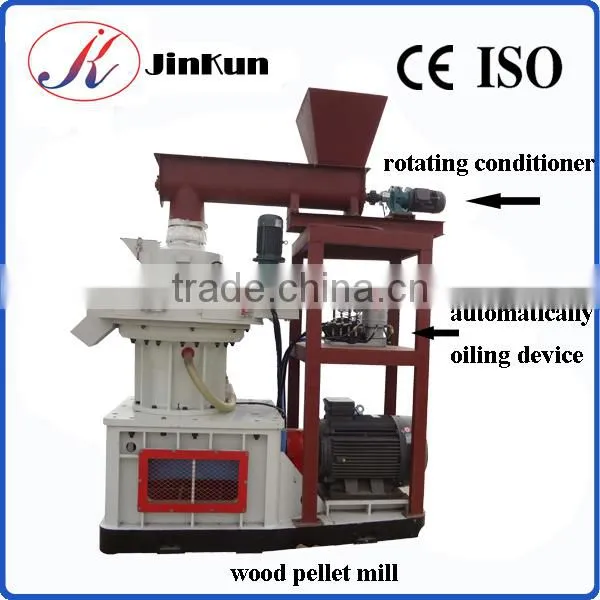

JK series centrifugal pellet mill absorbs the advantages of worldwide pellet making machine, and designed with “double layer die” structure; The pinch roller is made of high alloy wear resistant materials. Transmission system oil filters automatically,
and in good lubrication. This mill has the features of unique design, rational structure, low consumption high efficiency, sturdy and durable,
and fill up the gap of round molding vertical feeding technology.
Type |
Output(t/h) |
Power |
Standard |
Weight |
Size(mm) |
JK450 |
Crude fibre0.4-0.7 |
55kw |
Φ4-12mm |
2.1t |
1250*100*1600 |
JK560 |
Crude fibre1-1.5 |
90kw |
Φ4-12mm |
6.1t |
2600*1300*2300 |
JK580 |
Crude fibre 1.5-2.5 |
160kw |
Φ4-12mm |
7t |
2900*1300*2400 |
JK850 |
Crude fibre 2.5-3.5 |
220kw |
Φ4-12mm |
14.5t |
3300*1400*3100 |
JK880 |
Crude fibre3-5 |
315kw |
Φ4-12mm |
18t |
3800*1680*3400 |
JK1050 |
Crude fibre 5-8 |
360-450kw |
Φ4-30mm |
|
|
JK1250 |
Crude fibre 8-12 |
550-660kw |
Φ4-30mm |
|
Application:
The equipments is applied to the material with low adhesiveness and low shaping.
Material:rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical material.
Industry:It is used in the biomass energy fuels plant,power plant,wood processing plant,fertilizer plant,chemical plant etc.It is the ideal pressing shaping equipments with low
Main feature of pellet mill:
1.Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2.Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3.Double-layer dies,up and down dual-use,high capacity,saving energy.
4.Independent lubrication;high pressure filtration,clean and unblocked.
5.Independent and frequency changeable cutting device,ensure formation rate of pellets.
About the different output:
