Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | JK machinery |
Model Number: | JK560 pellet mill | Voltage: | 220V/380V | Power(W): | 90KW |
Dimension(L*W*H): | 2600*1300*2300mm | Weight: | 6.1t | Certification: | ISO,CE |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

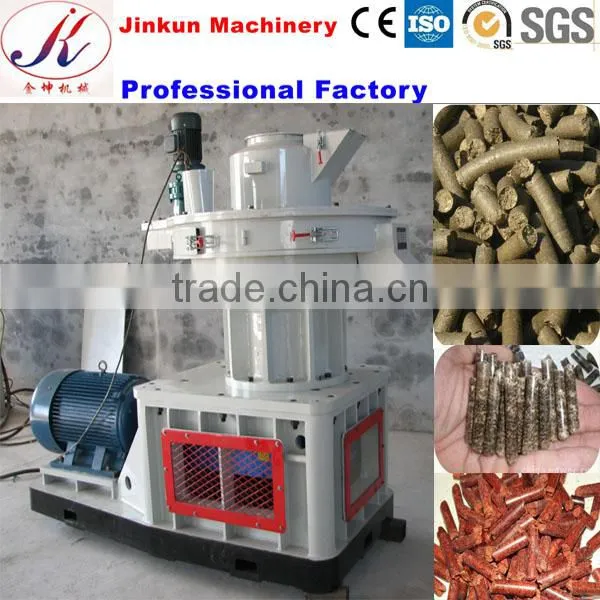

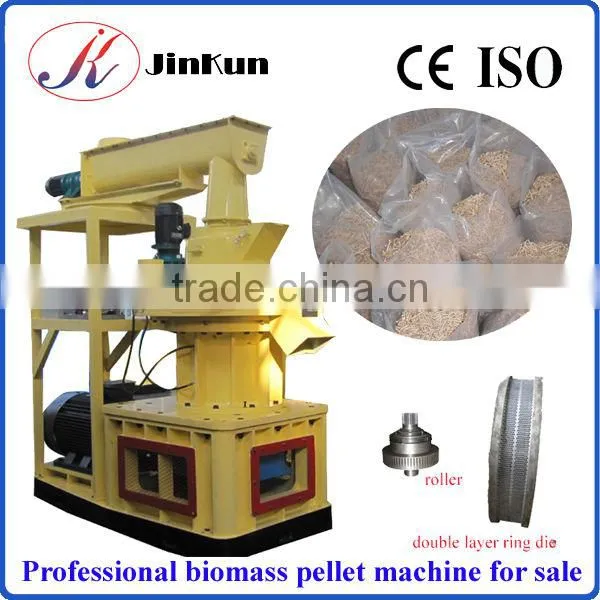

Vertical ring die pellet mill 8mm 1 ton per hour is detailed as follows:
Specifications of pellet mill:
Model | Output (T/Hr) | Power (KW) | Processing Size (mm) | Weight (kg) | Overall Size (mm) |
JK450 | 0.4~0.7 | 55 | 4~12mm | 2100 | 2630*100*1600 |
JK560 | 1~1.5 | 90 | 4~12mm | 6100 | 2600*1300*2300 |
JK580 | 1.5~2.5 | 160 | 4~12mm | 7000 | 2900*1300*2400 |
JK850 | 2.5~3.5 | 220 | 4~12mm | 14500 | 3300*1400*3100 |
JK880 | 3~5 | 315 | 4~12mm | 18000 | 3800*1680*3400 |
JK1050 | 5~8 | 360~450 | 4~30mm |
|
|
JK1250 | 8~12 | 550~660 | 4~30mm |
|
|
Features:
1. - Vertical mould, vertical feeding, no arc, and easy heat dissipation
2. – Molding still, press shaft rotation, material centrifugal to make materials evenly distributed.
3. – Mould in two layers, dual usages, high productivity and energy-saving.
4. – Independent lubrication, high pressure filtration
5. – Independent frequency conversion device, to ensure the forming rate of particles.

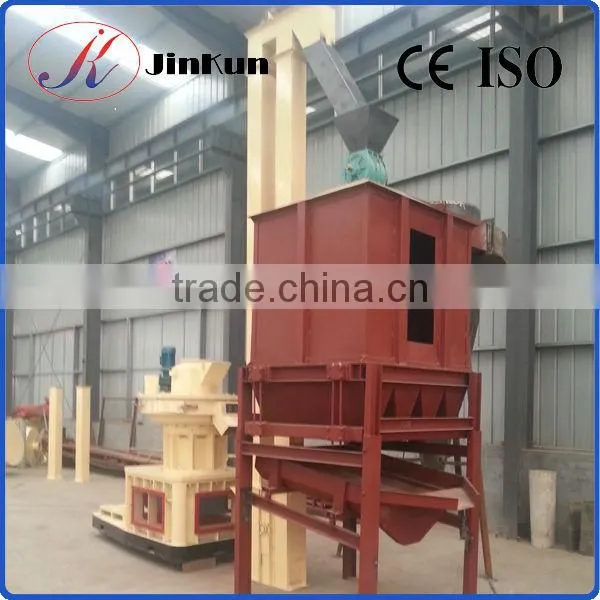

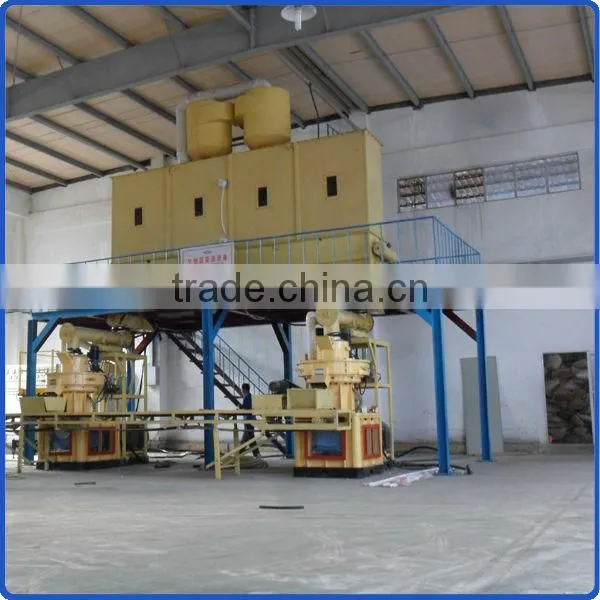

This pellet production line including the dryer, the wood chipper, the hammer mill, the pellet mill, the cooler, the screener, the packing machine and so on.
This pellet mill is suitable for pressing the materials which is hard bonding, difficult forming, such as the shells of rice husk, sunflower seed, wood fiber materials of branches, tree trunk, bark, tree, ect, crop straws; chemical materials of rubber ,cement, ash. It is widely used in biomass fuel factory, power plant, wood processing plant, fertilizer plant, chemical factory.
Attentions:
The configuration is devided into simple and standard
To make a detailed configurations,pls tell us:
1.-What kind of raw materials?
2.-Water content?
3.-Output per hour?
