Specifications
Munch pellet mill price:1.factory price
2.Ring die pellet mill
3.High output
4.Supply technology support.
JK580 JK pellet mill machinery,munch pellet mill
The brief introduction of efficient centrifugal pellet mill:
JK series efficient centrifugal pellet mill is our initiative patented products in China through meticulous recearch and development.The series pellet mill absorbs the quintessence at home and abroad,the heart adopts "double-layer die" as the unique structure;The rollers are made by abrasion-proof alloy steel,improving the using life of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,sturday and durable,supplying th gap of vertical feeding of ring-die pellet mill at home,reach the international advanced level.
The technical specification of efficient centrifugal pellet mill for rice dust:
Type |
Output(t/h) |
Power |
Standard |
Weight |
Size(mm) |
JK450 |
Crude fibre0.4-0.7 |
55kw |
Φ4-12mm |
2.1t |
1250*100*1600 |
JK560 |
Crude fibre1-1.5 |
90kw |
Φ4-12mm |
6.1t |
2600*1300*2300 |
JK580 |
Crude fibre 1.5-2.5 |
160kw |
Φ4-12mm |
7t |
2900*1300*2400 |
JK850 |
Crude fibre 2.5-3.5 |
220kw |
Φ4-12mm |
14.5t |
3300*1400*3100 |
JK880 |
Crude fibre3-5 |
315kw |
Φ4-12mm |
18t |
3800*1680*3400 |
JK1050 |
Crude fibre 5-8 |
360-450kw |
Φ4-30mm |
|
|
JK1250 |
Crude fibre 8-12 |
550-660kw |
Φ4-30mm |
|
The feature of wood pellet making machine:
1.Vertical die,feeding vertically;
2.No arching of raw material,easy for heating dissipation;
3.Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
4.Indenpendent lubrication;
5.High pressure filtration,clean and unblocked.
6.Independent and frequency changeable cutting device,ensure formation rate of pellets.
Depnding on your production requirments,we can supply you the most technical program.
********Pls give clear indiction of your production requirements /one day or one hour,
What is the material you want to make.**********
Pellet mill is the new energy equipments for all kinds of mateiral:
Its main application:
peanut shell
rice hust
rice hust
branch
trunk
bark,rind,pill
agricultural straw
rubber waste
palm
bamboo
waste plastic
corn stalk
wheat straw
mushroom waste
garbage
dregs
cotton seed dull
Application industry:
biomass energy fuel plants
power plant
wood processing plant
fertilizer plant
chemical plant etc.
About different production line of our customer:

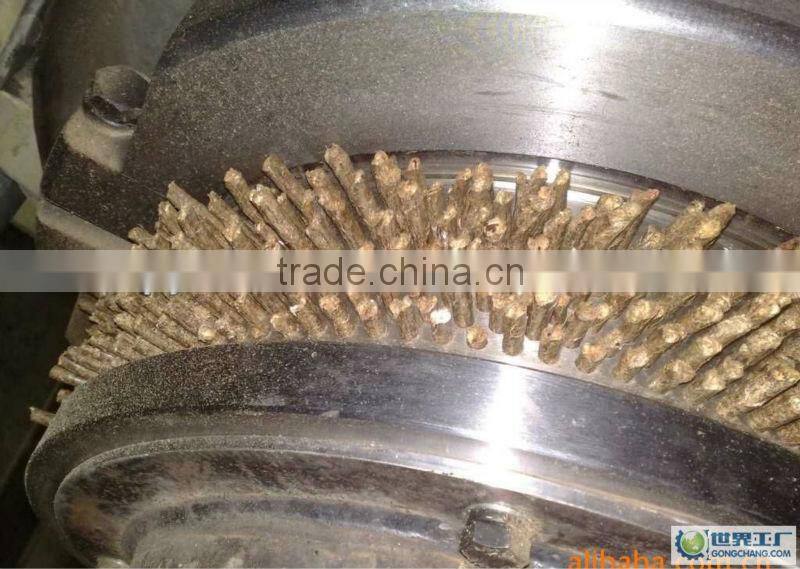

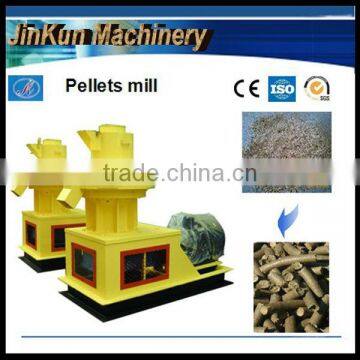

View picture of pellet mill:
About Jinkun machinery:
Shandong Zouping Jinkun Machinery Manufacturing Co.,Ltd,which is extablished in the year 1999, with registered capital of 50,000,000
RMB and total assets 135,000,000 RMB.It occupies a total area of about 122,000m2 and gross building area of 17,000m3. It has more
than 220 employees and over 80 of them are engineering technicians. The transportation is very convenient. To the south of the company is Jinan-Qingdao high-way; To the east of the company is 205 national highway.
If you need,pls contact me
