Specifications
pellet millproduce pellet/briquette
reasonable design
low production power
low maintenance just for die

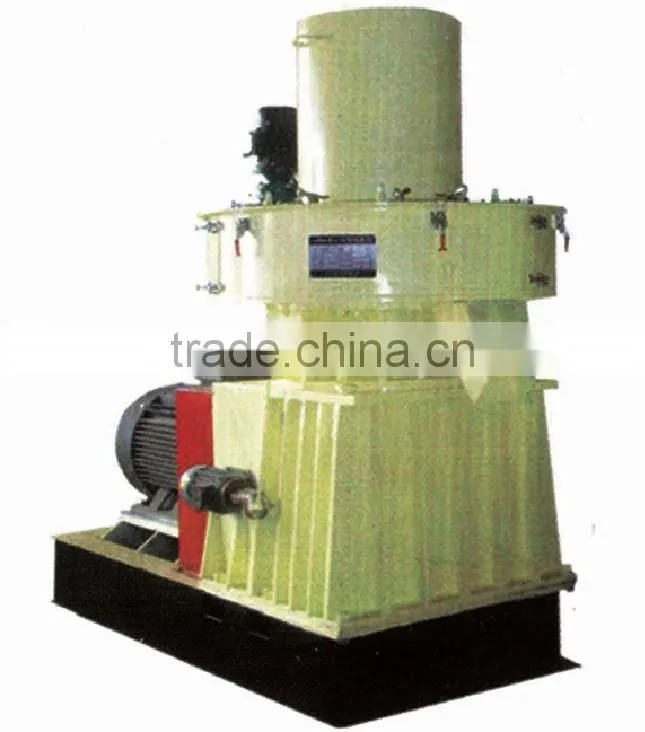

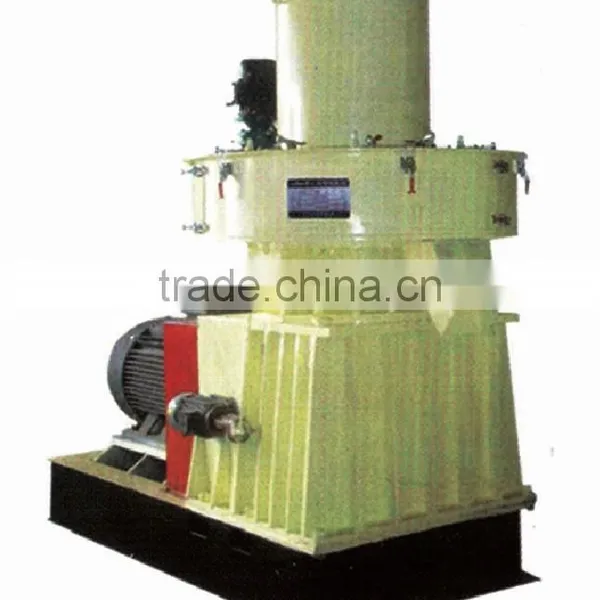

High quality flat die wood pellet mill
Type | Output(kg/h) | Power(kw) | Pellet Size | Weight | Size(mm) |
JK200 | 30-80 | 11-4 | Φ4-6mm | 0.2t | 1300*500*850 |
JK280 | 80-120 | 15-4 | Φ4-6mm | 0.5t | 1400*600*1000 |
JK300 | 100-300 | 30-4 | Φ4-8mm | 0.76t | 1860*670*1600 |
JK2-350A | 300-600 | 37-4 | Φ4.5-10mm | 2.2t | 1900*850*1750 |
JK2-450A | 500-800 | 55 | Φ4.5-10mm | 4.3t | 2300*1100*1900 |
JK3-550A | 1000-1500 | 90-6 | Φ4.5-12mm | 5.5t | 2350*1000*2050 |
JK2-800 | 1500-2500 | 130-160 | Φ4.5-12mm | 6.8t | 3200*1235*2700 |
JK3-1200 | 3000-5000 | 280-320 | Φ4.5-15mm | 19t | 3800*1700*4200 |
Note:
1:All the flat-die machine above are all multifunction that can product ¢ 8mm-¢33mm particles.
2: The price listed above including conveyor and power distribution cabinet the same as the picture, but not including the fee of pulverizer and transportation.
3. We have different types of Biomass Briquetting Machine( Wood Pellet Machine) in stock, please contact me if you need any help, it is my pleasure to offer the most professional suggestions and recommend the most suitable equipments to you in according to the raw materials of yours. The same as the principles we insist on in developing our domestic market, we always believe that it is our duty to help clients to purchase the most suitable equipments but not the most expensive ones.
"Straw Coal" Introduction
"Straw Coal" refers to the fuel which is made through grinding, pressing, increasing density with stalk and solid waste as raw material, for example: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc.
Bio-fuel molding machine is the best equipment to generate revenue from agro-forestry waste and to produce Green energy to protect the global environment. The awareness of using Eco-friendly & Non-conventional Bio-coal/Bio-fuel is increasing day-to-day with the increasing of the conventional fuel cost.
"Straw Coal" Features:
Straw coal is a kind of new-style energy with renewable, environmental protection, biomass clean and low cost. It is widely used of heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental protection as well as the higher costs of industry fuel, and it also can be used as the fodder with high nutrition released under high temperature after briquetting and convenient to store.
After forming the straw charcoal, the fuel boast smaller size with greater weight, high burning rate , easy to store and convenient to transport, and its size is only equal to 1 / 30 of the original straw and its density is 0.9-1.4g / cm3, and its calorific value can reach about 3500-5500 kilocalorie, so it can be called as high-volatile solid fuels.
General Survey of biomass briquetting machine
1. Bio-fuel Briquetting Machine is a full set of mechanized production equipment. It can convert biomass raw material and solid waste into energy fuel with high density. It is a special equipment of compressing such materials into blocks.
2.This equipment is suitable for various kinds of materials whose moisture content is less than 30%.The machine is fully automatic electric heating, and can adjust the humidity of materials to deal with problems of congestion and not forming.
3.Straw-fuel Briquetting Machine is widely used in household stove, heating furnace, hot water boilers , industrial boilers, etc.
4. The machine has advantage of simple structure, easy operation, high automation, and less labor.
5. Well adaptable: it could put all kinds of raw material into molding machine (If larger, crusher should be used).
6. High Automation: 3 workers are enough to operate all the process.
7.The wide scope of raw material: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc. All can be used as raw material.
Character of Finished Products
1.Straw-coal is a kind of new-style energy with renewable, environmental protection, high efficiency and low cost.
2.It is widely used of heating, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental pollution as well as the higher costs of industry fuel .
3.The finished products can replace coal. For the advantage of their great density,the straw fuel have much more calorific value than the same quantity of firewood. They can be used instead of coal or wood in domestic solid-fuel stoves as well as in industrial furnaces.
