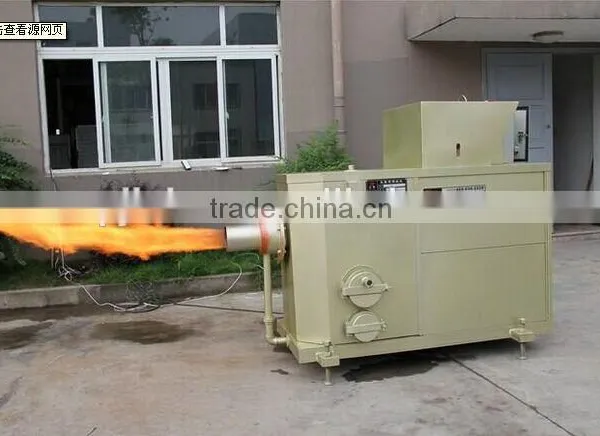

High Combustion Efficiency Wood Pellet Biomass Burner for Sale

High combustion efficiency wood pellet biomass burner for sale

1.Introduction:

Our biomass pellet burner adopts the most mature combustion technology and semi-gasification compound combustion technology, it has the features of reasonable structure, automatic feeder, fully combustion rate, high thermal efficiency, pollution-free, low- emission, compact structure, easy for installation, small occupied area, low operation cost, etc., which can replace other fuel fired burner.

2.Main Features:

l  Energy efficient and high efficiency

l  Clean combustion technology and low-carbon environmental protection

l  Simple operation and convenient maintenance

l  Compact structure and attractive appearance.

 3.Main parameters of burner:

Rated capacity: 480*10⁴Kcal/h

Grate type:Circular type chamber combustion

Control mode:PLC intelligent automatic control

Burn-out efficiency:≥96%

Pellet consumption amount: 400-1200Kg/h

Rated power: 240V

4.Automatic PLC control system:

Unique man-machine conversation function, large size intelligent touch screen, this system include:

Automatic ventilation feature for combustion chamber;

Automatic feeding system;

Automatic ignition system;

Ignition micro blow-in procedure;

Blow-in and induced air joint procedure;

Strong and soft fire self-regulation procedure;

Safe operation interlocking protection procedure;

Halt protection procedure;

Various alarm procedures.

 5.Application:

The biomass pellet burner is applicable for spray coating line, steam boiler, hot water boiler, organic heat carrier boiler, die-casting, industrial furnace, drying equipment, greenhouse and other energy-saving renovation project.

 6.Technical Data:
