Application:

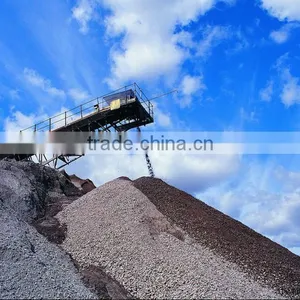

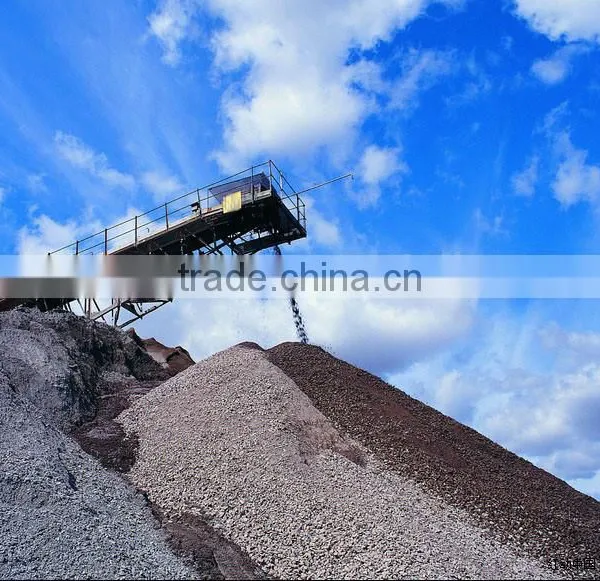

Belt conveyor is an ideal high-efficiency continuous conveyor and widely used in coal, transportation, water, electricity, mineral processing, chemical, food, metallurgy and other industries, which is able to improve the production efficiency.
Advantages:
1, The length can be adjusted according to users’ needs. It also can be used as a series by connecting each other to make up for the disadvantages of production environment. At the same time, it can reduce the use of labor force.
2, More automotive and easily controlled centralized. Besides, belt conveyor can adjust the transfer speed and the quantity of flow.
3, Because of its simple structure and light rack, it is easy for disassembling and assembling to make the dairy maintenance convenient.
4, Low investment cost. Belt conveyor has strong universality and can be used in many industries.
5, Belt conveyor can be extended and shortened according to the working needs and can adjust the driving equipment to meet the production needs.
Conveyor width(mm) |
Conveyor length(m)/power(kw) |
Conveyor speed(m/s) |
Conveying capacity(t/h) |
||
400 |
≤12/1.5 |
12-20/2.2-4 |
20-25/4-7.5 |
1.3-1.6 |
40-80 |
500 |
≤12/3 |
12-20/4-5.5 |
20-30/5.5-7.5 |
1.3-1.6 |
60-150 |
650 |
≤12/4 |
12-20/5.5 |
20-30/7.5-11 |
1.3-1.6 |
130-320 |
800 |
≤6/4 |
6-15/5.5 |
15-30/7.5-15 |
1.3-1.6 |
280-540 |
1000 |
≤10/5.5 |
10-20/7.5-11 |
20-40/11-22 |
1.3-2.0 |
430-850 |
1200 |
≤10/7.5 |
10-20/11 |
20-40/15-30 |
1.3-2.0 |
655-1280 |
About us
Gongyi Xiaoyi Hongyun machinery factory is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, production waste processing line, preparation equipment and other products. And our company is responsible for a package service including the buyers’ process design, on-site construction guidance, installation and debugging of the equipment, training technical persons and operators. Three guarantees, one year warranty, long-term supply of components.
