Quartz sand crusher used in mining with low price
- 100 Set / Sets per Month
- Qingdao Shanghai Dalian Tianjing Lianyungang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Hongyun | Model Number | VSI8518 | |
| Voltage | 380v | Power(W) | 180kw | |
| Dimension(L*W*H) | 4140*2280*2425mm | Weight | 14.5t | |
| Certification | CE,ISO | Warranty | One year warranty | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Quartz sand crusher has export standard package,also can do package as customers' requirements.
Product Description

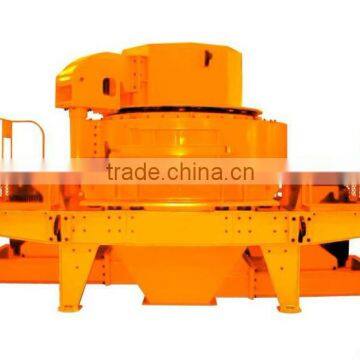

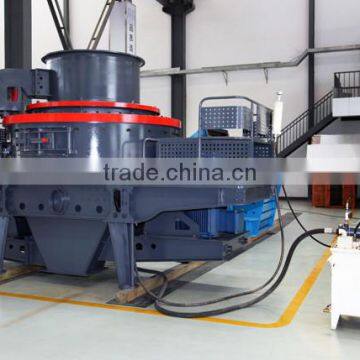

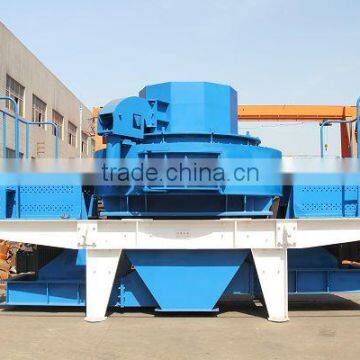

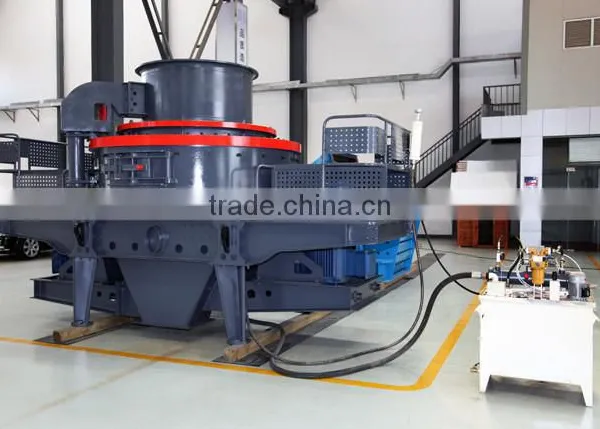

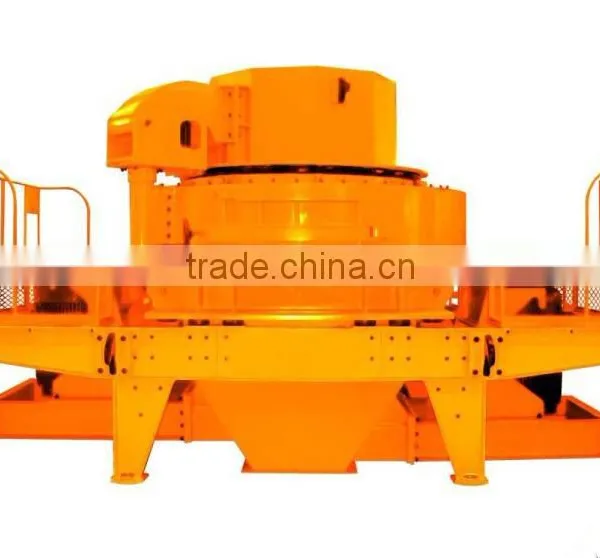

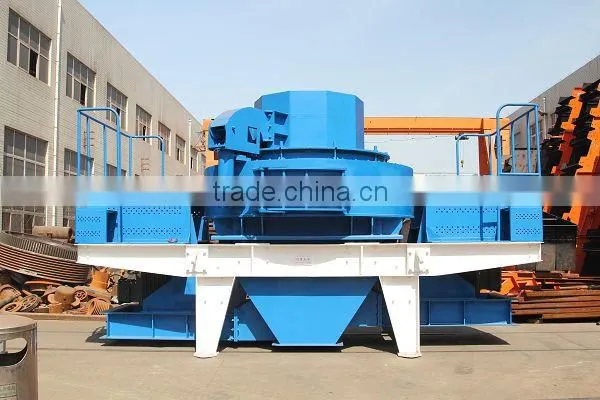

Quartz sand crusher
Quartz sand crusher is the advanced crushing equipment developed by Hongyun Factory based on the present situation about sand making equipments’ application in our country. It is mainly composed of pedestal, holder, vortex crushing cavity, impeller, distributor, main shaft and other parts. Sand making machine is the indispensable fine devoice in the present sand production industry. Using the centrifugal force and impact force which are brought by itselves’ high speed running, the sand making machine can achieve crushing effect to satisfy the sand making industry’s demand of materials’ granularity and size. Besides be used in sand making industry, it can also used to crush harder ore material. It is an ideal crushing equipment which often be used in mineral processing, ore milling, metallurgy, chemical engineering, power industry, water resource industry and other different industries.
Technical parameters
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
Capacity | Cascade and Center Feeding | 120-180 | 200-260 | 300-380 | 450-520 |
Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
Feeding Size(mm) | Soft Material | 35 | 40 | 45 | 50 |
Hard Material | 30 | 35 | 40 | 45 | |
Rotation Speed | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Power of the Double Motors | 110 | 180 | 264 | 400 | |
Overall Dimension | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
Weight | 11.8 | 14.5 | 17.8 | 25.6 | |
Power Supply | 380V,50Hz | ||||
Vibrating Sensor | Inspection scope:0.1-20mm/s can be adjusted continuously | ||||
Lubrication hydraulic station | Power of Double Oil Pump | 2×0.25Kw | |||
Overall dimension | 820×520×1270 | ||||
Power of Oil-box Heater | 2Kw
| ||||
Advantages:
- Wide application. In addition to crushing gravel materials with remarkable effect, it also has good effect on harder ore material.
- High comprehensive utilization value. It can be applied in the different industries.
- Vortex crushing chamber and the impeller can form self circulatory system of internal airflow to provide a natural ventilation for using the device.
- Using the distributor can improve the performance of the equipment, because it can make the conveying of material more continuous, timing and quantitative.
- According to the overall usage of sand making machine, it can be deployed dry oil pump to provide oil for bearing parts regularly.
- With double motor drive, the gearing can run smoothly.
- With the wear-resisting plate of special material in the crushing cavity of equipment, it can improve usability and wear resistance of the core crushing area.
- Holder has detachability. Users can disassemble or assemble it based on the different workplaces.
