Home > Products > Vibrating screen > Rotary Vibrating Screen

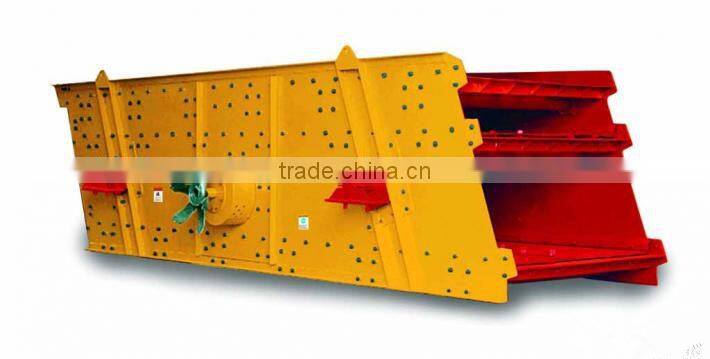

Rotary Vibrating Screen
- Qingdao Shanghai
- Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Linear | |
| Application | Other, sand, construction, building materials, pharmaceutical industry | Place of Origin | Henan, China | |
| Brand Name | HongYun | Model Number | 3YK1236 | |
| Voltage | 110v/220v/ 380v | Power(W) | 18.5kw | |
| Dimension(L*W*H) | 6230*2210*2060mm | Weight | 8700kg | |
| Certification | CE | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
standard export wooden case or container
Product Description
Ratory vibrating screen Product Description:
Ratory vibrating screen is a kind of equipment applied more widely, mainly composed of vibrator, screen box, bearing or suspension, transmission and so on.
Ratory vibrating scree uses the strong vibratory force of itselves’ running to make the material do vibrating and throwing sports on the screen so as to achieve the using effect of screening.
Ratory vibrating screen can adjust the size of the screen according to the particle size of materials, thus meet the screen demand of different materials. In the process of the use of the equipment, we can strengthen screening accuracy according to the user's demand, improve the screening effect of the material though thickening screen mesh layer to achieve uniform specifications of screening.
Ratory vibrating scree has widely applicable scope, and can be used with different equipments.
Rotary vibrating screen Parameters:
| Model | Layer | Sieve Area (m2) | Mesh Size (mm) | Maximum Feeding Size (mm) | Capacity (m3/h) | Vibration Power (r/min) | Double Amplitude (mm) | Power(kw) | Screen Inclination (Angle) | Sieve Size (mm) | Weight (kg) | Overall size (L×W×H)(mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4050×1860×870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210×1610 |
Packaging & Shipping
Packing and Shipping:
Packing detail: standard in container, spared parted in wood case.
Delivery Detail : Good in stock1-3 days, OEM5-7days.
1. Working principle:
Rotary Vibrating Screen is a vibration equipment that using vibration motor as its vibration source . Vibration exciting force enables the material on screen surface to the forward in a straight line parabolic way in order to screening.
2.Application:
Rotary Vibrating screen has widely applicable scope, and can be used with different equipments. Now it is widely used in sand, construction, building materials, pharmaceutical industry, agriculture, food and other various industries. And its using effect can achieve screening precision of different industries.
3.Features:
1. Adjustable and simple structure
2. high efficiency.
3. Large capacity.
Rotary Vibrating screen working:
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme. Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years. We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
