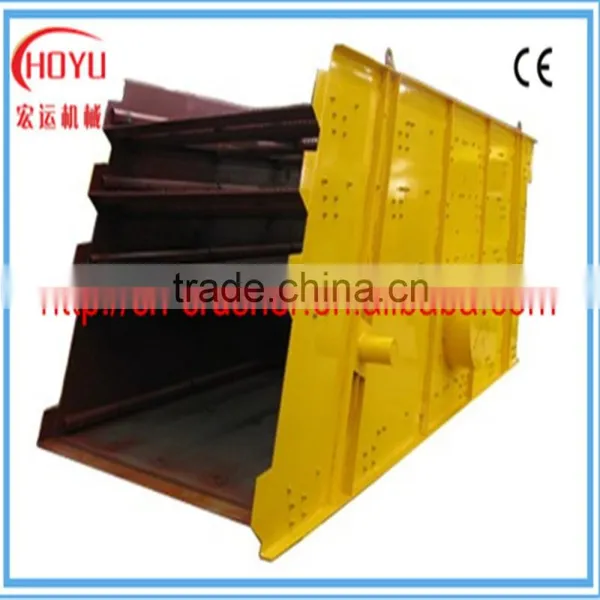

Stone vibrating screen Product Description:
Stone vibrating screen is a kind of equipment applied more widely, mainly composed of vibrator, screen box, bearing or suspension, transmission and so on. It uses the strong vibratory force of itselves’ running to make the material do vibrating and throwing sports on the screen so as to achieve the using effect of screening. It can adjust the size of the screen according to the particle size of materials, thus meet the screen demand of different materials. In the process of the use of the equipment, we can strengthen screening accuracy according to the user's demand, improve the screening effect of the material though thickening screen mesh layer to achieve uniform specifications of screening. It has widely applicable scope, and can be used with different equipments.
Stone vibrating screen Parameters:
| Model | Layer | Sieve Area (m2) | Mesh Size (mm) | Maximum Feeding Size (mm) | Capacity (m3/h) | Vibration Power (r/min) | Double Amplitude (mm) | Power(kw) | Screen Inclination (Angle) | Sieve Size (mm) | Weight (kg) | Overall size (L×W×H)(mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4050×1860×870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6330 | 5120×2210×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6800 | 5360×2210×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500×4500 | 7800 | 5930×2210×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500×4800 | 6980 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500×4800 | 7700 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500×4800 | 8700 | 6230×2210×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800×4800 | 9080 | 5420×2550×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800×4800 | 9600 | 5660×2550×1780 |
| 4YK1854 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800×4800 | 11100 | 6290×2550×2160 |
Stone vibrating screen Packing and Shipping:
Packing detail: standard in container, sparted parted in wood case.
Delivery Detail :Good in stock 1-2 days, OEM5-7days.
1. Working principle:
Linear Vibrating Screen is a vibration equipment that using vibration motor as its vibration source . Vibration exciting force enables the material on screen surface to the forward in a straight line parabolic way in order to screening.
2.Application:
Linear vibrating screen has widely applicable scope, and can be used with different equipments. Now it is widely used in sand, construction, building materials, pharmaceutical industry, agriculture, food and other various industries. And its using effect can achieve screening precision of different industries.
3.Features:
1. Adjustable and simple structure
2. high efficiency.
3. Large capacity.
The linear vibrating screen working:
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
