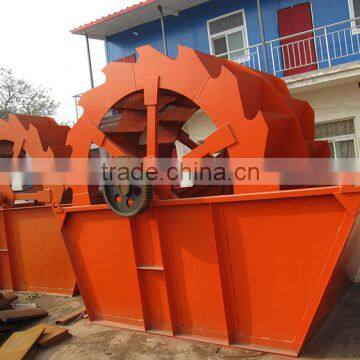

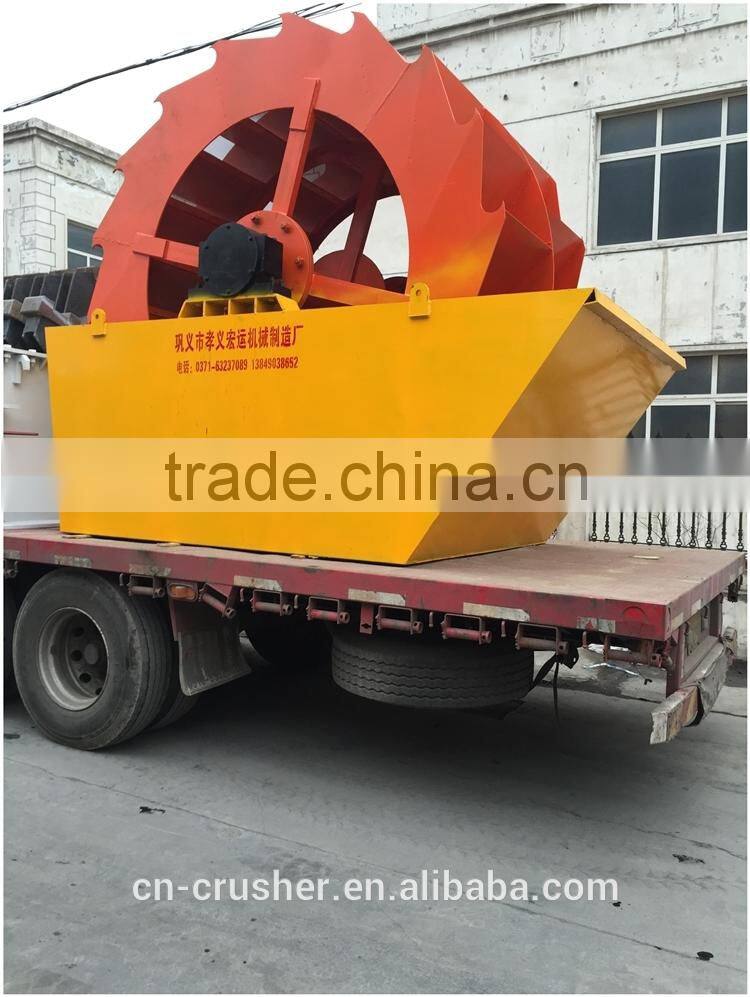

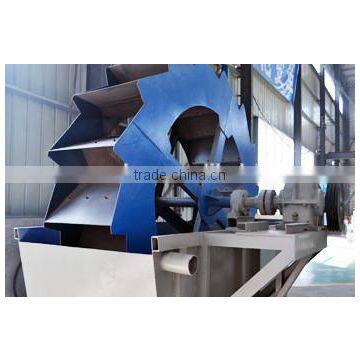

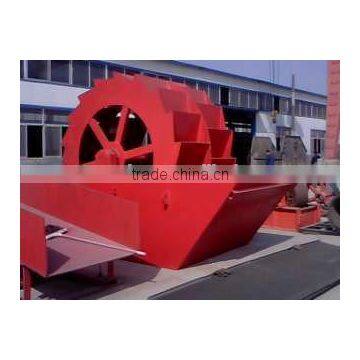

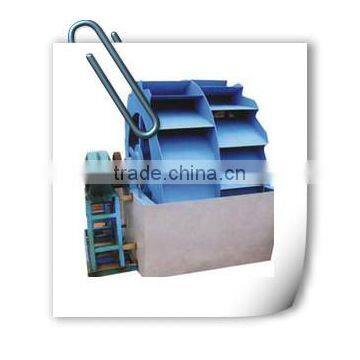

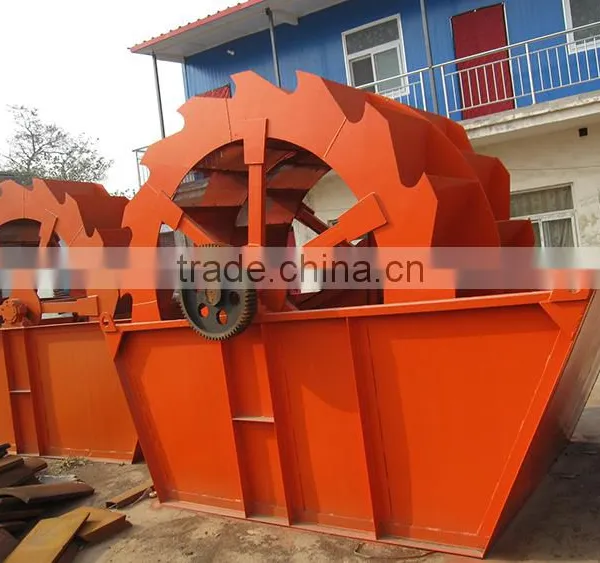

120-200 t/h XSD series sand washing machine with best after sale service
Sand washer is designed for sand washing work. It can clean the silver sand efficiently and it is the most popular device in washing sand. The most important is that it can wash a variety of sand materials and the effect is all very well.
It is composed of gear, decelerator, bracket, setting chamber, impeller, belt pulley, electrical machinery and some important components. It not only can separate the contamination from the surface of the sand, but also can destroy the water vapor layer which on the outside of the sand material. That is convenient for dehydration in the next step.
1, Strong ability to work, strong adaptability, strong throughput
2, Adopt wear resistant material, high usability of the components, long service time
3, High washing efficiency, reducing wastage in the process, meet high-level sand materials’ using standard
4, Simple structure, stable operation, easy to operate, new worker can quickly get started, safe and reliable
5, Sealed bearing, avoiding the main transmission parts contract with material and water, reducing the breakdown of components and the risk of rust
6, A new kind of sealing structure and fully enclosed gear to make the entire device more stabilization, high efficiency, save energy and durable in the process
7, In the process, sand washer can destroy the water vapor layer to reach the double effect of cleaning and dewatering.
8, After washing, the material can achieve the classification of granularity and product specification
Model | Power (kw) | Dimension (mm) | Weight (t) | Capacity (t/h) | Bucket wheel diameter (mm) | Speed (r/min) |
XS2600 | 5.5 | 3520*2390*2690 | 5.6 | 20-50 | 2600 | 1-2 |
XS3000 | 7.5 | 3820*2640*3200 | 8.1 | 50-100 | 3000 | 0.8-1.5 |
XS3600 | 11 | 4420*2930*3800 | 9.9 | 120-200 | 3600 | 0.8-1.2 |
Note: This specification is just reference, any change are subject to the products.
Gongyi Xiaoyi Hongyun machinery factory is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, construction waste processing production line, preparation equipment and other products.
1. one package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators.
2.One year warranty.
3.Long-term supply of components.
our factory
customers visit
