Home > Manufacturing & Processing Machinery > Mining Machinery > Sand Washer > Popular Sand Washer Machine, Working More Smoothly, More Cheaper That Others
Popular Sand Washer Machine, Working More Smoothly, More Cheaper That Others
US$ 14,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
7.5kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Feedback Machine for Our Customer Rotary Dryer Machine/sand Dryer Machine/dryer Machine .comUS$ 48,000 - 50,000MOQ: 1 Set -
Best Quality Rotary Sand Dryer Machines --The Necessary Equipment in Building Material FieldUS$ 48,000 - 50,000MOQ: 1 Set
-
Sign in Best Supplier From China Rotary Dryer Machine/Chicken Manure Dryer Machine With CE CertificateUS$ 48,000 - 50,000MOQ: 1 Set
-
Best Feedback Machine for Our Customer Sand Dryer Machine/ Dryer Machine .comUS$ 48,000 - 50,000MOQ: 1 Set
-
Grain Dryer MachineUS$ 15,000 - 18,000MOQ: 1 Set
Condition
New
Motor Type
AC Motor
Power(W)
7.5kw
Capacity(t/h)
50-100
Place of Origin
Henan, China
Brand Name
Hongyun
Model Number
3000
Dimension(L*W*H)
3820*2640*3200mm
Weight
8100kg
Certification
CE ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

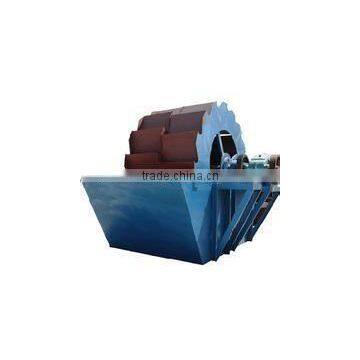

Sand washer
Sand washer is designed for sand washing work. It is composed of gear, decelerator, bracket, setting chamber, impeller, belt pulley, electrical machinery and some important components. It not only can separate the contamination from the surface of the sand, but also can destroy the water vapor layer which on the outside of the sand material. That is convenient for dehydration in the next step. It can clean the silver sand efficiently and it is most popular device in washing sand. The most important is that it can wash a variety of sand material and the effect is all very well.
Advantages:
1, Strong ability to work, strong adaptability, strong throughput
2, Adopt wear resistant material, high usability of the components, long service time
3, High washing efficiency, reducing wastage in the process, the effect of washing is well, meet high-level sand materials’ using standard
4, Simple structure, stable operation, easy to operate, new worker can quickly get started, safe and reliable
5, Sealed bearing, avoiding the main transmission parts contract with material and water, reducing the breakdown of components and the risk of rust
6, A new kind of sealing structure and fully enclosed gear to make the entire device more stabilization, high efficiency, save energy and durable in the process
7, In the process, sand washer can destroy the water vapor layer to reach the double effect of cleaning and dewatering.
8, After washing, the material can achieve the classification of granularity and product specification
Model |
XS2600 |
XS3000 |
XS3600 |
Screw Dimension(mm) |
2600 |
3000 |
3600 |
Rotate Speed(r/min) |
1-2 |
0.8-1.5 |
0.8-1.2 |
Capacityt/h) |
20-50 |
50-100 |
120-200 |
Power(kw) |
5.5 |
7.5 |
11 |
Weight(kg) |
5600 |
8100 |
9900 |
Dimension(L*W*H)(mm) |
3520×2390×2690 |
3820×2640×3200 |
4420×2930×3800 |
