Stone Crushers

Name: Stone Crushers
Brand: Hongyun
SKU: 141048456
Availability: InStock

US$ 39,000 - 41,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Counterattack crusher

Application:

Sand making, mineral processing, ore milling, fireproofing, etc. etc.

Contact Supplier Request Quote Chat Now

Gongyi Xiaoyi Hongyun Machinery Factory

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou Shenzhen Dalian Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Counterattack crusher

Application Sand making, mineral processing, ore milling, fireproofing, etc. etc.

Motor Type AC Motor

Power(W) 132000

Capacity(t/h) 80-160

Place of Origin Henan, China

Brand Name Hongyun

Model Number PF-1214

Dimension(L*W*H) 2582*2403*2809 (mm)

Weight 22 t

Certification CE, ISO

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Stone crushers

Application

It can be suitable for fine crushing work of production line for sand, stone and mineral processing. At the same time, it is also involved in the coal, metallurgy, chemical, refractory and other industries.

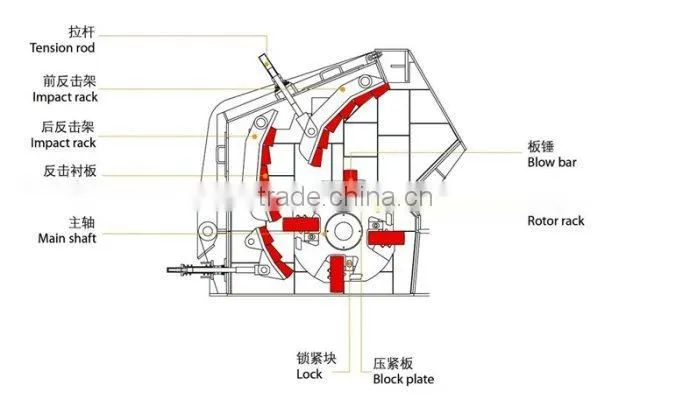

Working principle

The counterattack crusher mainly uses impact force to do main crushing work. And it achieves the demanding discharging requirement of granularity and shape by using the particular mode of operation.

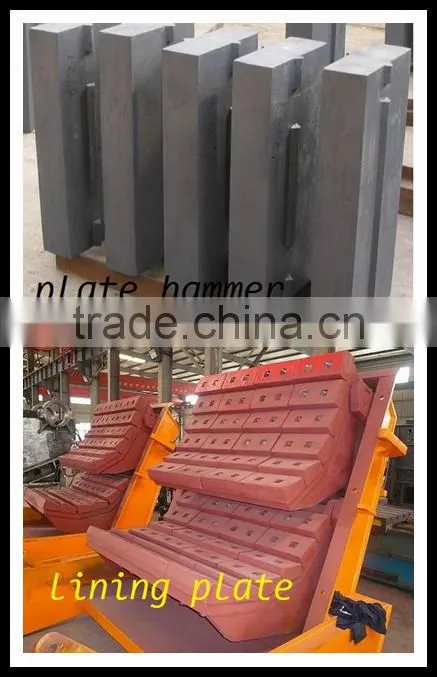

Note: Plate hammer: It can crush 30,000-40,000 m3 cobbles all its service life.

Lining plate: It can crush 100,000 m3 cobbles all its service life.

Advantages

1,Main crushing tools such as plate hammer and counterattack plate are made from wear-resisting material with super wear-resistant capacity;

2,make the device to product discharging materials with appropriate granularity and shape. Moreover the unit power consumption is low and the usability is high;

3,Selective crushing effect. It can crush materials into cubes, and it is important in industries with demanding requirement to materials;

4, Novel designed. Use crushing technology with new concept to meet materials’ crushing demands of different sizes.

Technical parameters

Model	Motor type	Motor power (kw)	Dimension (mm)	Weight (t)	Capacity (t/h)	Feed opening (mm)	Max feeding (mm)
PF-1007	Y250M-6	37	180016001800	9.5	35-50	400*730	300
PF-1010	Y315S-6	75	234020072500	14	50-80	400*1080	350
PF-1210	Y315L1-6	110	258220532809	17	70-120	400*1080	350
PF-1214	Y315L2-6	132	258224032809	22	80-160	400*1430	350
PF-1315	Y2-355M2-6	200	293027613053	26	90-220	860*1520	500

About Hongyun

Gongyi Xiaoyi Hongyun machinery factory is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, construction waste processing production line, preparation equipment and other products.

Our Services

1.One package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators.
2.One year warranty.
3.Long-term supply of components.

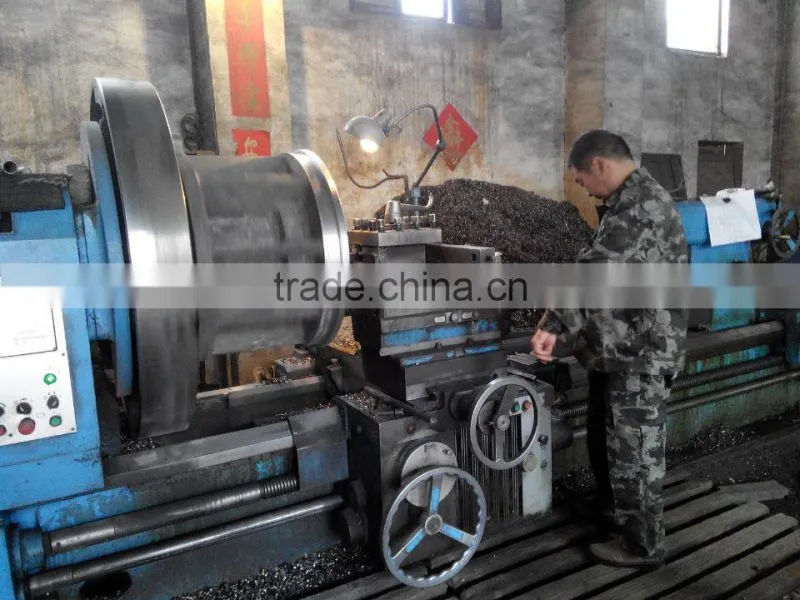

our factory

customers visit
